Name: LAPP 0036940/500 Drag chain cable 0.25 mm² 500 m
Brand: LAPP
SKU: 3363731

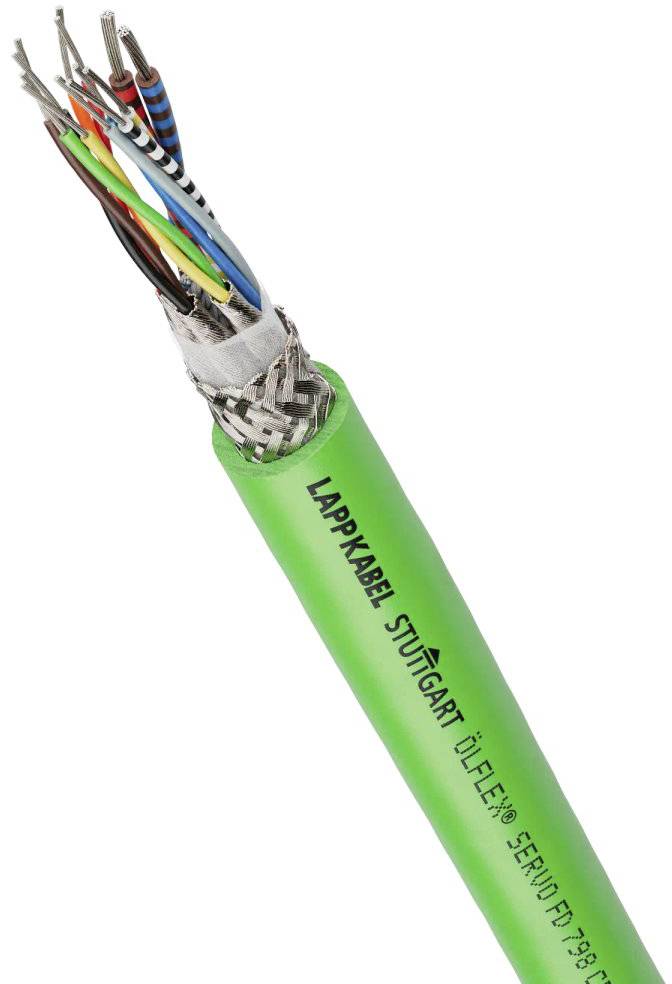

Green cable with metal braiding and multiple coloured internal cables, labelled 'LAPP KABEL STUTTGART'.

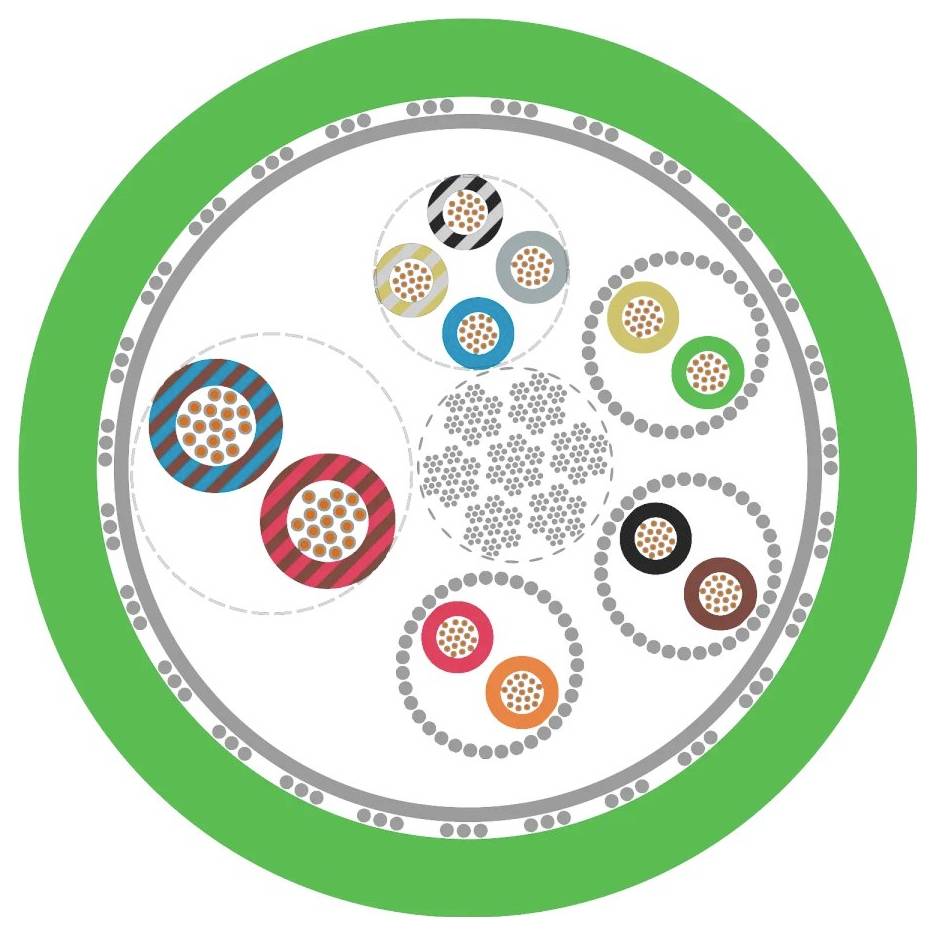

'Illustration of a cable cross-section, showing various coloured conductor bundles and metal screens, surrounded by a green outer sheath.'

1/2

Product type

Drag chain cable

Cross section (each core)

0.25 mm²

Cross section

0.25 mm²

Outside Ø

9.3 mm

Content

500 m

Datasheet (PDF)

Unavailable

Sales and shipping:

Conrad ElectronicTerms & Conditions

Report legal concerns

Technical specifications

Product type: Drag chain cable

Cross section (each core): 0.25 mm²

Cross section: 0.25 mm²

Outside Ø: 9.3 mm

Content: 500 m

Nominal voltage: 30 V

Manufacturer part #: 0036940/500

Type: ÖLFLEX® SERVO FD 798CP (6x2x0,25)

: 0.25 mm²

: Colour

: 30 V

: Green

: Copper

: Polyurethane (PUR)

: -50-90 °C

: 9.3 mm

: FALSE

: FALSE

: FALSE

: Tinned

: Other

: 69.8 mm

: 69.8 mm

: 37.2 mm

: Polypropylene (PP)

: Other

: Round

UKCA: not relevant

Documents & Downloads

Datasheet

Datasheet 3363731 LAPP 0036940/500 Drag chain cable 0.25 mm² 500 m

User & Safety Instructions

User & Safety Instructions 3363731 LAPP 0036940/500 Drag chain cable 0.25 mm² 500 m

Description

ÖLFLEX® SERVO FD 798CP (6x2x0.25) encoder cable; (6x2x0.25); extended line; 30 V; PUR; Shielded; UL recognized; Drag chain

This text is machine translated.

Description

ÖLFLEX® SERVO FD 798CP (6x2x0.25) encoder cable; (6x2x0.25); extended line; 30 V; PUR; Shielded; UL recognized; Drag chain

This text is machine translated.
