Name: LAPP 11139617/100 Data transfer cable UNITRONIC® FD CP plus A 2 x 0.34 mm² Grey 100 m
Brand: LAPP
SKU: 3351217

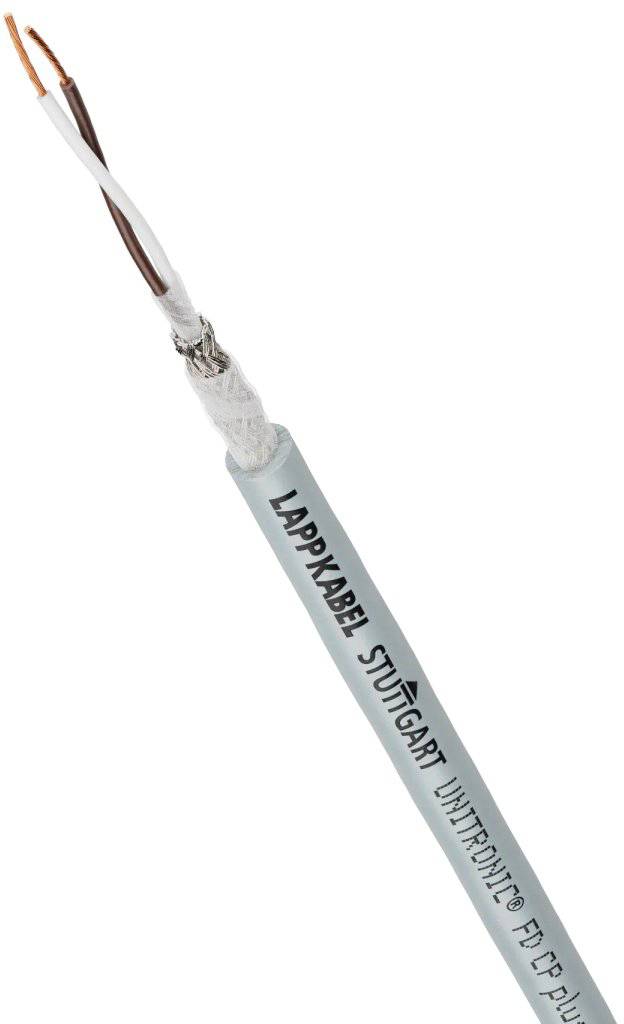

LAPP 11139617/100 Data transfer cable UNITRONIC® FD CP plus A 2 x 0.34 mm² Grey 100 m-0

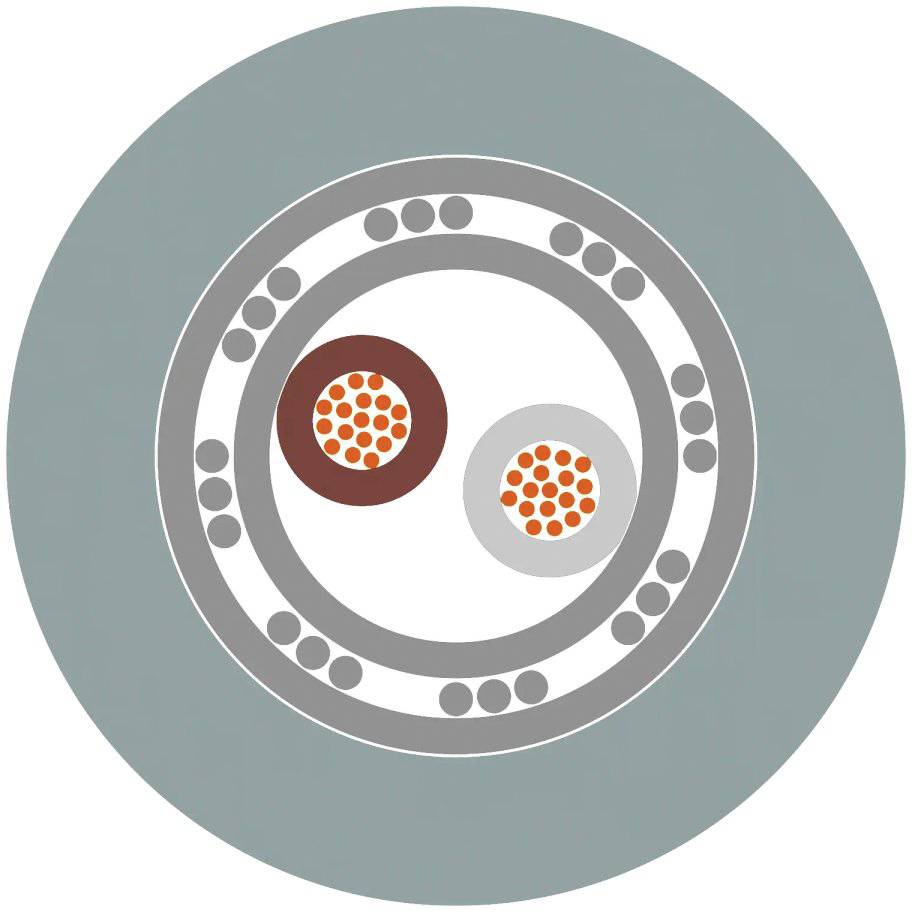

A cross-section of a coaxial cable with two copper cores of different sizes, surrounded by insulation and protective layers.

1/2

Image similar

Product type

Data transfer cable

No. of leads

2 x

Cross section (each core)

0.34 mm²

Cable features

Suitable for drag chains

Cable type

UNITRONIC® FD CP plus A

Datasheet (PDF)

Unavailable

Sales and shipping:

Conrad ElectronicTerms & Conditions

Report legal concerns

Technical specifications

Product type: Data transfer cable

Cable type: UNITRONIC® FD CP plus A

No. of leads: 2 x

Cross section (each core): 0.34 mm²

Cross section: 2 x 0.34 mm²

Cable features: Suitable for drag chains

Outside Ø: 5 mm

Factory colour: Grey

Content: 100 m

Halogen-free: No

Shielded: Yes

Manufacturer part #: 11139617/100

Insulation material: Polyurethane

Min. temperature range (fixed installation): -40 °C

Max. temperature range (fixed installation): 80 °C

Type: UNITRONIC® FD CP plus A 2X0,34

: TRUE

: 0.34 mm²

: Polyolefin

: Colour

: Grey

: Copper

: Polyurethane (PUR)

: -40-+80 °C

: 2

: 5.1 mm

: FALSE

: FALSE

: Bare

: 38.3 mm

: 20.4 mm

: Other

: Other

: Round

UKCA: not relevant

Documents & Downloads

Datasheet

Datasheet 3351217 LAPP 11139617/100 Data transfer cable UNITRONIC® FD CP plus A 2 x 0.34 mm² Grey 100 m

User & Safety Instructions

User & Safety Instructions 3351217 LAPP 11139617/100 Data transfer cable UNITRONIC® FD CP plus A 2 x 0.34 mm² Grey 100 m

Description

UNITRONIC® FD CP plus A 2x0.34 Low frequency data cable; 2x0.34; Wire color code: DIN 47100; PUR; shielded; UL recognized; drag chain

This text is machine translated.

Description

UNITRONIC® FD CP plus A 2x0.34 Low frequency data cable; 2x0.34; Wire color code: DIN 47100; PUR; shielded; UL recognized; drag chain

This text is machine translated.
