Name: LAPP 2170591/1000 Network cable ETHERLINE® PN Green 1000 m
Brand: LAPP
SKU: 3350875

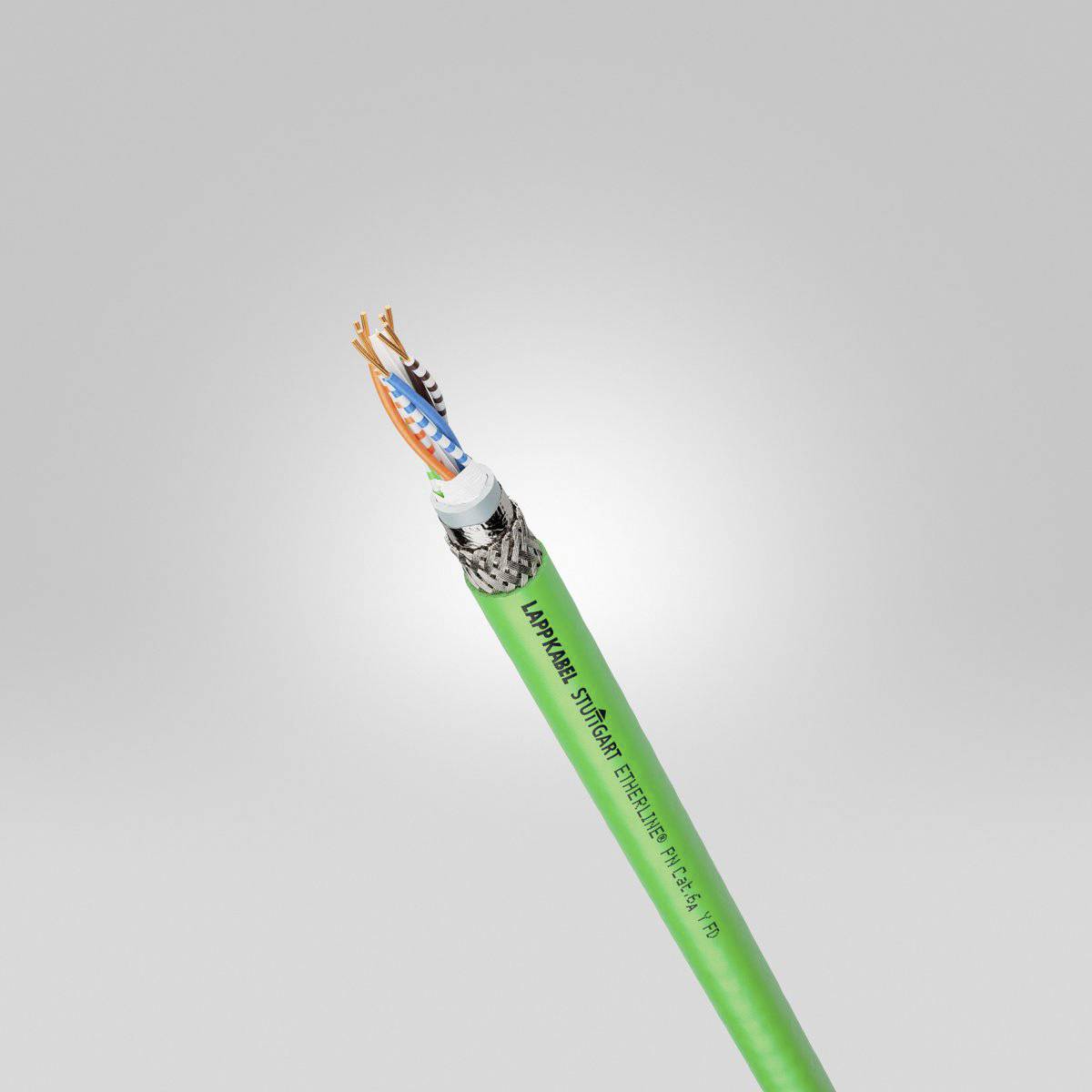

A green network cable with exposed wires at one end, used for Ethernet connections or network installations.

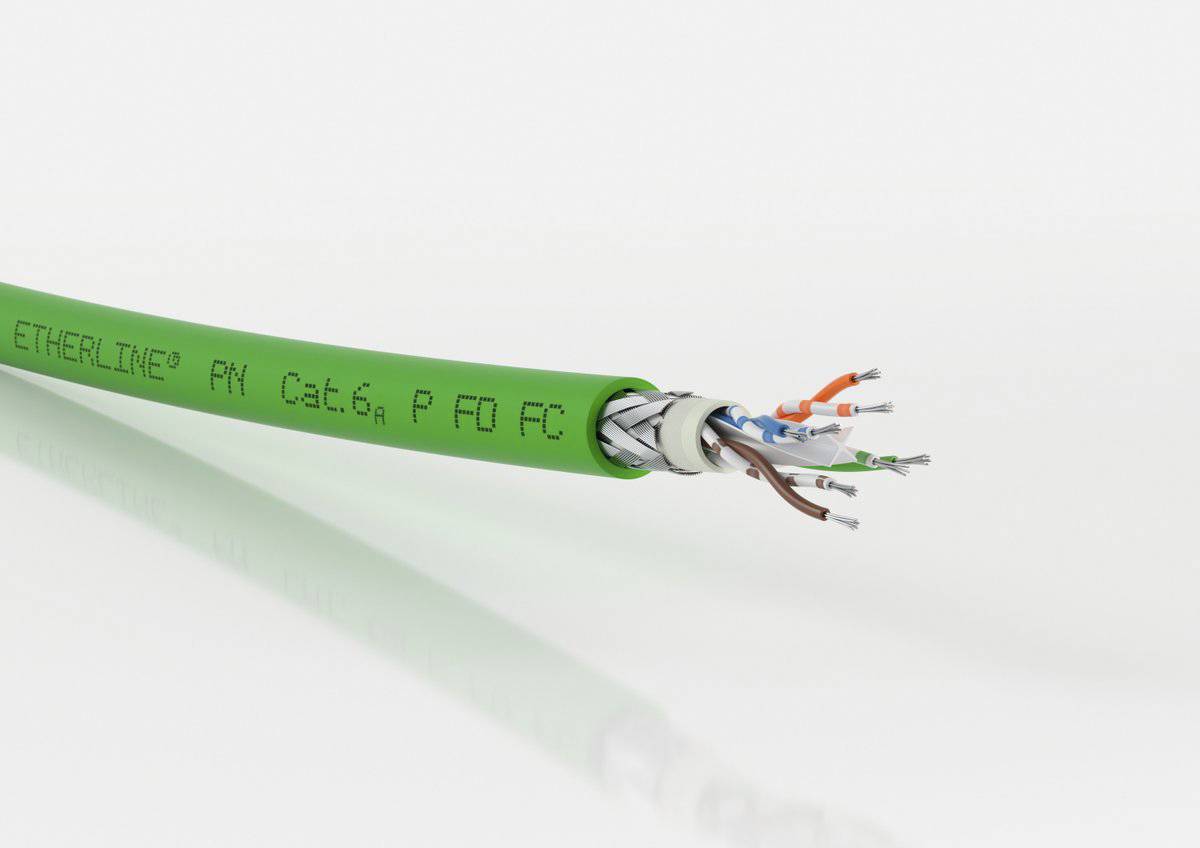

An open-ended green Ethernet cable with exposed inner conductors of different colours. Text on cable: 'ETHERLINE PN Cat.6a P FD FC'.

1/2

Image similar

Product type

Network cable

No. of leads

8 x

Cable features

Suitable for drag chains

Cable type

ETHERLINE® PN

Twisted pair cabling (part 1)

Yes (1)

Datasheet (PDF)

Unavailable

Sales and shipping:

Conrad ElectronicTerms & Conditions

Report legal concerns

Technical specifications

Product type: Network cable

Cable type: ETHERLINE® PN

No. of leads: 8 x

Twisted pair cabling (part 1): Yes (1)

Twisted pair cabling (yes/no): Yes (1)

Cable features: Suitable for drag chains

Outside Ø: 8 mm

Factory colour: Green

Content: 1000 m

Bend radius (no. of ODs for fixed installation): 4

Bend radius (no. of ODs for flexible installation): 15

Sold per metre: Yes

Halogen-free: No

Shielded: Yes

Manufacturer part #: 2170591/1000

Insulation material: Polyvinyl chloride

Min. temperature range (flexible installation): -40 °C

Max. temperature range (flexible installation): 80 °C

Min. temperature range (fixed installation): -40 °C

Max. temperature range (fixed installation): 80 °C

Max. length sold by the metre: 1000 m

Type: ETHERLINE® PN Cat. 6A Y FD FC

: TRUE

: Other

: Green

: Copper

: Polyvinyl chloride (PVC)

: -40-80 °C

: 8

: FALSE

: FALSE

: 8.9 mm

: FALSE

: TRUE

: Bare

: Other

: 133.5 mm

: 35.6 mm

: Other

: Other

: Round

: FALSE

UKCA: not relevant

Documents & Downloads

Datasheet

Datasheet 3350875 LAPP 2170591/1000 Network cable ETHERLINE® PN Green 1000 m

User & Safety Instructions

User & Safety Instructions 3350875 LAPP 2170591/1000 Network cable ETHERLINE® PN Green 1000 m

Description

ETHERLINE® PN CAT. 6A Y FD FC Ethernet cable; drag chain, flexible; PROFINET® application: Type C; CAT.6A; SF/UTP; PVC; green

This text is machine translated.

Description

ETHERLINE® PN CAT. 6A Y FD FC Ethernet cable; drag chain, flexible; PROFINET® application: Type C; CAT.6A; SF/UTP; PVC; green

This text is machine translated.
