Name: LAPP 2170922/500 Network cable ETHERLINE® T1 PN FLEX T Y Green 500 m
Brand: LAPP
SKU: 3350925

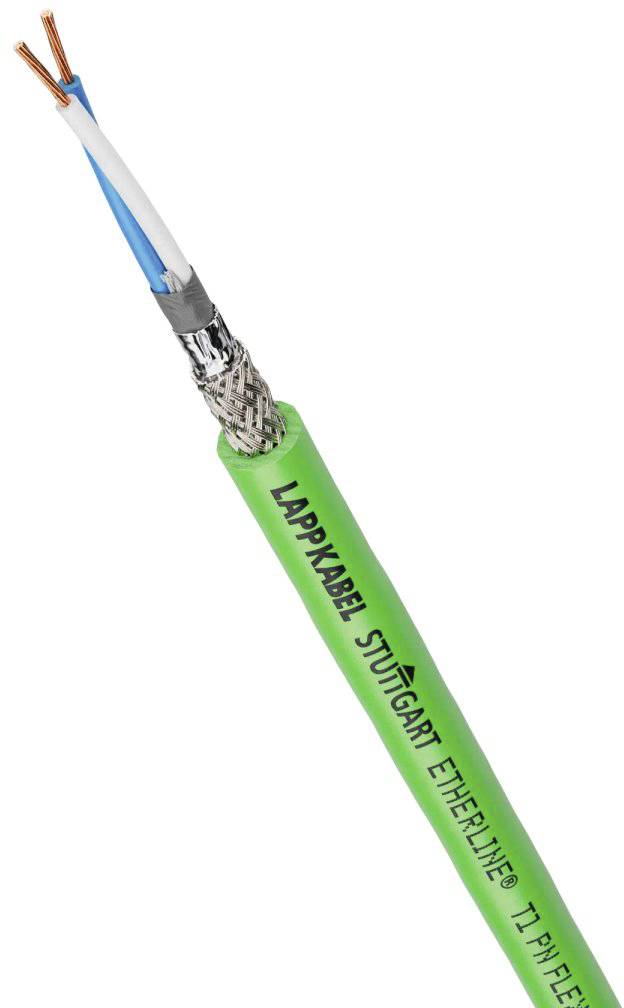

A green cable with the inscription 'LAPPKABEL STUTTGART ETHERLINE'. The cable shows exposed copper wires and a protective sheathing.

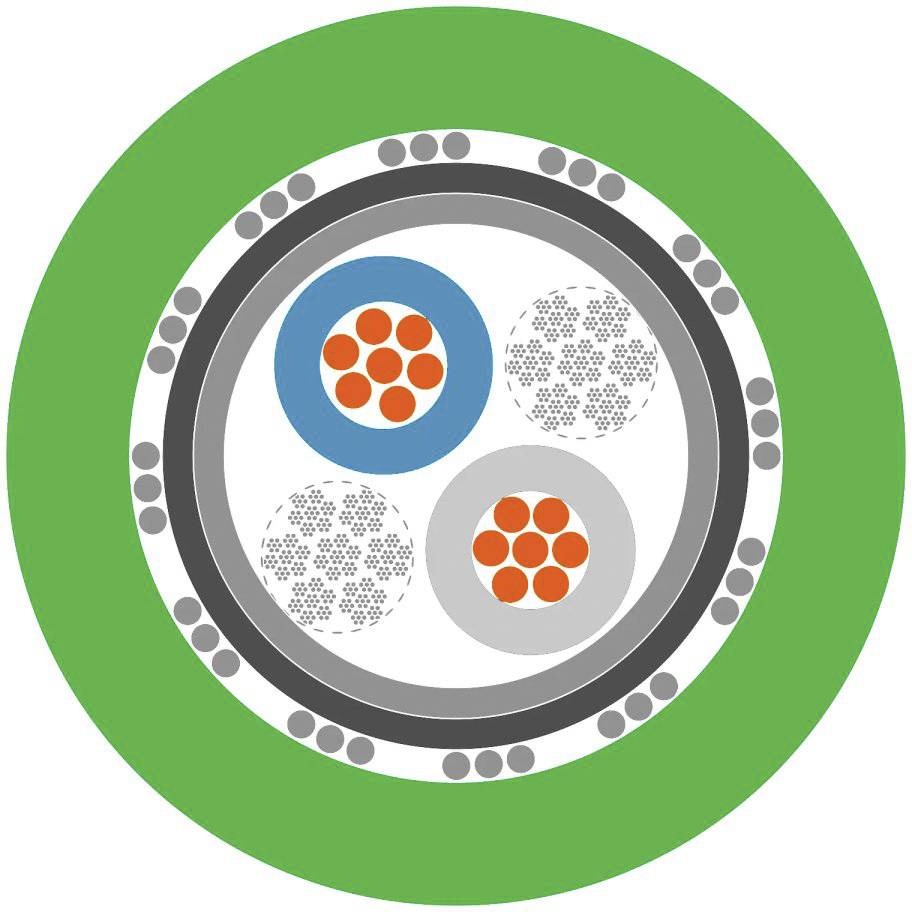

Cross-section of a cable with three cores: one blue, one grey, and one dotted core, surrounded by green insulation.

1/2

Image similar

Product type

Network cable

No. of leads

2 x

Cable features

Flexible

Cable type

ETHERLINE® T1 PN FLEX T Y

Twisted pair cabling (part 1)

Yes (1)

Datasheet (PDF)

Unavailable

Sales and shipping:

Conrad ElectronicTerms & Conditions

Report legal concerns

Technical specifications

Product type: Network cable

Cable type: ETHERLINE® T1 PN FLEX T Y

No. of leads: 2 x

Twisted pair cabling (part 1): Yes (1)

Cable features: Flexible

Outside Ø: 5 mm

Factory colour: Green

Content: 500 m

AWG (min.): 22

AWG max.: 22

Bend radius (no. of ODs for fixed installation): 4

Bend radius (no. of ODs for flexible installation): 8

Sold per metre: No

Manufacturer part #: 2170922/500

Insulation material: Polyvinyl chloride

Max. length sold by the metre: 500 m

Type: ETHERLINE® T1 PN FLEX T Y 1x2x22/7AWG

: TRUE

: Other

: Green

: Copper

: Polyvinyl chloride (PVC)

: 2

: 5.8 mm

: FALSE

: Bare

: Other

: 46.4 mm

: 23.2 mm

: Other

: Other

: Round

Documents & Downloads

Datasheet

Datasheet 3350925 LAPP 2170922/500 Network cable ETHERLINE® T1 PN FLEX T Y Green 500 m

User & Safety Instructions

User & Safety Instructions 3350925 LAPP 2170922/500 Network cable ETHERLINE® T1 PN FLEX T Y Green 500 m

Description

ETHERLINE® T1 PN Flex T Y 1x2x22/7AWG Single Pair Ethernet cable; flexible; Ethernet; PROFINET® application: Type B; PVC; green

This text is machine translated.

Description

ETHERLINE® T1 PN Flex T Y 1x2x22/7AWG Single Pair Ethernet cable; flexible; Ethernet; PROFINET® application: Type B; PVC; green

This text is machine translated.
