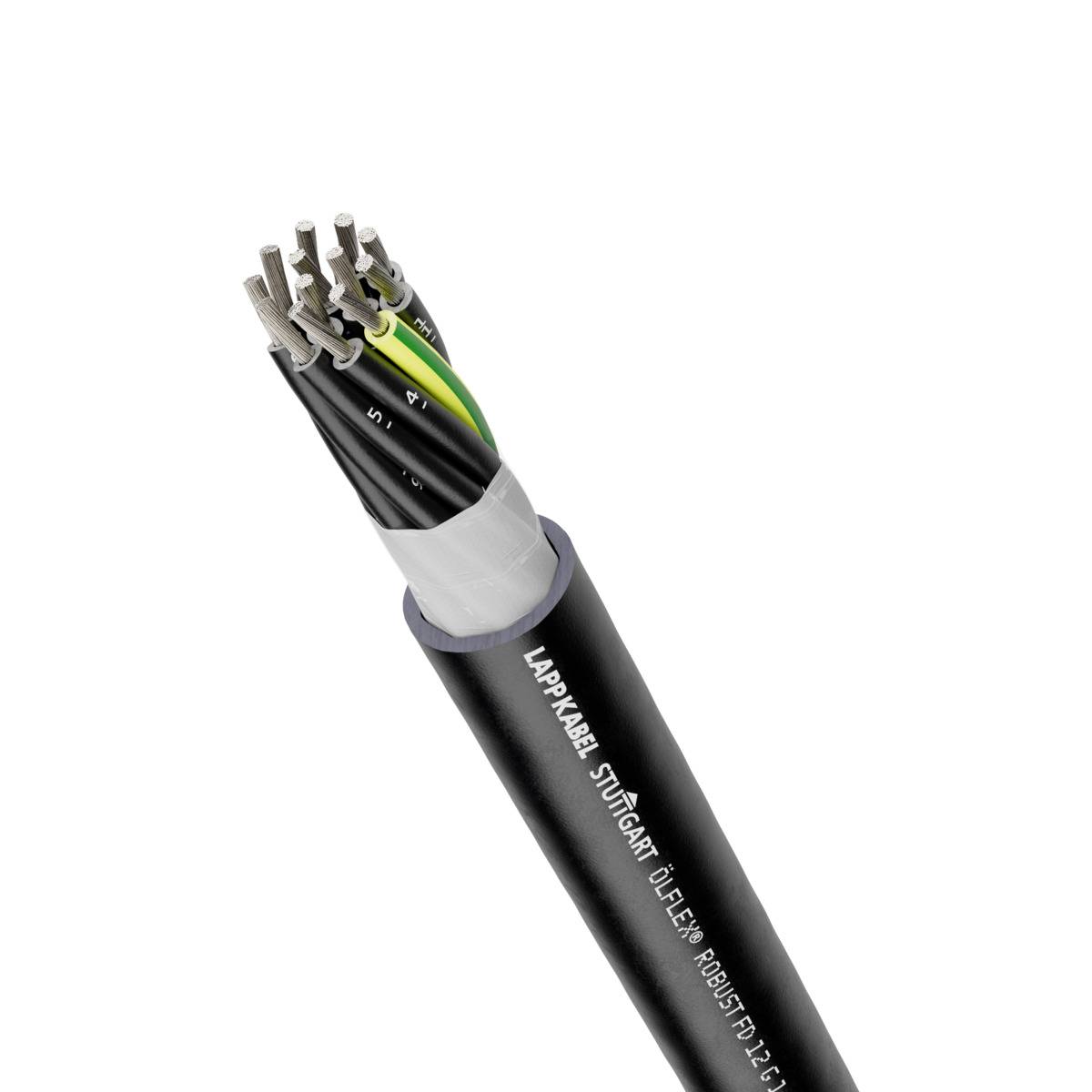

Name: LAPP 26522/1000 Drag chain cable ÖLFLEX® FD ROBUST 4 G 1.5 mm² Black 1000 m
Brand: LAPP
SKU: 1036228

Image similar

Product type

Drag chain cable

No. of leads

4 G

Cross section (each core)

1.5 mm²

Cable features

Halogen-free

Suitable for drag chains

Oil-resistant

Suitable for drag chains

Cable type

ÖLFLEX® FD ROBUST

Datasheet (PDF)

Unavailable

Sales and shipping:

Conrad ElectronicTerms & Conditions

Report legal concerns

Highlights & Details

OILFLEX ®-FD ROBUST control line

Number coded
Drag-chain compatible
-40 - +105 °C

Technical specifications

Product type: Drag chain cable

Cable type: ÖLFLEX® FD ROBUST

No. of leads: 4 G

Cross section (each core): 1.5 mm²

Cross section: 4 G 1.5 mm²

Cable features: Halogen-free
Suitable for drag chains
Oil-resistant
Suitable for drag chains

Outside Ø: 9.90 mm

Factory colour: Black

Content: 1000 m

Nominal voltage: 500 V

Nominal voltage U0: 300 V

Bend radius (no. of ODs for flexible installation): 7.5

Packaged: Yes

Sold per metre: No

Halogen-free: Yes

Manufacturer part #: 26522/1000

Insulation material: Elastomer

Wire ID code: Black wires with white number printing (VDE 0293)

Core layout: Extra-fine strand

Min. temperature range (flexible installation): -40 °C

Max. temperature range (flexible installation): +105 °C

Min. temperature range (fixed installation): -50 °C

Max. temperature range (fixed installation): +105 °C

Certification marks: In accordance with: Wire according to VDE 0245/0281, sheath according to 0245/0281.

Type: ÖLFLEX FD ROBUST 4G1,5

UKCA: not relevant

Documents & Downloads

Datasheet

Datasheet 1036228 LAPP 26522/1000 Drag chain cable ÖLFLEX® FD ROBUST 4 G 1.5 mm² Black 1000 m

User & Safety Instructions

User & Safety Instructions 1036228 LAPP 26522/1000 Drag chain cable ÖLFLEX® FD ROBUST 4 G 1.5 mm² Black 1000 m

Description

OILFLEX®-FD ROBUST is a heavy-duty cable for tow chain leads used in machinery and mechanical applications, both indoors and outdoors. The product properties are particularly appreciated in the food and drink industries, in machine tools manufacture, laundries, car washes, the chemical industry, composting and sewage treatment plants. This cable is particularly resistant and long lived when subjected to continual cleaning processes using steam jets. Resistant against organic and mineral oils, halogen-free, wide temperature range, suitable for interior and exterior use.
