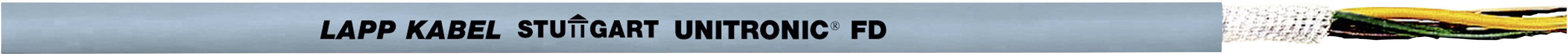

Name: LAPP 27871/500 Data transfer cable UNITRONIC® FD 3 x 0.34 mm² Grey 500 m
Brand: LAPP
SKU: 1044813

Banner with the text 'Lappy Kabab: Int'l Rintong VD'. On the right, an image of a filled flatbread with vegetables.

Image similar

Product type

Data transfer cable

No. of leads

3 x

Cross section (each core)

0.34 mm²

Cable features

Flame-retardant

Suitable for drag chains

Cable type

UNITRONIC® FD

Datasheet (PDF)

Unavailable

Sales and shipping:

Conrad ElectronicTerms & Conditions

Report legal concerns

Highlights & Details

UNITRONIC ® FD

Technical specifications

Product type: Data transfer cable

Cable type: UNITRONIC® FD

No. of leads: 3 x

Cross section (each core): 0.34 mm²

Cross section: 3 x 0.34 mm²

Cable features: Flame-retardant
Suitable for drag chains

Outside Ø: 5 mm

Factory colour: Grey

Content: 500 m

Nominal voltage (details): 50 V

Test voltage: 1500 V

Bend radius (no. of ODs for fixed installation): 3

Bend radius (no. of ODs for flexible installation): 5

Packaged: Yes

Sold per metre: No

Halogen-free: No

Manufacturer part #: 27871/500

Insulation material: PVC

Core layout: Extra-fine strand

Min. temperature range (flexible installation): -5 °C

Max. temperature range (flexible installation): +70 °C

Min. temperature range (fixed installation): -40 °C

Max. temperature range (fixed installation): +80 °C

Type: UNITRONIC FD 3X0,34

UKCA: not relevant

Documents & Downloads

Datasheet

Datasheet 1044813 LAPP 27871/500 Data transfer cable UNITRONIC® FD 3 x 0.34 mm² Grey 500 m

User & Safety Instructions

User & Safety Instructions 1044813 LAPP 27871/500 Data transfer cable UNITRONIC® FD 3 x 0.34 mm² Grey 500 m

Description

UNITRONIC ® FD-PVC-data cable for a variety of applications in power chain and continuously moving applications. UNITRONIC ® FD-PVC-data cable for a variety of applications in power chain and continuously moving applications.
