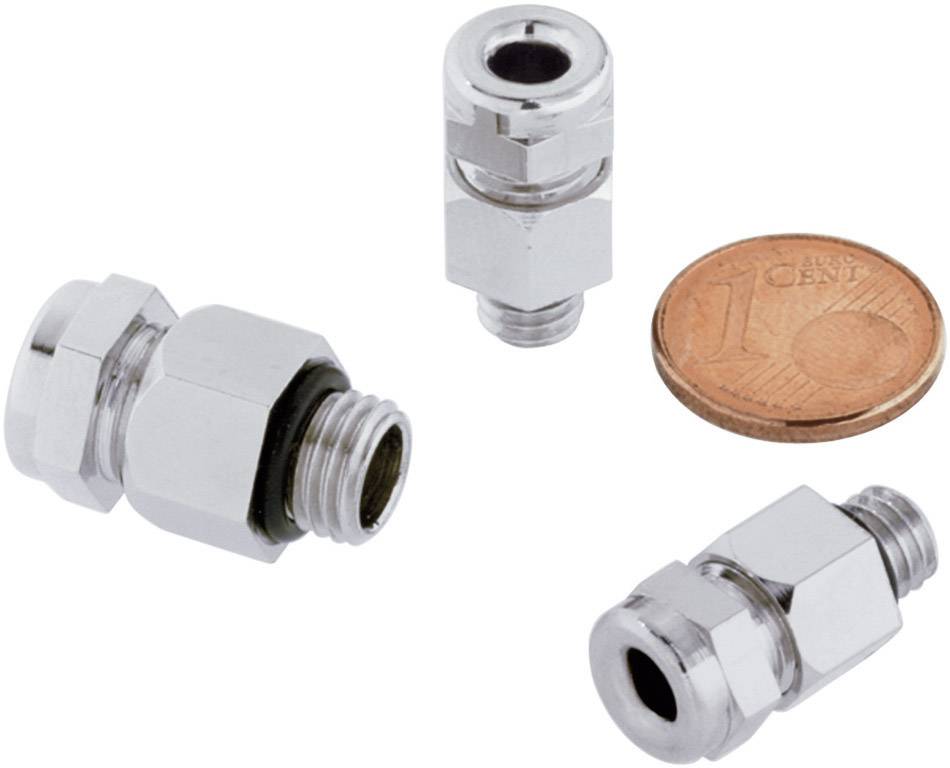

LAPP 52001860 Cable gland M6 Brass Nickel 1 pc(s)
Product type
Cable gland
External thread
M6
Material
Brass
Clamp Ø
2 mm
Terminal Ø (max.)
3 mm
Datasheet (PDF)
EAN:
Part number:
Item no:
Number
Total (€ 6.49 / piece)
€ 6.49
incl. VAT
14-day return policy included
Highlights & Details
LAPP 52001860 Cable gland M6 Brass Nickel 1 pc(s)
Technical specifications
- Product type
Cable gland
- Factory colour
Nickel
- External thread
M6
- Material
Brass
- Clamp Ø
2 mm
- Terminal Ø (max.)
3 mm
- Thread length
5 mm
- Min. temperature
-20 °C
- Max. temperature
+100 °C
IP68
- Spanner size
9 mm
- Halogen-free
No
- Content
1 pc(s)
- RoHS-compliant
Yes
- Manufacturer part #
52001860
- Type
SKINDICHT® MINI M 6X1
- Material (details)
Nickel-plated brass
- Temperature range
-20 - +100 °C
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 526828 LAPP 52001860 Cable gland M6 Brass Nickel 1 pc(s)
User & Safety Instructions
User & Safety Instructions 526828 LAPP 52001860 Cable gland M6 Brass Nickel 1 pc(s)
Information
Information 526828 LAPP 52001860 Cable gland M6 Brass Nickel 1 pc(s)
Description
These glands are used when reduced installation heights and the safe installation (IP 68) of cables with small diameters are required. Due to their special design, a clamping range of 2 to 5.5 mm can be covered with just two cable gland sizes.
