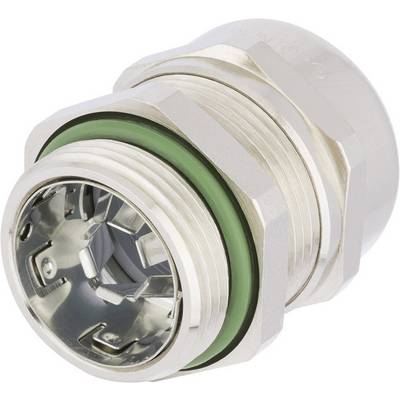

LAPP 53112531 Cable gland EMC M16 x 1.5 Brass Brass 1 pc(s)
Product type
Cable gland
External thread
M16 x 1.5
Material
Brass
Clamp Ø
4.5 mm
Terminal Ø (max.)
10 mm
Datasheet (PDF)
EAN:
Part number:
Item no:
Number
Total (€ 15.99 / piece)
€ 15.99
incl. VAT
14-day return policy included
Technical specifications
- Product type
Cable gland
- Features
EMC
- Factory colour
Brass
- External thread
M16 x 1.5
- Material
Brass
- Clamp Ø
4.5 mm
- Terminal Ø (max.)
10 mm
- Thread length
7 mm
- Min. temperature
-25 °C
- Max. temperature
+100 °C
IP68
- Spanner size
20 mm
- Certification marks
DIN EN 45545-2 · DIN EN 45545-3:2013-08 · DIN EN 1363-1: 2012-10 · DIN EN 13501-2: Classification E30
- Halogen-free
Yes
- Content
1 pc(s)
- RoHS-compliant
Yes
- Manufacturer part #
53112531
- Type
SKINTOP® MS-HF-M SC M16
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 1601940 LAPP 53112531 Cable gland EMC M16 x 1.5 Brass Brass 1 pc(s)
User & Safety Instructions
User & Safety Instructions 1601940 LAPP 53112531 Cable gland EMC M16 x 1.5 Brass Brass 1 pc(s)
