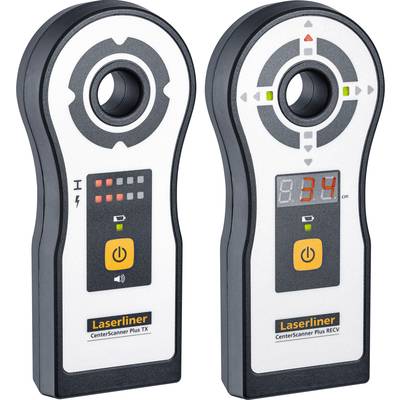

Two electronic detector devices: left scanning device, right receiver with digital display, showing measurement in centimetres.

Laserliner 075.300A CenterScanner Plus 1-piece Bore hole template-1

'AC Detection' and 'Metal Detection' symbols on a device. Four illuminated red and one green light on a control panel.

Two electronic scanners set to different modes, against a background of concrete and drills.

Open battery compartment cover revealing three AAA batteries in a device. Text on the cover: '3 x 1.5V LR03 (AAA)' and safety symbols.

'Close-up of a digital measuring device with a red display showing '34 cm'. Beneath it, a battery symbol and an orange power button.'

A man is using a cable locator on a wall to detect electrical cables. A diagram shows the detection.

'Sensor with a hole in the centre and arrows, indicating "max. 150 cm Position Detection".'

Laserliner 075.300A CenterScanner Plus 1-piece Bore hole template-8

1/9

Fast track dispatch on Mon, 14 Sep

13 Piece(s)

Sales and shipping:

Conrad Electronic Terms & Conditions

Number

Piece(s)

Total (€ 525.21 / piece)

€ 592.44

-11 %

€ 525.21

plus VAT.

Report legal concerns

Technical specifications

Product type: Bore hole template

UKCA: yes

Documents & Downloads

User & Safety Instructions

User & Safety Instructions 2445724 Laserliner 075.300A CenterScanner Plus 1-piece Bore hole template

Warranty Terms

Warranty Terms 2445724 Laserliner 075.300A CenterScanner Plus 1-piece Bore hole template

Description

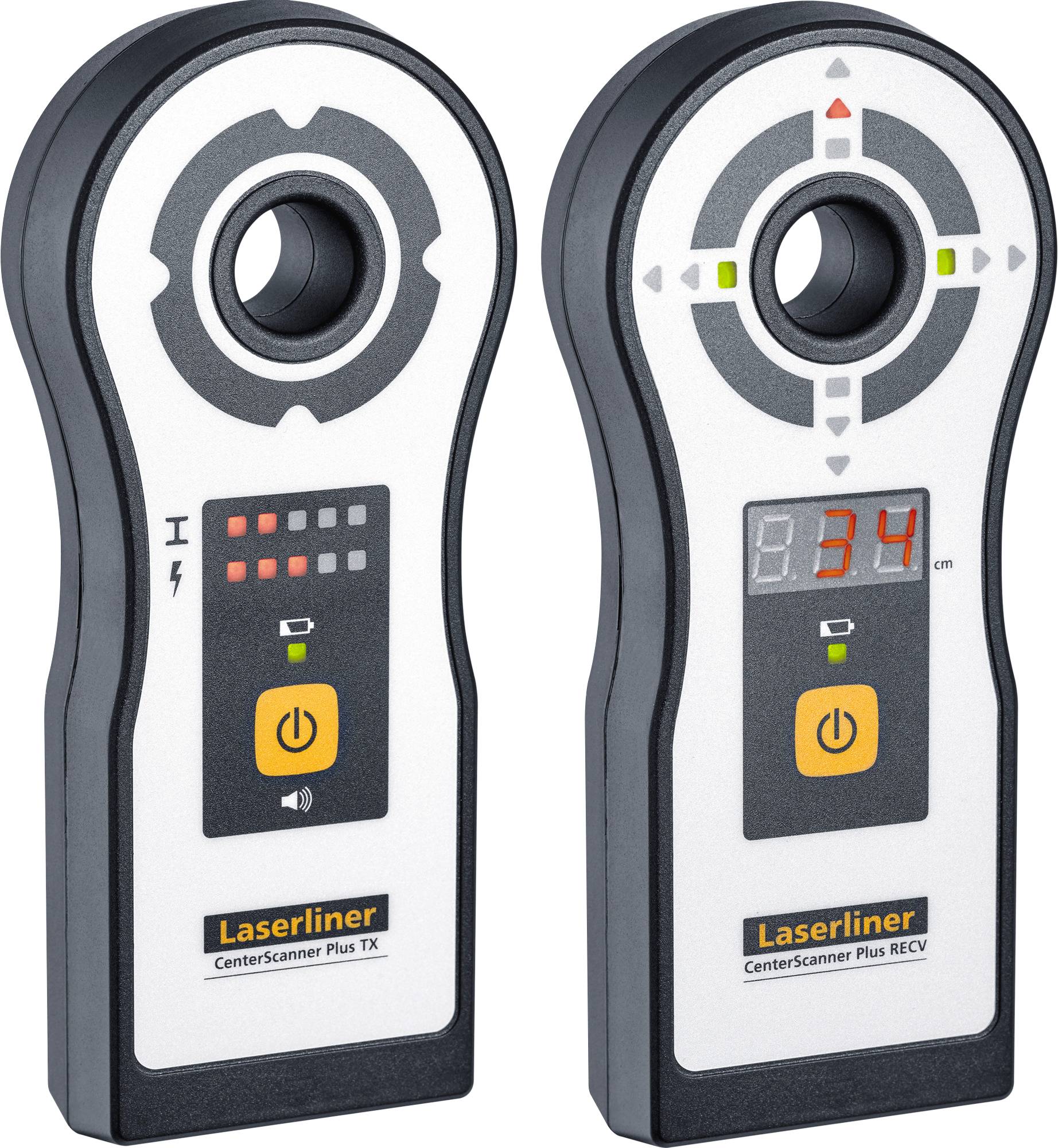

The precise drill guide consisting of transmitter and receiver enables the safe alignment of the drilling channel to wall and ceiling holes up to 150 cm. The location is made possible by easily visible LED indicators and acoustic signals. Easily accessible marking aids in transmitter and receiver are used for center alignment. The required drilling depth can be determined up to 200 cm via the integrated LCD display. The TX transmitter with metal and voltage detection provides for an effective prevention of incorrect drilling. When detecting foreign objects, an optical and acoustic warning is emitted.

This text is machine translated.

Features

Simple and exact alignment of the drilling channel
Precise positioning of the entry and exit positions via LED indicators
Easily accessible marking aids in transmitter and receiver for center alignment
Determination of the required drilling depth up to 200 cm
Transmitter TX with integrated metal and voltage detection to prevent incorrect drilling
Visual and acoustic warning when detecting foreign objects
Avoid unnecessary drilling

Scope of delivery

Transmitter CenterScanner Plus TX
Receiver RECV
Glue kit
Sliding pads (4x)
Batteries
Carrying case
