Name: LC Power LC-Power Geh Midi-7042B Black Midi tower PC casing Black Air vents
Brand: LC Power
SKU: 3820480

Technical specifications

Material: Metal, plastic
Compatible Motherboards: ATX, Micro ATX, Mini ITX
Cage dimensions (HxWxD) 410 x 180 x 330 mm
Installation options: 1x 2.5" + 1x 3.5" (with front fan) / 1x 2.5" + 2x 3.5" (without front fan)
PCI slots (expansion slots) 7/0 (total/screw-on)
Internal fans: 2/0 (total/power supply) - Front: 1x 120 mm | Rear: 1x 120 mm
CPU-cooler up to 150 mm height
Graphics cards up to 290 mm long
Power supply form factor ATX
Power supplies up to 160 mm in length
Audio-Port (I/O-Panel & Connections): Audio-Out | 3.5-mm jack

Product type: PC casing

Case type: Midi tower

Factory colour: Black

Interfaces (front): USB C® (USB 3.2 2nd gen)
USB A (USB 3.2 1st gen)
USB A (USB 2.0)
Jack connector

6.4 cm (2.5") internal slots: 1

8.9 cm (3.5") internal slots: 2

13.3 cm (5.25") slots: 1

Width: 180 mm

Height: 420 mm

Depth: 352 mm

Weight: 2.4 kg

Form factor: ATX

No. of USB 3.0 ports: 1 x

No. of USB 2.0 ports: 2 x

Wireless charging: No

Dim: (W x H x D) 180 x 420 x 352 mm

Features: Air vents

No. of USB 3.2: 1 x

Documents & Downloads

Datasheet

Datasheet 3820480 LC Power LC-Power Geh Midi-7042B Black Midi tower PC casing Black Air vents

User & Safety Instructions

User & Safety Instructions 3820480 LC Power LC-Power Geh Midi-7042B Black Midi tower PC casing Black Air vents

Description

Flexible for any system
Compatible with ATX, Micro ATX and Mini-ITX

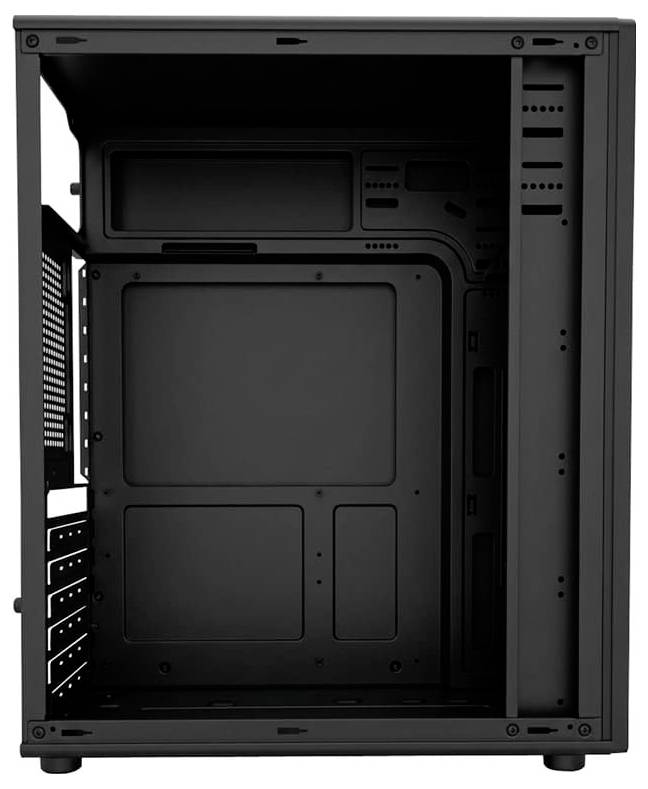

No matter whether powerful ATX-build or space-saving mini-ITX-system – the ATX 7042B adjusts to your requirements. It supports mainboards in ATX, Micro ATX and Mini-ITX formats and offers space for graphics cards up to 290 mm length as well as CPU cooler with up to 150 mm installation height. A standard ATX power supply unit with up to 160 mm length can be mounted comfortably on the top of the housing. Thus, the 7042B is the ideal basis for almost all system configurations.

Modern connection possibilities with USB-C.
Future-proof I/O panel for fast connections

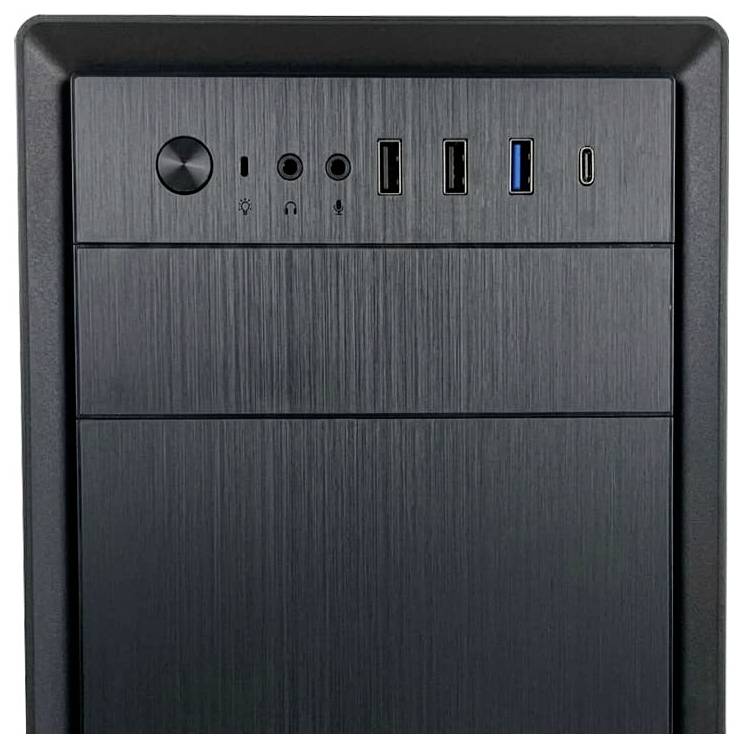

The ATX 7042B brings your peripherals with a sophisticated connection field directly to the front. A USB-C port (3.2 Gen. 2x1) provides for fast data transfer and convenient connection of the latest devices, supplemented by a USB-A port (3.2 Gen 1x1) and two USB A ports (2.0). An audio out (3.5 mm jack) as well as an easily accessible Power button round off the panel. So you have all important connections handy at all times - without having to reach below the desk.

Thought-out cooling and plenty of storage space
Good air circulation and generous storage possibilities

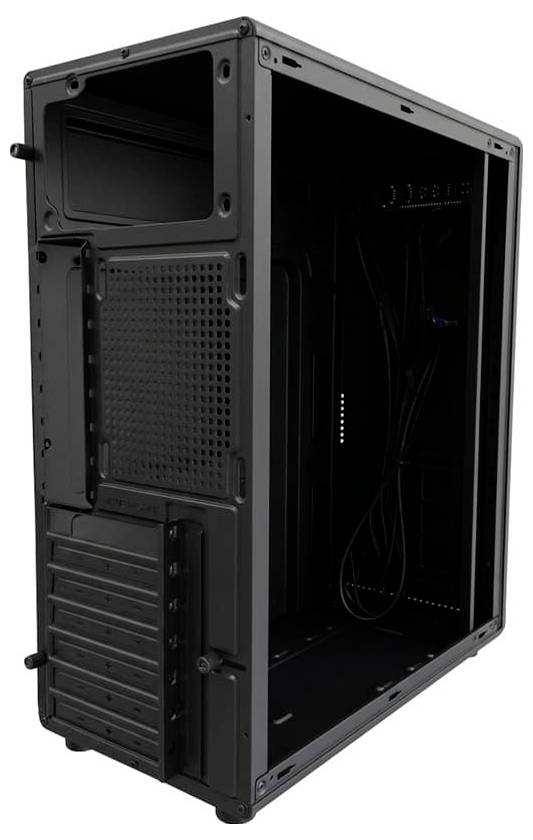

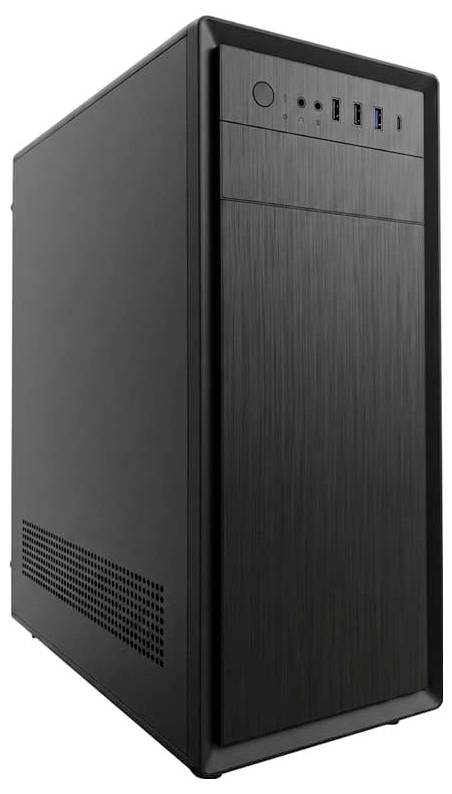

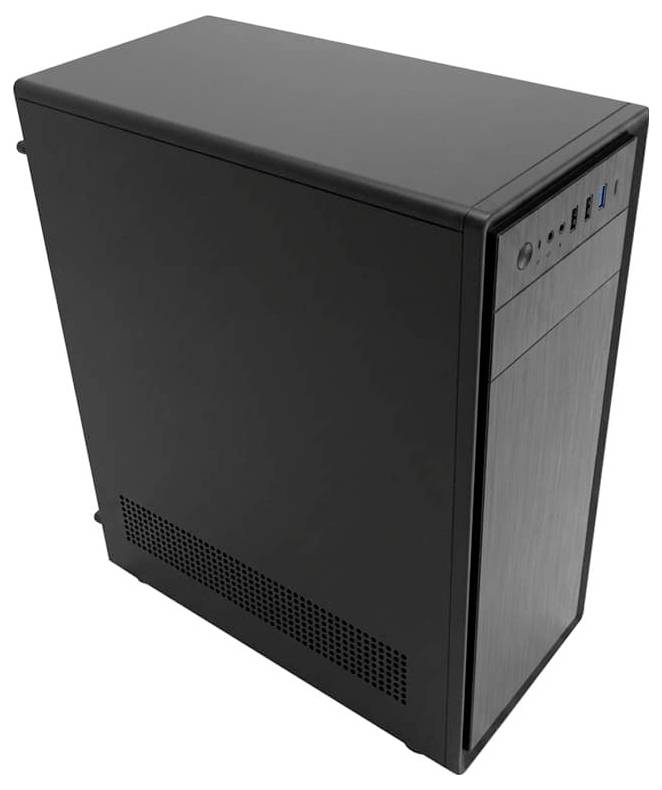

Lateral ventilation slots at GPU height ensure pleasant temperatures which directs fresh air to the graphics card. In addition, up to two housing fans (1x 120 mm each at the front and rear) can be mounted. The 7042B also has room for memory: Up to two 3.5″ hard drives and one 2.5″ drive (SSD/HDD) can be used internally, supplemented by an external 5.25″ slot for optical drives or other extensions.

This text is machine translated.
