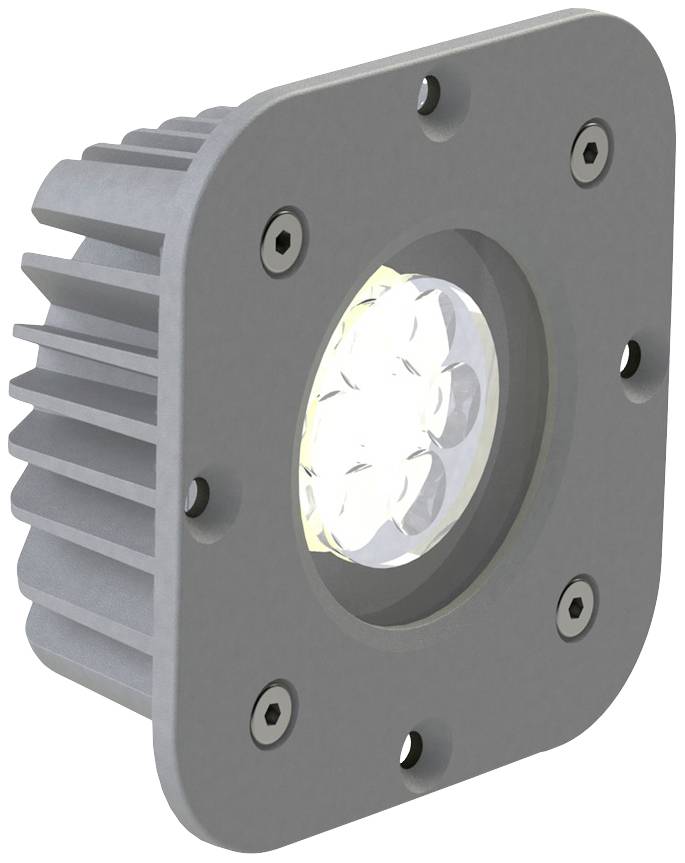

LED2WORK Industrial LED indicator light CENALED SPOT 8.5 W 1120 lm 30 ° 24 V DC (W x H) 80 mm x 80 mm 1 pc(s)
Product type
Industrial LED indicator light
Operating voltage
24 V DC
Power
8.5 W
Colour temperature type
5000 K
Luminous flux (Φ)
1120 lm
Datasheet (PDF)
EAN:
Part number:
Item no:
Highlights & Details
CENALED Spot flush-mount fitting DC,optical 30° for surface light
- High-power LED chips for neutral whiteHigh color reproductionThree variants with different radiation anglesSplash-proof window safety glass above the light outputHardly any heat generation through smart thermal managementHigh degree of protection and 24 V DC connection voltage via M12 A-coded plug connectorMaintenance freeMade in Germany
Technical specifications
- Beam angle: 30°NOTE: Seal supplied; secured by 4 countersunk head bolt M5Connection light: M12 A-codedConnected load lamp 24 V DC ± 10%Design: LED built-in lampSpecial feature: 30° optics for flat lightOperating temperature -10... +50 °CGross weight 550 gDimmable: Optionally via accessoriesColour reproduction (Ra): > 80Manufactured in: GermanyWeight: 450gHeight [W] x width [C]: Body: ~80 mm x 80 mm, mounting depth >60 mm,panel ~105 mm x 105 mm, ~5 mm surface-mountingLamp life > 60,000 hLamp power ~8.5 WLight output 134 lm/WLamp light current 1120 lmLamp: High Power LEDLight color: Neutral white (5000K)Light distribution: DirectMaterial cover: ESG 4 mm, crack proofMaterial housing: Aluminium (powder-coated)CENALED Spot installation modelRisk group (DIN EN 62471): Free groupProtection class IP67Protection class III
- Product type
Industrial LED indicator light
- Type
CENALED SPOT
- Features
splashproof
- LED features
dimmable
- Operating voltage
24 V DC
8.5 W
- Min. colour temperature
5000 K
- Colour temperature type
5000 K
- Colour temperature (max.)
5000 K
- Luminous flux (Φ)
1120 lm
- Radiation angle
30°
- Connection
M12 plug
- Material
Aluminium
IP67
- Protection class
III
- Min. temperature
-10 °C
- Max. temperature
+50 °C
- Width
80 mm
- Height
80 mm
- Dim
(W x H) 80 mm x 80 mm
n.rel.
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 2861600 LED2WORK Industrial LED indicator light CENALED SPOT 8.5 W 1120 lm 30 ° 24 V DC (W x H) 80 mm x 80 mm 1 pc(s)
User & Safety Instructions
User & Safety Instructions 2861600 LED2WORK Industrial LED indicator light CENALED SPOT 8.5 W 1120 lm 30 ° 24 V DC (W x H) 80 mm x 80 mm 1 pc(s)
Description
LED build-in lamp for machinesCENALED Spot installationRobust, strong light and inconspicuousCENALED Spot installation is a rather inconspicuous LED mounted light fixture for lighting work areas. Integrated in the shaft of a machine tool, the light carries only flat in front and is thus best suited for small processing areas. The robust aluminum casing with built-in frame and safety glass protects the light from external influences such as chip board or cooling lubricants. A high-quality FKM seal ensures seamless sealing of the installation surface.Thanks to the latest LED technology, the CENALED Spot installation offers an excellent illumination. Depending on the version and the built-in optics, the lamp can be used for illumination with spot light or as broad radiating lighting.Thanks to its very high protection class, the CENALED Spot series is ideally protected against dust and moisture and is therefore also suitable for use in demanding working environments.Benefits:Compact, robust recessed light with the latest LED technologyBright neutral white lighting with high detail sharpnessSealed mounting frame for installation surfaceHigh protection class - dust and splash-proofVersions available with 15°, 30° or 65° opticsApplication areas:Machine tools or machine workstationsPlant and production rooms with little spaceCamera applications for industrial image processing
