LED2WORK Industrial LED indicator light FIELDLED EVO 78 W 12000 lm 100 ° 24 V DC (L x W x H) 1040 x 96 x 30 mm 1 pc(s)
Product type
Industrial LED indicator light
Operating voltage
24 V DC
Power
78 W
Luminous flux (Φ)
12000 lm
IP rating
IP67
IP69K
Datasheet (PDF)
EAN:
Part number:
Item no:
Highlights & Details

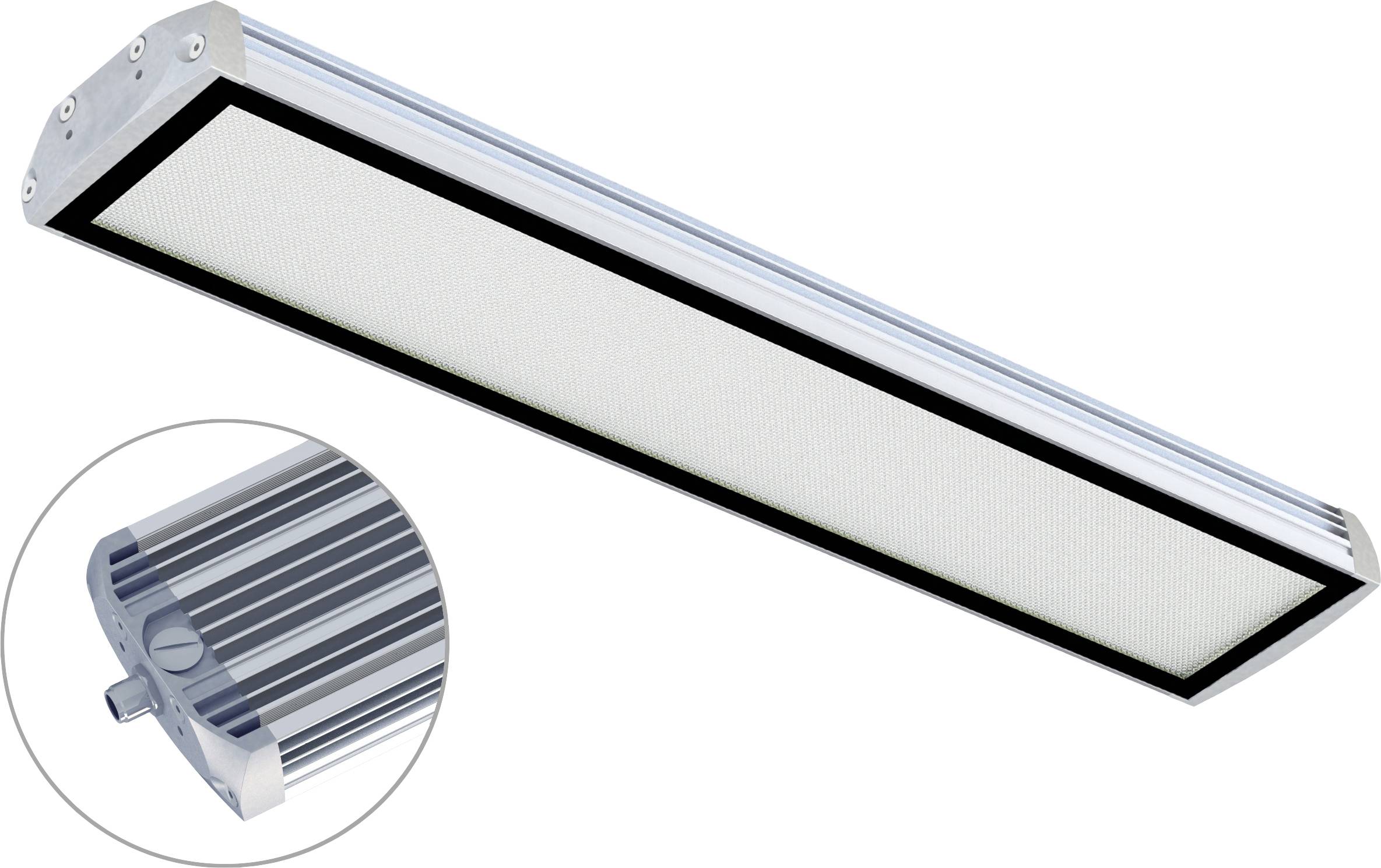

FIELDLED EVO 1040_96 body, 1040 mm, 24V DC, M12-a rear side
- High-power LED chips for daylight white (5200-5700 K) - industry standardBeam angle 100° and color reproduction Ra >85Dense packed LED assembly inside - extremely powerfulThick insert safety glass with underlying micro-prism masking and light-forming technologyVery high protection class IP67/IP69K and above-average life of the LEDs >60,000h (L80/B10)Connection voltage 24V DC; connection via M12 connector on the front or rear sideCE and ETL listed safety seal (www.intertek.de/elektronik/etl-zeichen)Rear screw channels for M5 for attachment, other mounting accessories available separatelyMaintenance freeDeveloped and manufactured in Germany
Technical specifications
- Angle of radiation: 100°NOTE: Connector M12 A coded, rearConnection light: M12 A-codedConnected load lamp 24 V DC ± 10%LED assembly light for machinesMounting accessories: OptionalSpecial feature: Very strong light LED machine lamp with high protection classOperating temperature -30... +60 °CGross weight ~4250 gDimmable: Optionally via accessoriesFade-out: Micro-prismsColour reproduction (Ra): > 85Manufactured in: GermanyWeight: 3450 g.Height [B] x width [C]: 30 mm x 96 mmLamp life > 60,000 hLamp power ~78 WLight output 155 lm/WLamp light current 12000 lmLength [A]: 1040 mmSMD LED lampLight color: Daylight white (5200 - 5700K)Light distribution: DirectMaterial cover: Safety glass, jump-proofMaterial housing: AluminiumFIELDLED EVO modelRisk group (DIN EN 62471): Free groupProtection class IP67/IP69KProtection class III
- Product type
Industrial LED indicator light
- Type
FIELDLED EVO
- LED features
splashproof
- Operating voltage
24 V DC
- Operating current
3250 mA
78 W
- Min. colour temperature
5200 K
- Colour temperature (max.)
5700 K
- Luminous flux (Φ)
12000 lm
- Radiation angle
100°
- Connection
M12 plug
- Material
Aluminium
IP67
IP69K
- Protection class
III
- Min. temperature
-30 °C
- Max. temperature
+60 °C
- Length
1040 mm
- Width
96 mm
- Height
30 mm
- Dim
(L x W x H) 1040 x 96 x 30 mm
n.rel.
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 2861276 LED2WORK Industrial LED indicator light FIELDLED EVO 78 W 12000 lm 100 ° 24 V DC (L x W x H) 1040 x 96 x 30 mm 1 pc(s)
User & Safety Instructions
User & Safety Instructions 2861276 LED2WORK Industrial LED indicator light FIELDLED EVO 78 W 12000 lm 100 ° 24 V DC (L x W x H) 1040 x 96 x 30 mm 1 pc(s)
Description
LED machine lampFIELDLED EVO mountingStrong light in harsh environmentsThe strong LED machine lamp FIELDLED EVO is in the mounting version Ideal for harsh production environments. A micro-prism glare under the single-pane safety glass (ESG) also results in very high light scattering with low reflections. The robust aluminum housing is completely sealed and, in combination with the safety glass, ensures a high degree of protection of IP67/IP69K. Depending on the version, the connection is on the front or on the back of the lamp. There are also screw channels on the rear for attaching the machine lamp.Benefits:Bright and homogeneous illumination, flicker-free without UV and IR-portionLight emission over the entire width of the lampHigh resistance to many oils and coolants, chip-proofEntry safety glass with underlying micro-prism glareDurable light output, as there is no burning of oil or KSS into the glassVersion with front side and version with rear connection via M12 A-codedAttachment via screw channels at the rear or with optional lamp holdersApplication areas:Large-volume machines and systemsCNC machines as well as machine toolsMilling MachinesFlat grinding machines
