LED2WORK Industrial LED indicator light TUBELED_25 14.4 W 2304 lm 100 ° 24 V DC (L x W x H) 540 x 28 x 23 mm 1 pc(s)
Product type
Industrial LED indicator light
Operating voltage
24 V DC
Power
14.4 W
Colour temperature type
5200 K
Luminous flux (Φ)
2304 lm
Datasheet (PDF)
EAN:
Part number:
Item no:
Technical specifications
- Product type
Industrial LED indicator light
- Type
TUBELED_25
- LED features
flashing
splashproof
multicolour
- Operating voltage
24 V DC
- Operating current
600 mA
14.4 W
- Min. colour temperature
5000 K
- Colour temperature type
5200 K
- Colour temperature (max.)
5000 K
- Luminous flux (Φ)
2304 lm
- Radiation angle
100°
- Connection
Connector
- Material
Aluminium
Glass
IP67
- Protection class
III
- Min. temperature
-30 °C
- Max. temperature
55 °C
- Length
540 mm
- Width
28 mm
- Height
23 mm
- Dim
(L x W x H) 540 x 28 x 23 mm
- RoHS-compliant
Yes
n.rel.
80-89
TRUE
28 mm
Tubular shape
Frosted
60000 h
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 3060855 LED2WORK Industrial LED indicator light TUBELED_25 14.4 W 2304 lm 100 ° 24 V DC (L x W x H) 540 x 28 x 23 mm 1 pc(s)
User & Safety Instructions
User & Safety Instructions 3060855 LED2WORK Industrial LED indicator light TUBELED_25 14.4 W 2304 lm 100 ° 24 V DC (L x W x H) 540 x 28 x 23 mm 1 pc(s)
Description

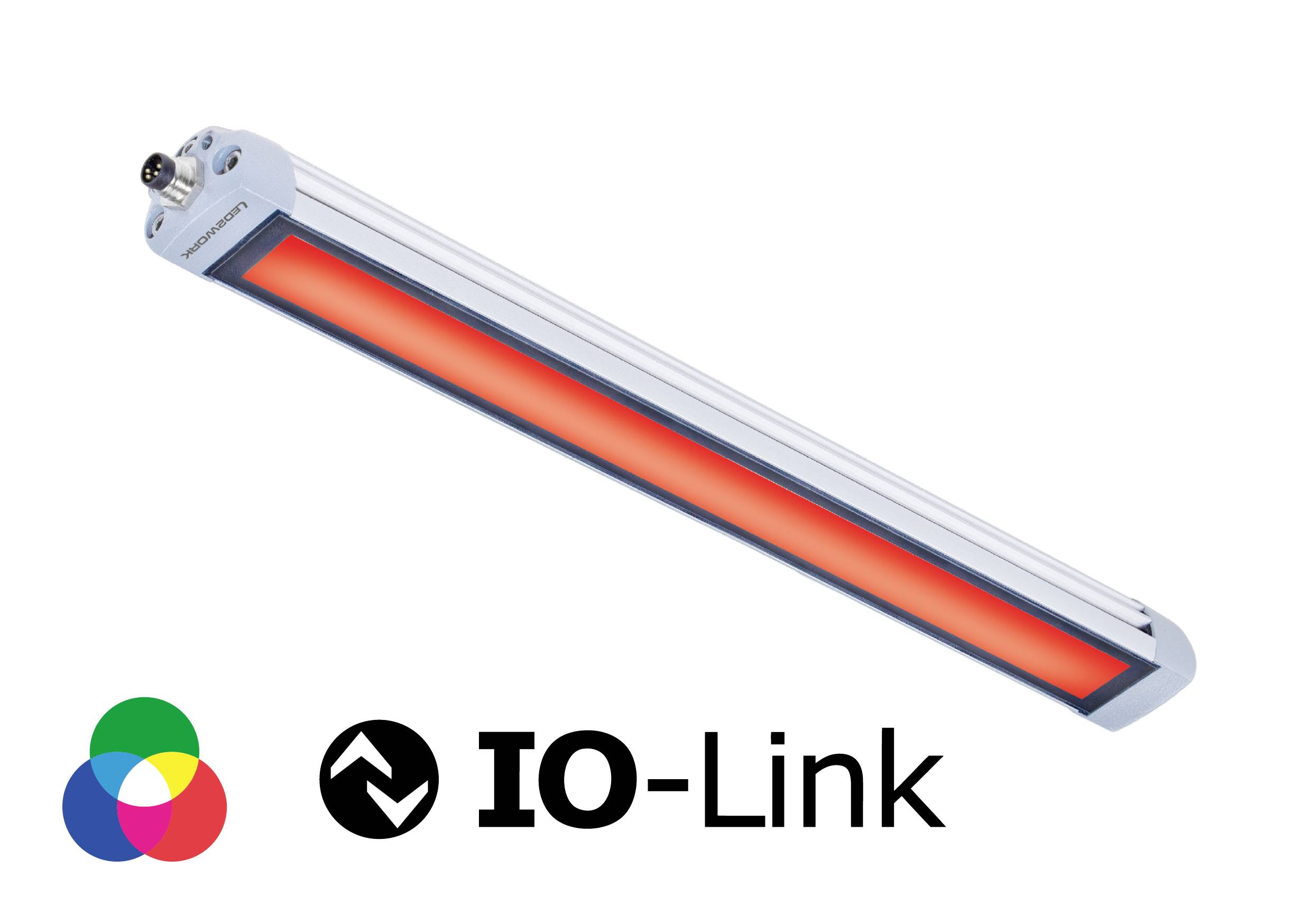

Slim, robust LED light with signal function | Communication capable via IO-Link: The TUBELED_25 RGB-W IO-Link with only 25 mm diameter and light for lighting or signaling. The signal is indicated by flashing, flashing or change of the light color into a signal. This lamp is available in six different lengths. Robust aluminum housing and safety glass ensure high protection class, best heat dissipation and homogeneous light distribution, LED chips for daylight-white light for detailed and low-shadow illumination. Coloured light for signaling is provided by RGB LED chips mounted in clusters. For power supply and signal exchange, the TUBELED_25 RGB-W can be connected to IO-Link via M8 sensor connector. IO-Link functions include switching, temperature measurement and illumination time display. Optional fixing accessories are available for mounting.
