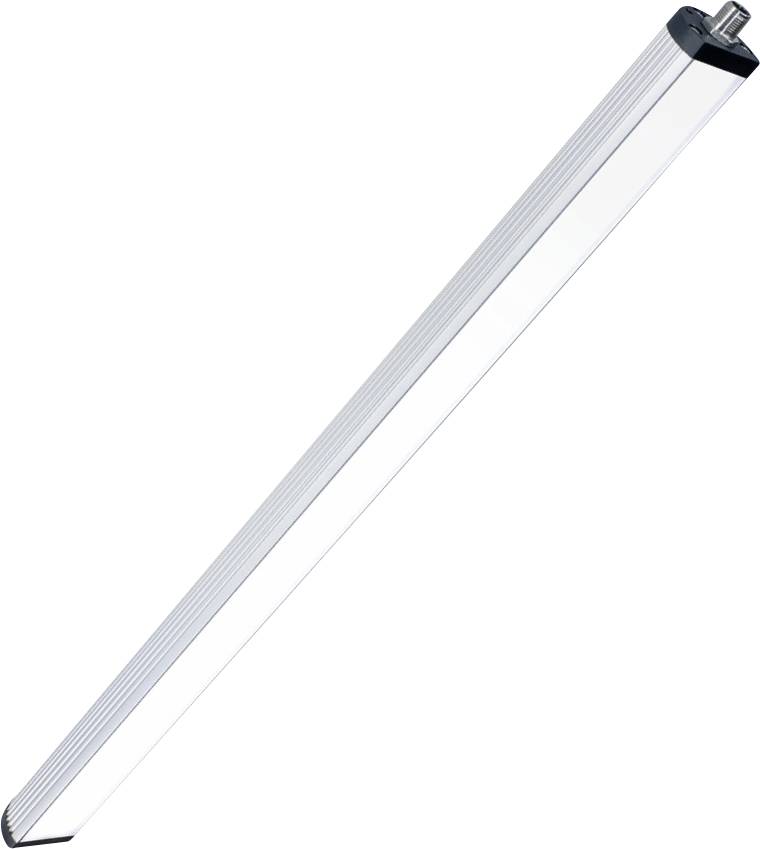

LED2WORK Industrial LED indicator light TUBELED_40 Element Black 51 W 6180 lm 100 ° (L x W x H) 1540 x 40 x 29 mm 1 pc(s
Product type
Industrial LED indicator light
Power
51 W
Luminous flux (Φ)
6180 lm
IP rating
IP54
Energy efficiency rating
n.rel.
Datasheet (PDF)
EAN:
Part number:
Item no:
Highlights & Details
LED2WORK TUBELED_40 element, 1540mm, 100° ~51W, 220-240V AC
- High power LED chips for daylight white 5200-5700K – very bright
- Beam angle 100° and good Ra >80 to very good color reproduction Ra >85
- Lifetime LED > 50,000 to 60,000h (L80/B10)
- Versions with different connection options: 24V DC voltage, 24V DC and cascadable or 220-240V AC
- Version DC: Direct supply voltage 24V DC and cascading via M12 plug connectors A-coded
- Version AC: Fast, direct connection via M12 plug connector S-coded
- Suppression: Diffuser, sealed PMMA cover over the LED chips
- Sealed against dust and splash water: IP54
- Heat dissipation via aluminum extruded profile
- Can be used in higher ambient temperatures
- Attachment via separately available accessories
- Manufactured in Germany
Technical specifications
- Model: TUBELED_40 II.
- Design: LED surface-mounted lamp
- Lamp: SMD LED
- Luminous efficacy 127 lm/W
- Light distribution: Direct
- Light connection: M12 S-coded
- Color reproduction (Ra): > 80
- Lamp life > 50,000 h
- Material casing: Aluminum, plastic end caps
- Material cover: PMMA, frosted
- Weight: 1840 g
- Risk group: Free group
- Mounting accessories: Optional
- Special feature: 220-240V AC connection, temperature resistant
- Suppression: Diffuser, PMMA
- Product type
Industrial LED indicator light
- Type
TUBELED_40 Element
- LED features
splashproof
- Min. operating voltage
220 V AC
- Max. operating voltage
240 V AC
- Operating voltage
220 - 240 V AC
51 W
- Factory colour
Black
- Min. colour temperature
5200 K
- Colour temperature (max.)
5700 K
- Luminous flux (Φ)
6180 lm
- Radiation angle
100°
- Connection
M12 plug
- Material
Aluminium
Plastic
PMMA
IP54
- Protection class
I
- Min. temperature
-30 °C
- Max. temperature
+50 °C

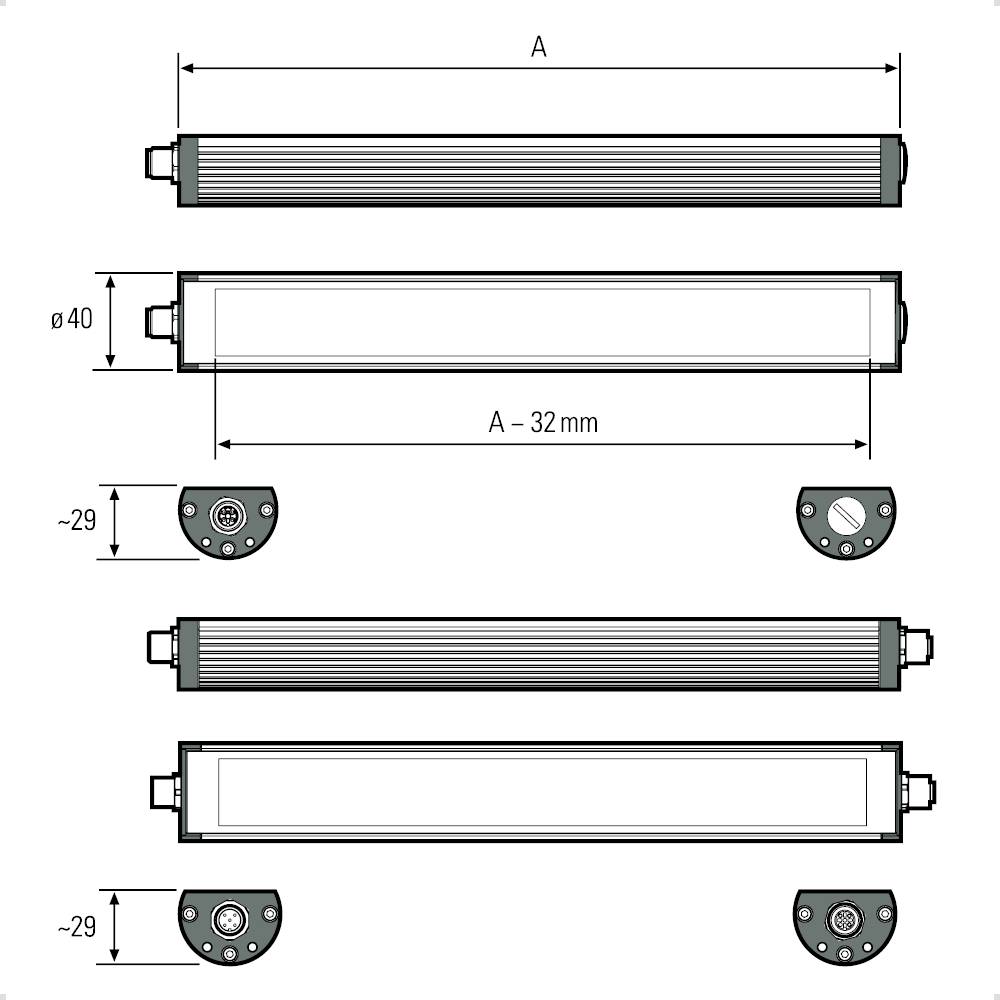

- Length
1540 mm
- Width
40 mm
- Height
29 mm
- Dim
(L x W x H) 1540 x 40 x 29 mm
n.rel.
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 2383367 LED2WORK Industrial LED indicator light TUBELED_40 Element Black 51 W 6180 lm 100 ° (L x W x H) 1540 x 40 x 29 mm 1 pc(s
Description
LED surface-mounted lamp
TUBELED_40 element
As much as necessary, as little as possible ...
... to turn an LED light into a good LED machine and industrial light. The TUBELED_40 element is primarily used for "dry" machines and systems, without chip casting and cooling and lubricants. Rougher production environments are covered by TUBELED_40 II, which also contributes a large part of the components to the TUBELED_40 element and thus makes the lamp interesting for users, in which a higher degree of protection has no significance. Apart from that, the TUBELED_40 element with the rated protection class IP54 is well positioned and has everything was needed by a good LED machine lamp, in order to be used without restrictions at most workplaces.
Here are two unbeatable advantages of the TUBELED_40 element: The LED machine lamp is economical and the aluminum housing with black end caps and matte LED cover looks simply good.
Benefits:
Bright and flicker-free lighting, without UV and IR components
Generous light emission area and 100° surface light
Slim casing and different lengths
Quick and easy upgrading and retrofitting of machines and plants
Temperature-proof and splash-protected
Also for high ambient temperatures
Electrically linkable variants (cascadable)
Application areas:
Plastics processing: Injection molding machines, extruders, blow molding machines
Metal processing: Microprecision machines, eroding machines, punching automation
Wood working
Installations for assembly and packaging
Wherever narrow installation conditions prevail
This text is machine translated.
