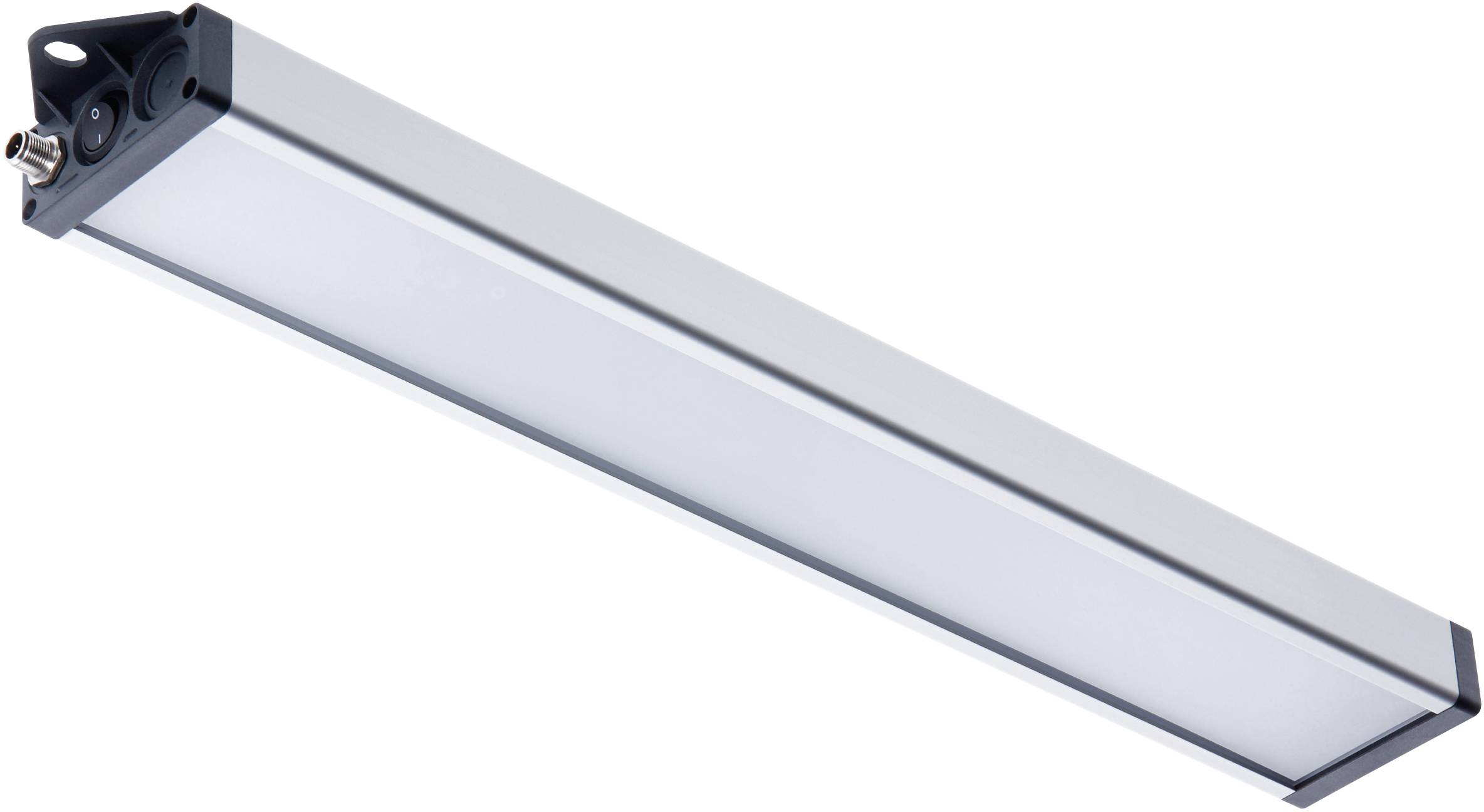

LED2WORK Industrial LED indicator light UNILED SL RGB-W 38 W 828 lm, 1772 lm, 662 lm, 4520 lm 100 ° 24 V DC 1 pc(s)
Product type
Industrial LED indicator light
Operating voltage
24 V DC
Power
38 W
Luminous flux (Φ)
828 lm
1772 lm
662 lm
4520 lm
IP rating
IP50
Datasheet (PDF)
EAN:
Part number:
Item no:
Highlights & Details
LED2WORK 110994-13 Signal lamp 1 pcs
- High-performance LED cluster with separate LED chips for white light and RGB
- Robust aluminum housing with integrated attachment for horizontal installation
- Can also be swiveled optionally with wall or swivel angles
- Bright illumination of system workplaces and work areas with 5200-5700 K daylight white
- Beam angle 100° and color reproduction Ra >85 in daylight white
- Cover with opal white masking
- Signal by changing the light color - all colors of the RGB color space can be selected
- Use for ambient temperatures from -10°C to +40°C.
- Heat is dissipated to the rear via aluminum base
- Protection class IP 50 and above average service life > 60,000h (L70/B10)
- Connection voltage 24V DC via standardized M12 plug connection
- Manufactured in Germany
Technical specifications
- Fastening: Plastic straps on the housing (according to drawing)
- Assembly: 56 SMD RGB-W Cluster
- Glare shield: mat cover made of plastic
- Color rendering (Ra): RA>85
- Weight (net): 2.0 kg
- Lifetime > : 60,000 operating hours
- Light output: Approx. 114.7 lm/W.
- Light distribution: Direct / direct
- Mains connection: 24 V DC connection (machine voltage);M12 sensor plug
- Risk group (DIN EN 62471): Free group
- Product type
Industrial LED indicator light
- Type
UNILED SL RGB-W
- LED features
multicolour
- Operating voltage
24 V DC
38 W
- Min. colour temperature
5200 K
- Colour temperature (max.)
5700 K
- Luminous flux (Φ)
828 lm
1772 lm
662 lm
4520 lm
- Radiation angle
100°
- LEDs
56
- Connection
M12 plug
- Material
Aluminium
IP50
- Protection class
III
- Min. temperature
-10 °C
- Max. temperature
+45 °C
n.rel.
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 2258506 LED2WORK Industrial LED indicator light UNILED SL RGB-W 38 W 828 lm, 1772 lm, 662 lm, 4520 lm 100 ° 24 V DC 1 pc(s)
Description
UNILED SL RGB-W
Universal, shadow-free and signal-capable
The UNILED SL RGB-W is the first system lamp, which in addition to balanced lighting also offers a signal function via changing the light color or by flashing.
During the lighting system workstations have a pleasant, motivating light atmosphere.
The opal white fade-out produces a homogeneous, glare and shadow-free illumination at the same time with a strong light yield.
Status changes in the work area can be signaled by a color change, for example toward green or red light, or by intermittent flashing.
APPLICATION AREAS
System workstations
Optical control workstations
Test workstations
Color and paint tests
Also used in machines without KSS and chip casting
YOUR BENEFITS
Homogeneous, low-shade, glare-free illumination without UV and IR component
Pleasant atmosphere thanks to daylight white 5200–5700K and signal function via different colors
The white light has a very good reproduction of colors and contrast values
Opal white fade-out for glare-free illumination
Signaling by changing the light color or interval flashing
Integrated mounting straps
