LED2WORK Light fixture SYSTEMLED EVO - ECO Tageslichtweiss 34.5 W 5970 lm 90 ° (L x W x H) 1342 x 139 x 48 mm 1 pc(s)
Product type
Light fixture
Power
34.5 W
Colour temperature type
5700 K
Luminous flux (Φ)
5970 lm
IP rating
IP40
Datasheet (PDF)
EAN:
Part number:
Item no:
Technical specifications
- Design: LED system light
- SMD LED lamp
- Total output including driver: 38 W
- Lamp power 34.5 W
- Lamp light current 5970 lm
- Light output 173 lm/W
- Light distribution: Direct
- Light color: 5700K 3-step Macadam
- Connection value light 120-277VAC, 50 - 60 Hz
- Operating device: Integrated
- Connection lamp: Plug
- Protection class: IP40
- Protection class: I
- Fade-out: Micro-prisms
- Beam angle: 90°
- Operating temperature: -10 °C - +50 °C
- Colour reproduction (Ra): >90 (typical 95)
- Lamp life > 100,000 h (L80/B10)
- Material housing: Aluminium and PMMA
- Height [B] x width [C]: 48 mm x 139 mm
- Length [A]: 1342 mm
- Weight: 3650 g
- Gross weight 5190 g
- Risk group (DIN EN 62471): Free group
- Mounting accessories: Optional
- Manufactured in: Germany
- Special feature: Externally dimmable/switchable
- Dimmable: Yes
- Product type
Light fixture
- Type
SYSTEMLED EVO - ECO Tageslichtweiss
- LED features
dimmable
- Min. operating voltage
120 V AC
- Max. operating voltage
277 V AC
- Operating voltage
120 - 277 V AC
34.5 W
- Colour temperature type
5700 K
- Luminous flux (Φ)
5970 lm
- Radiation angle
90°
- Connection
Plug
- Material
Aluminium
PMMA
IP40
- Protection class
I
- Min. temperature
-10 °C
- Max. temperature
+50 °C
- Length
1342 mm
- Width
139 mm
- Height
48 mm
- Dim
(L x W x H) 1342 x 139 x 48 mm
n.rel.
I
139 mm
None
AC
345-345 W
Aluminium
Screw-on plate
90-100
1342 mm
48 mm
LED not exchangeable
120-277 V
IP40
TRUE
TRUE
5700-5700 K
38 W
5970 lm
White
173 lm/W
C
Documents & Downloads
Datasheet
Datasheet 3384472 LED2WORK Light fixture SYSTEMLED EVO - ECO Tageslichtweiss 34.5 W 5970 lm 90 ° (L x W x H) 1342 x 139 x 48 mm 1 pc(s)
User & Safety Instructions
User & Safety Instructions 3384472 LED2WORK Light fixture SYSTEMLED EVO - ECO Tageslichtweiss 34.5 W 5970 lm 90 ° (L x W x H) 1342 x 139 x 48 mm 1 pc(s)

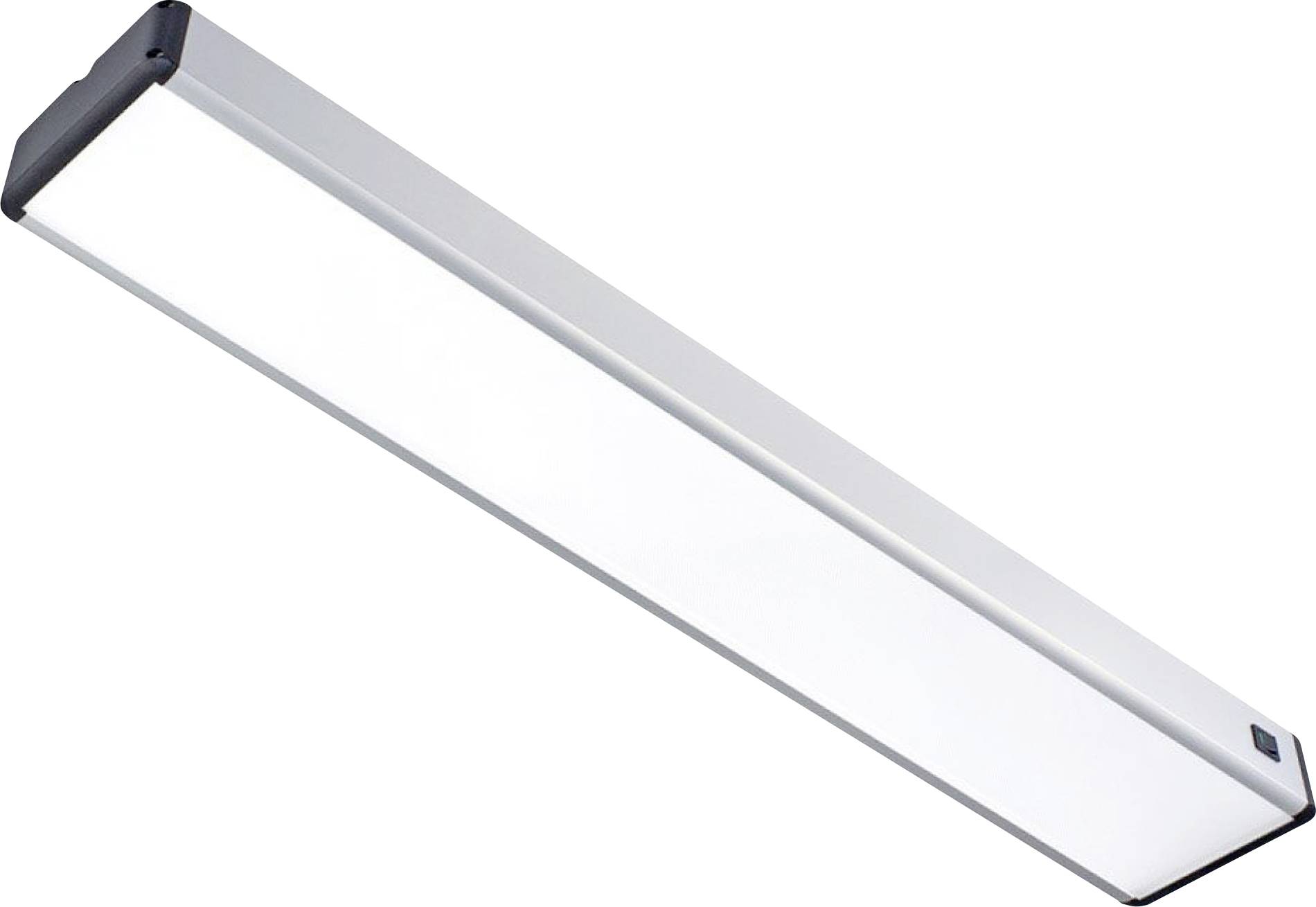

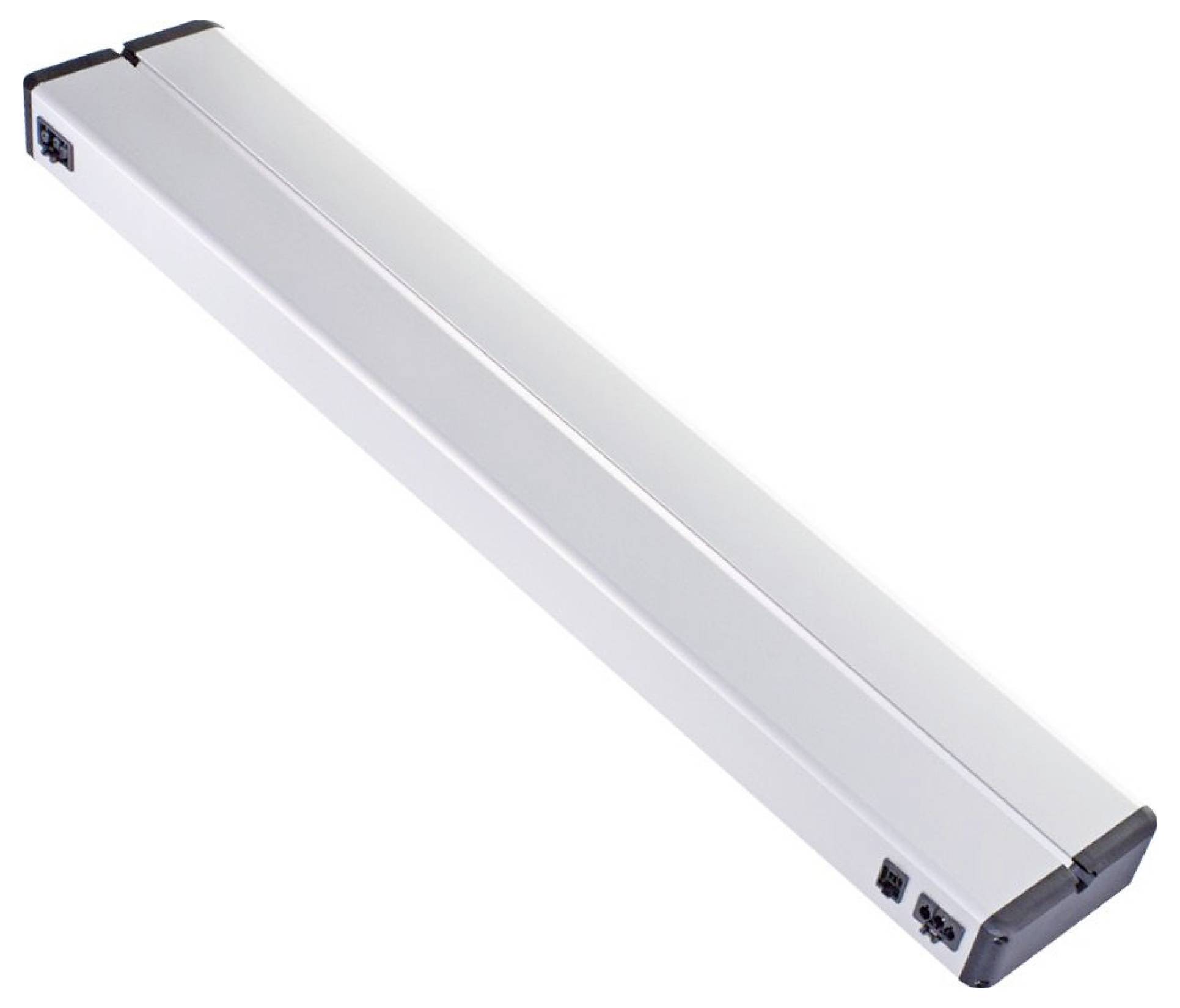

Description
The new system light series SYSTEMLED EVO LED for mounting workstation or production plants is compatible with the common system working place systems and older system lights. SYSTEM_LED EVO is therefore the first choice when it comes to replacing older system lights with fluorescent tubes. The dimensions of the LED-lights are identical, the power supply takes place via the same plug and the power supply unit is located directly in the lamp casing - the replacement of older fluorescent technology with modern LED-technology was never so comfortable. The SYSTEM LED offers a particularly efficient, homogeneous and glare-free illumination of work surfaces. In addition to daylight white or neutral white light, you can choose between Power versions optimized for light current and performance ECO versions. All lamps can be cascaded. The system light SYSTEM LED EVO is available in five lengths.
