LED2WORK Light fixture SYSTEMLED SurfaceOne 19550 lm 90 ° 1 pc(s)

1/6
Product type
Light fixture
Luminous flux (Φ)
19550 lm
Energy efficiency rating
n.rel.
Type
SYSTEMLED SurfaceOne
Min. operating voltage
200 V AC
Datasheet (PDF)
EAN:
Part number:
Item no:
Unavailable

Sales and shipping:
Conrad ElectronicTerms & Conditions

Technical specifications

Product type

Light fixture

Type

SYSTEMLED SurfaceOne

Min. operating voltage

200 V AC

Max. operating voltage

277 V AC

Operating voltage

200 - 277 V AC

Min. colour temperature

4000 K

Colour temperature (max.)

6500 K

Luminous flux (Φ)

19550 lm

Radiation angle

90°

Connection

Plug

Protection class

IP40

RoHS-compliant

Yes

n.rel.

Documents & Downloads

Datasheet

Datasheet 3741717 LED2WORK Light fixture SYSTEMLED SurfaceOne 19550 lm 90 ° 1 pc(s)

User & Safety Instructions

User & Safety Instructions 3741717 LED2WORK Light fixture SYSTEMLED SurfaceOne 19550 lm 90 ° 1 pc(s)

Description

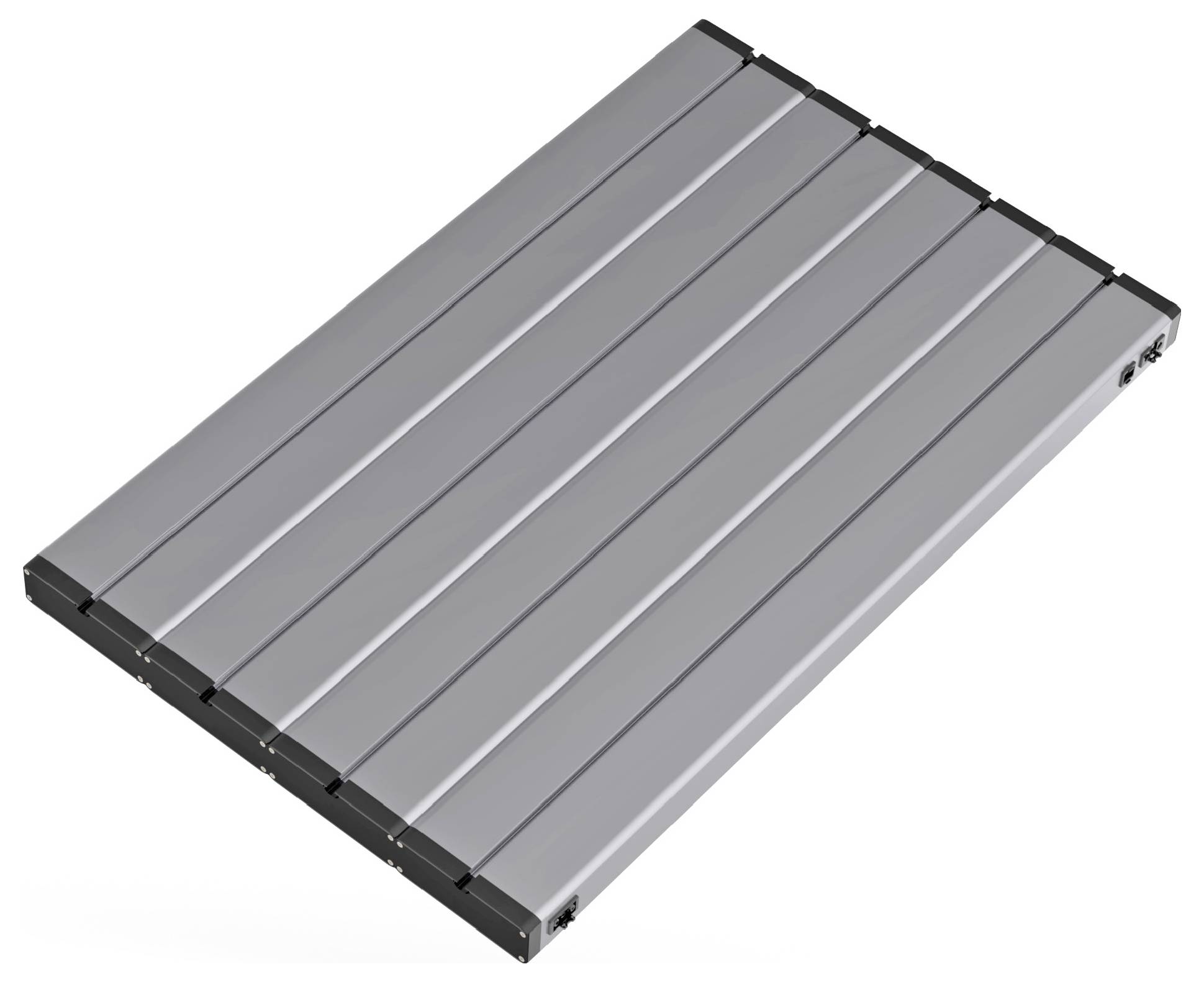

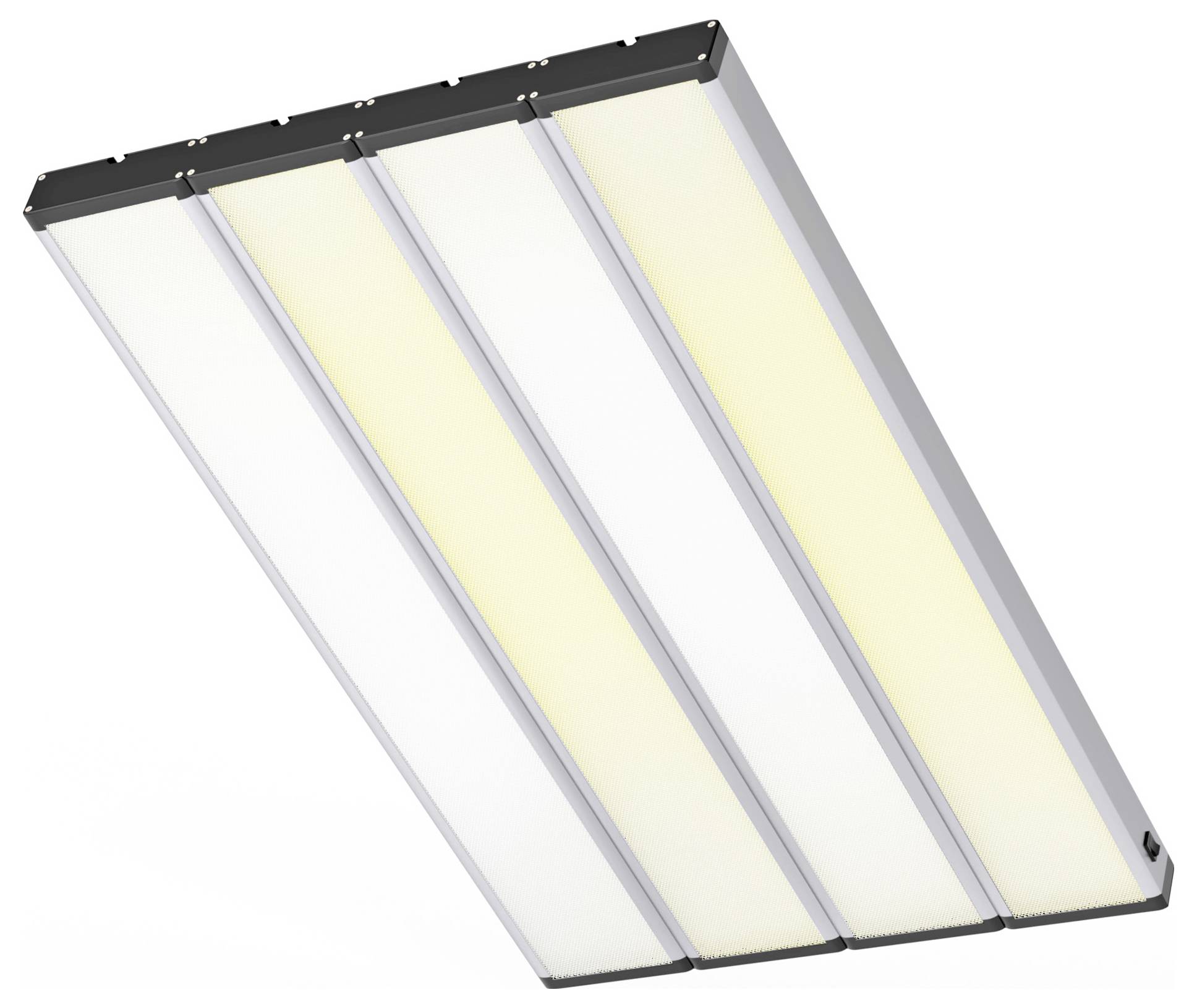

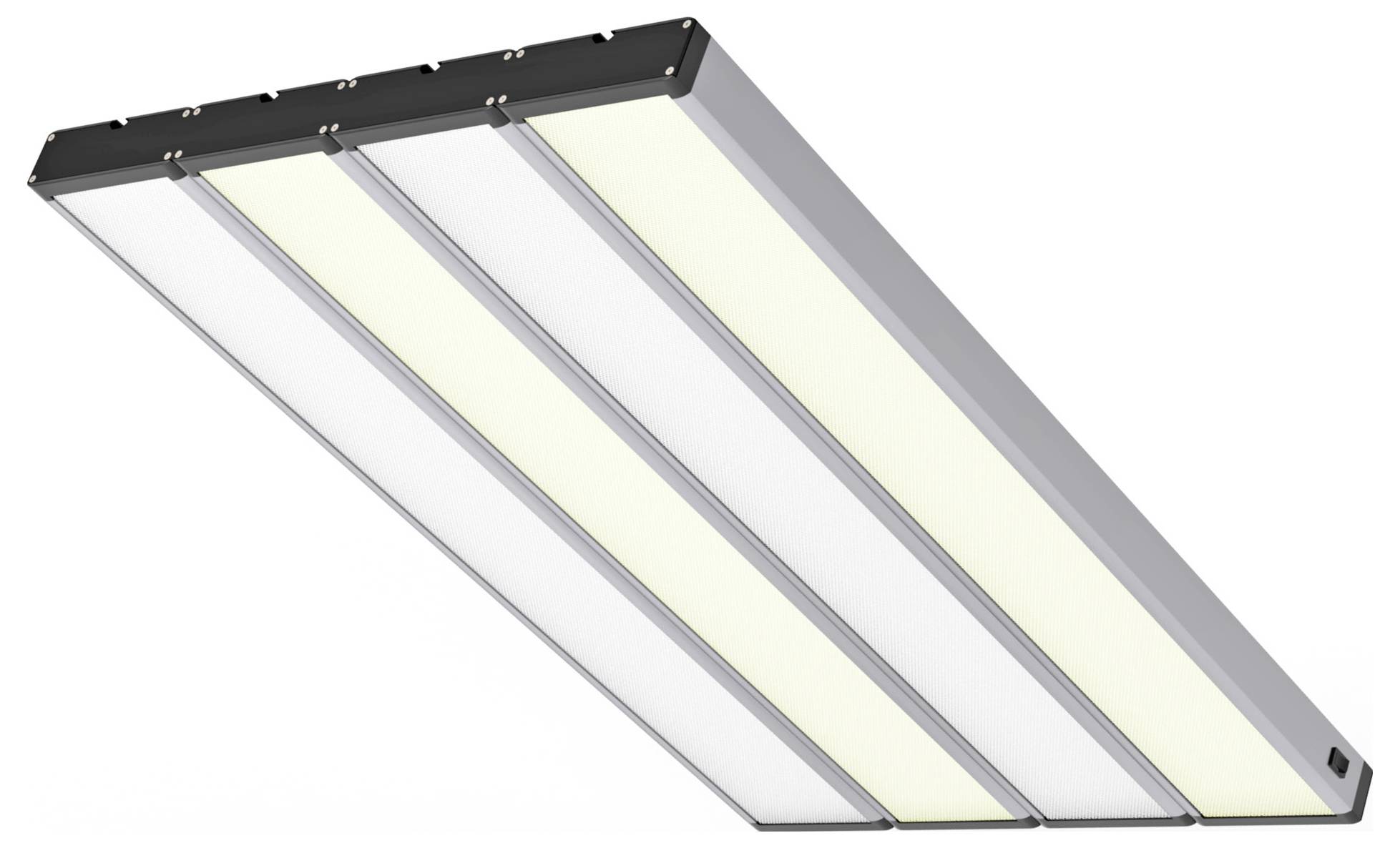

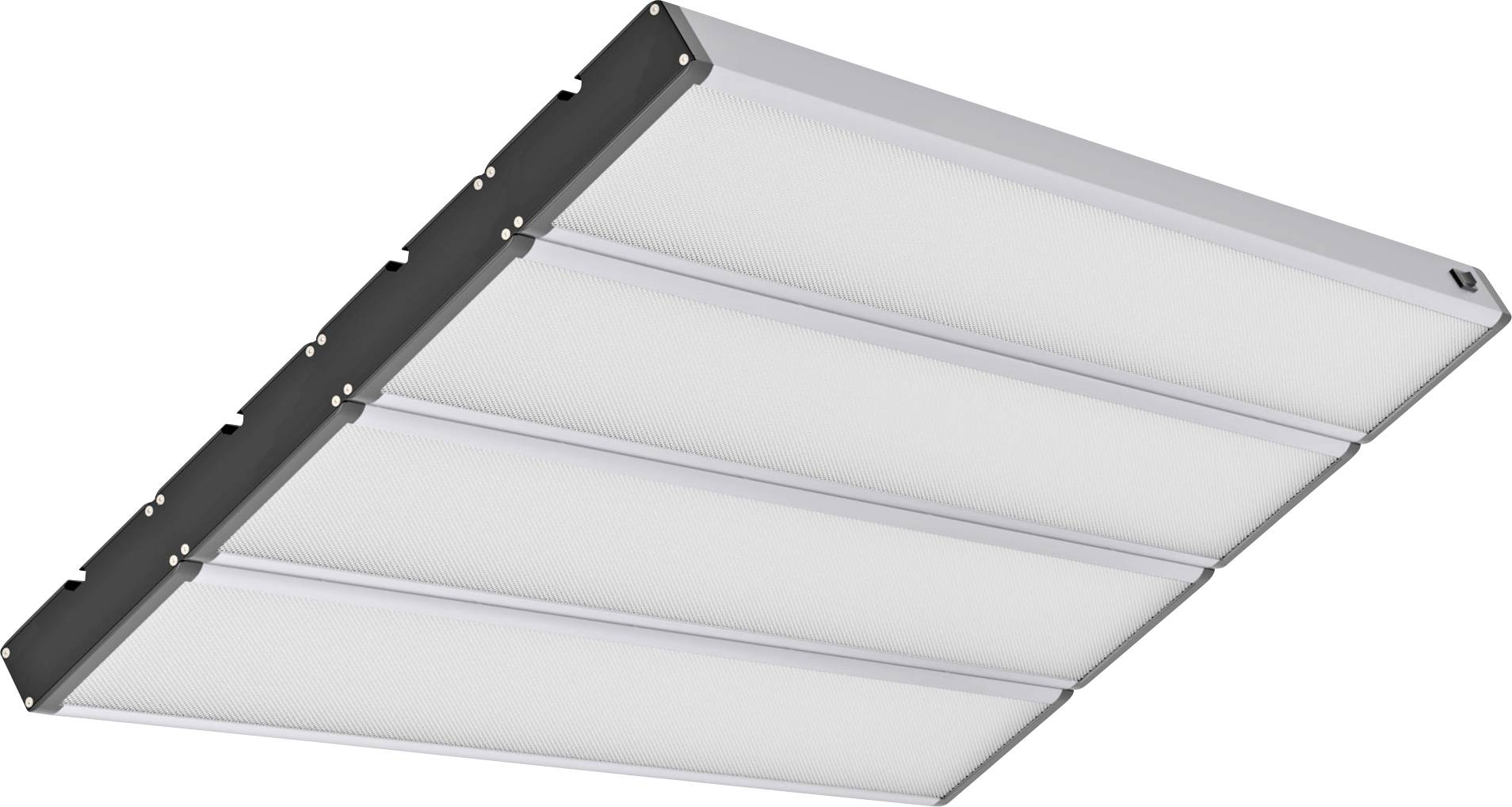

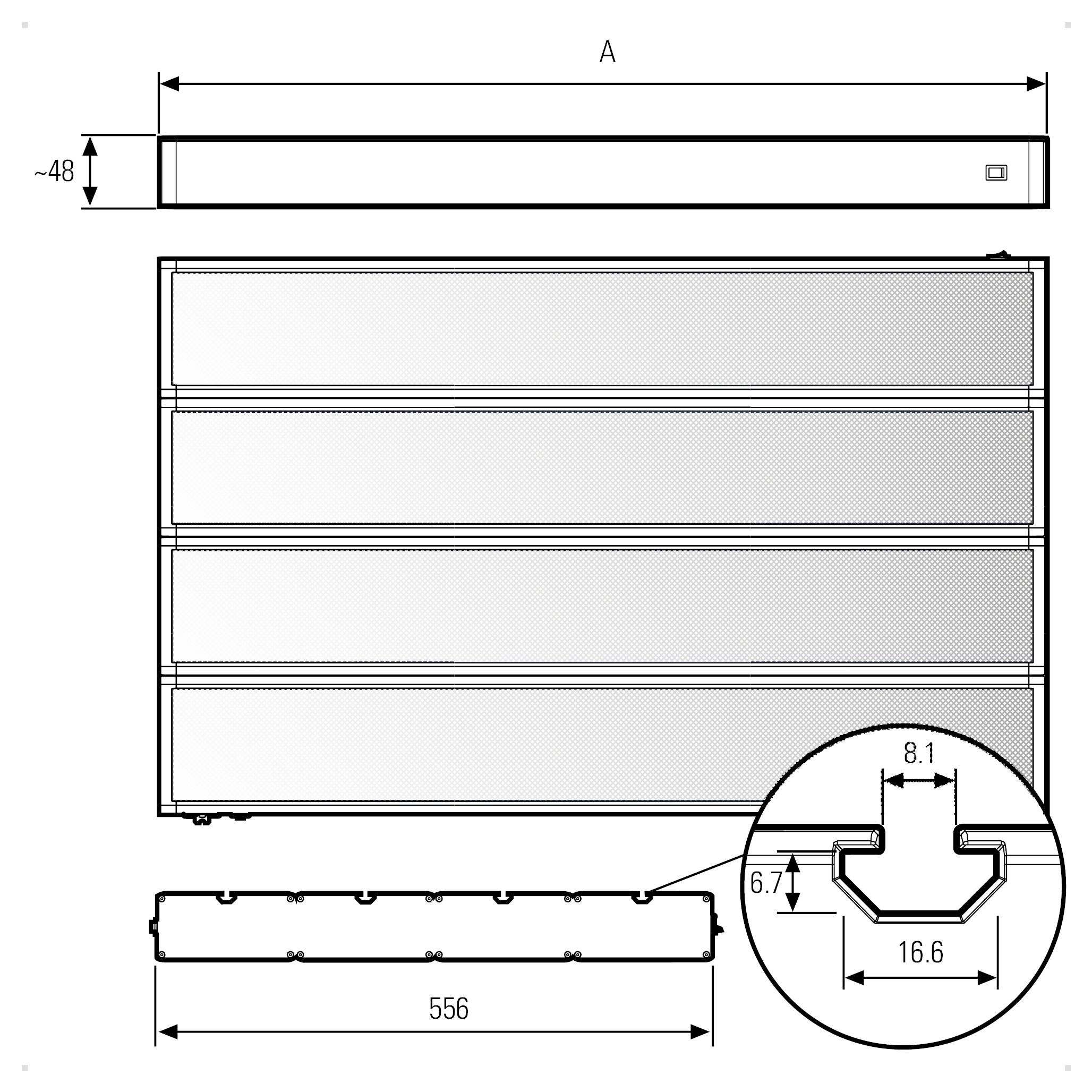

The SYSTEMLED SurfaceOne is a special LED light for testing and mounting areas that meets the requirements of the VDA 16 module and thus provides standardized lighting for visually challenging control tasks. It provides optimum light with color temperatures of 4000 K and 6500 K, which are arranged alternately in the construction of lamps, as well as color reproduction of Ra > 90 for the precise inspection of surfaces and the detection of errors or unevenness. The micro-prism cover ensures even illumination without visible light spots. Thanks to its high light output, excellent color reproduction and low-glare light with a UGR value of less than 22, the SYSTEM LED SurfaceOne allows you to work effortlessly even with long visual inspections. The lamp is available in a four-way or three-way light source and in three different lengths. It is fixed via T-slots on the back side. The lamp is maintenance-free and has a long life span.

This text is machine translated.
