LED2WORK Voltage transformer 210100-13 36 W 24 V (L x W x H) 73.6 x 42.8 x 32.5 mm Piece 1 pc(s)
Packaging type
Piece
Product type
Voltage transformer
Operating voltage
24 V
Power
36 W
Energy efficiency rating
n.rel.
Datasheet (PDF)
EAN:
Part number:
Item no:
Technical specifications

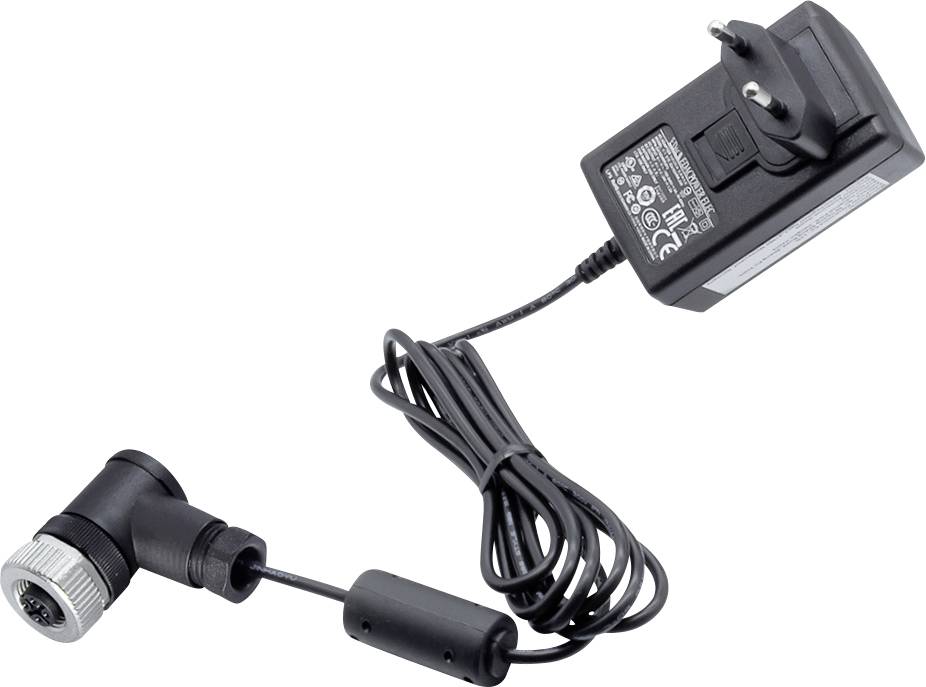

- Model: LED2WORK plug power supply 24V DC, 36 W.
- Design: Plug power supply with EURO plug and M12-A socket angled
- Weight: 200 g
- Special feature: AC EURO exchange plug
- Note: Not resistant to oil and KSS!
- Dimensions (mm): 73.6 x 42.8 x 32.5
- Output voltage: 24V/DC
- Output Current 1500 mA
- 36 W power output
- Voltage range 22...27V DC
- Input frequency: 50–60 Hz
- Input voltage 110...240V AC
- Input current (115V AC): 1000 mA ± 1%
- Input current (230V AC): 500 mA ± 1%
- Cable length: 1,8 m
- Humidity in use: 10... 90% (non-condensing)
- Connection to lamp: M12 socket (4-pin), A coded
- Packaging type
Piece
- Product type
Voltage transformer
- Type
210100-13
- Operating voltage
24 V
- Operating current
1500 mA
36 W
- Lead length
1.8 m
- Connection
M12 socket
- Protection class
IP20
- Min. temperature
0 °C
- Max. temperature
+40 °C
- Length
73.6 mm
- Width
42.8 mm
- Height
32.5 mm
- Dim
(L x W x H) 73.6 x 42.8 x 32.5 mm
n.rel.
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 2383404 LED2WORK Voltage transformer 210100-13 36 W 24 V (L x W x H) 73.6 x 42.8 x 32.5 mm Piece 1 pc(s)
Description
Our universal 36 W plug power supply – here with angled M12 socket, if the place for connecting is kapp or just looks more elegant!
Plug-in power supply with fixed voltage 24V DC for connecting a LED2WORK lamp up to max. 36 Watt.
The lamp is connected via a 1.8 m cable with M12 A-coded connector. The voltage converter is designed for a normal use of lamps at workplaces with an IP20 degree of protection and offers full output power without fan cooling.
The power supply offers the plug-in/plug-out option to exchange the EU plug for an optional adapter plug.
This text is machine translated.
Plug-in power supply with fixed voltage 24V DC for connecting a LED2WORK lamp up to max. 36 Watt.
The lamp is connected via a 1.8 m cable with M12 A-coded connector. The voltage converter is designed for a normal use of lamps at workplaces with an IP20 degree of protection and offers full output power without fan cooling.
The power supply offers the plug-in/plug-out option to exchange the EU plug for an optional adapter plug.
This text is machine translated.
