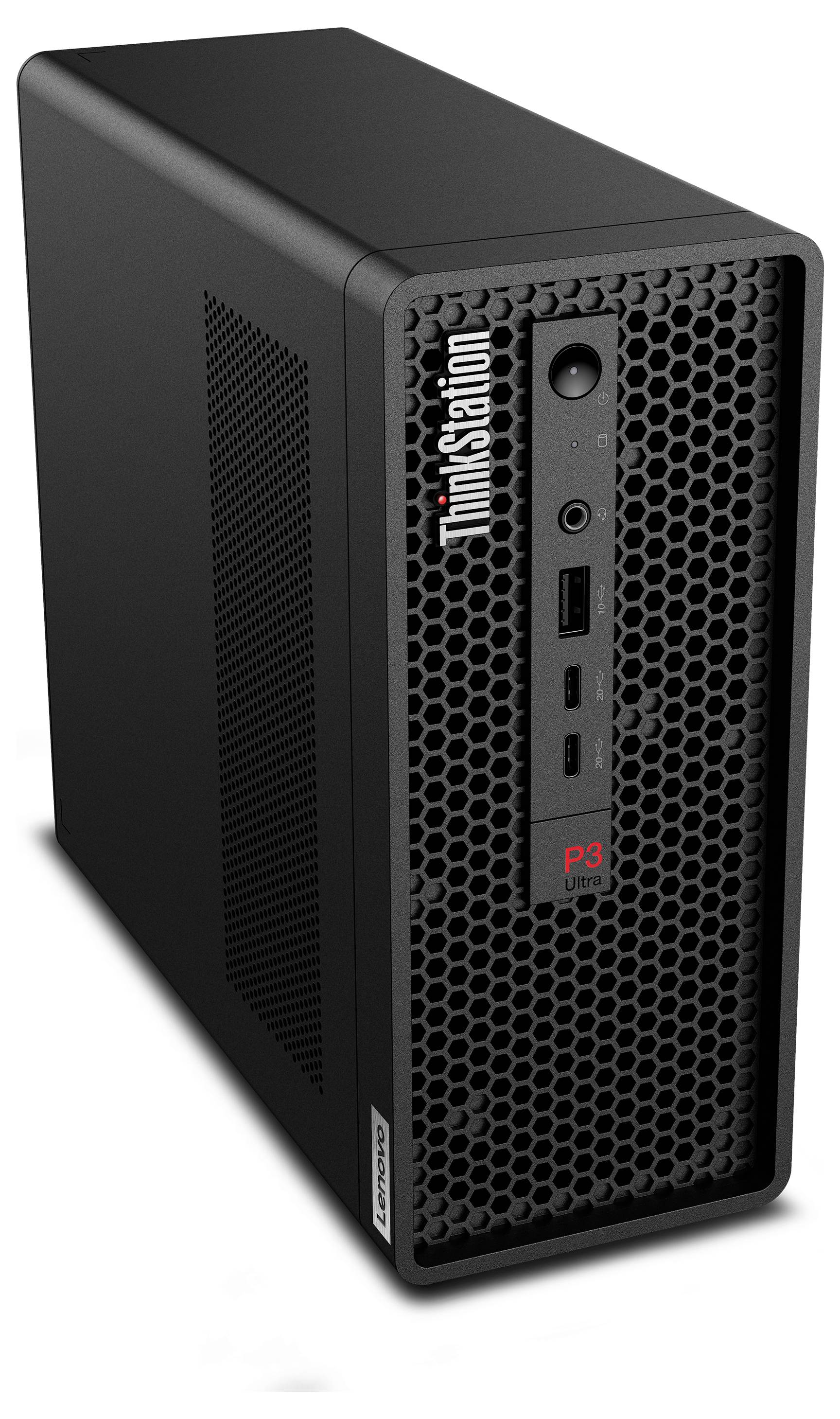

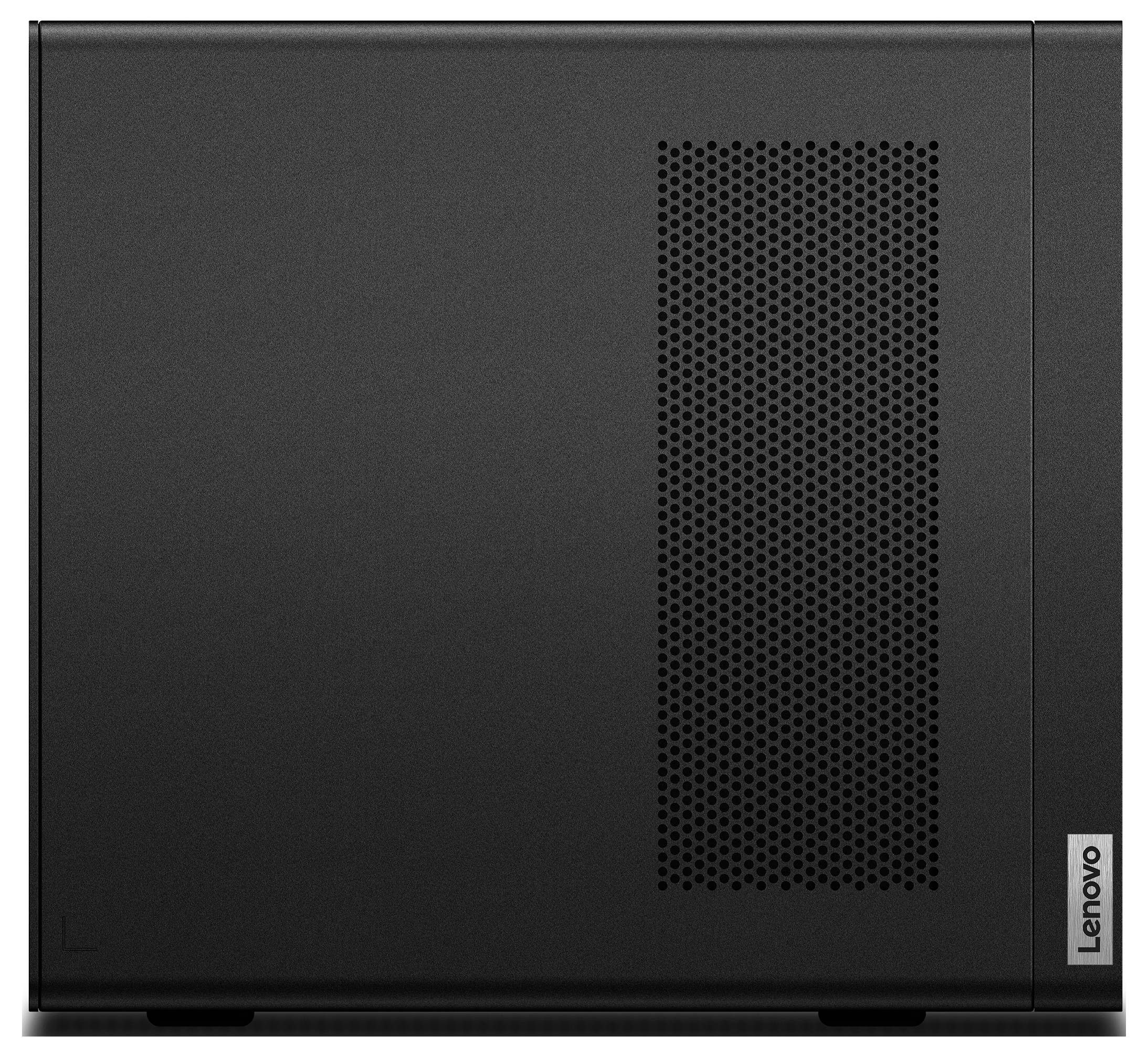

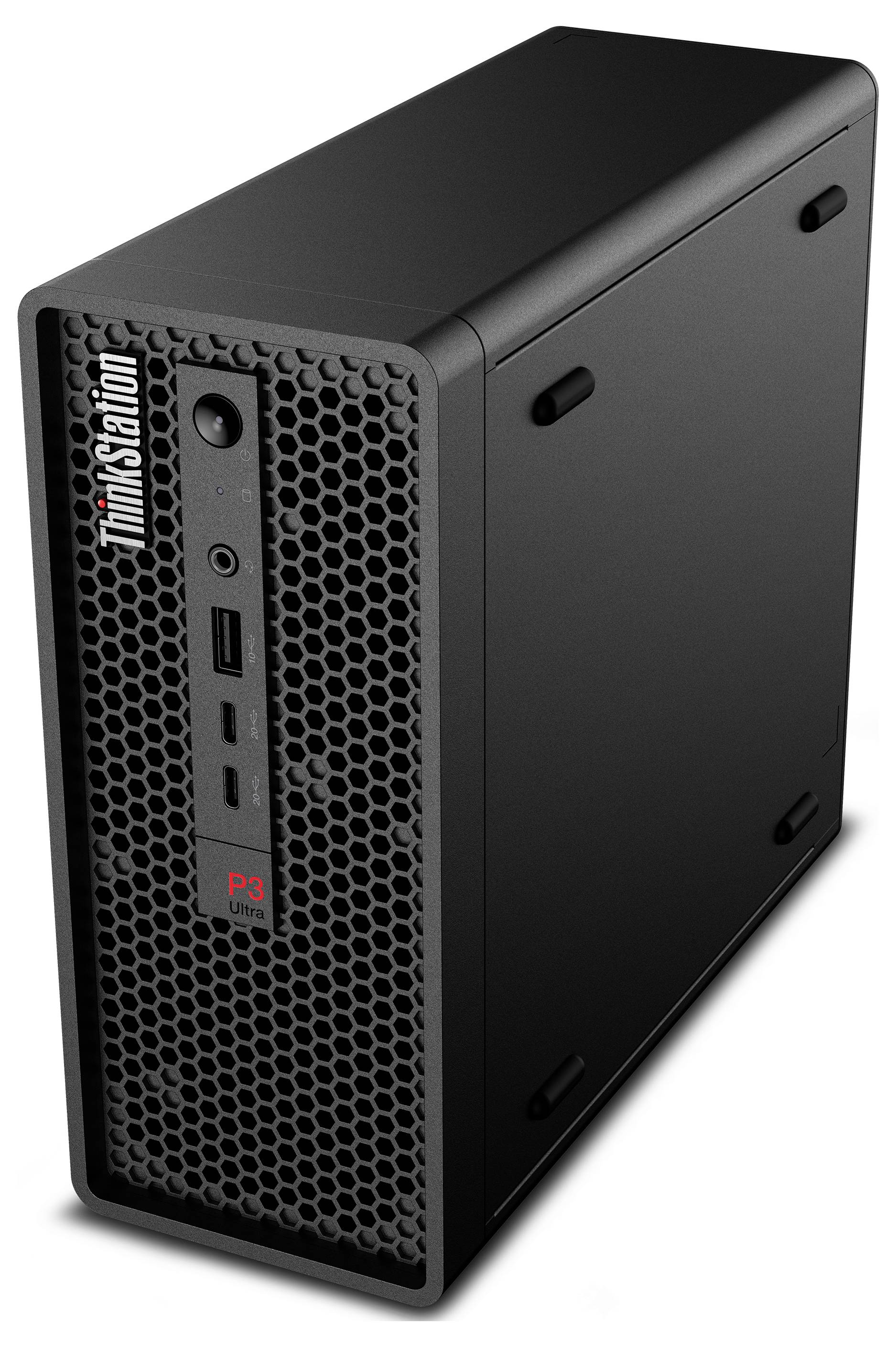

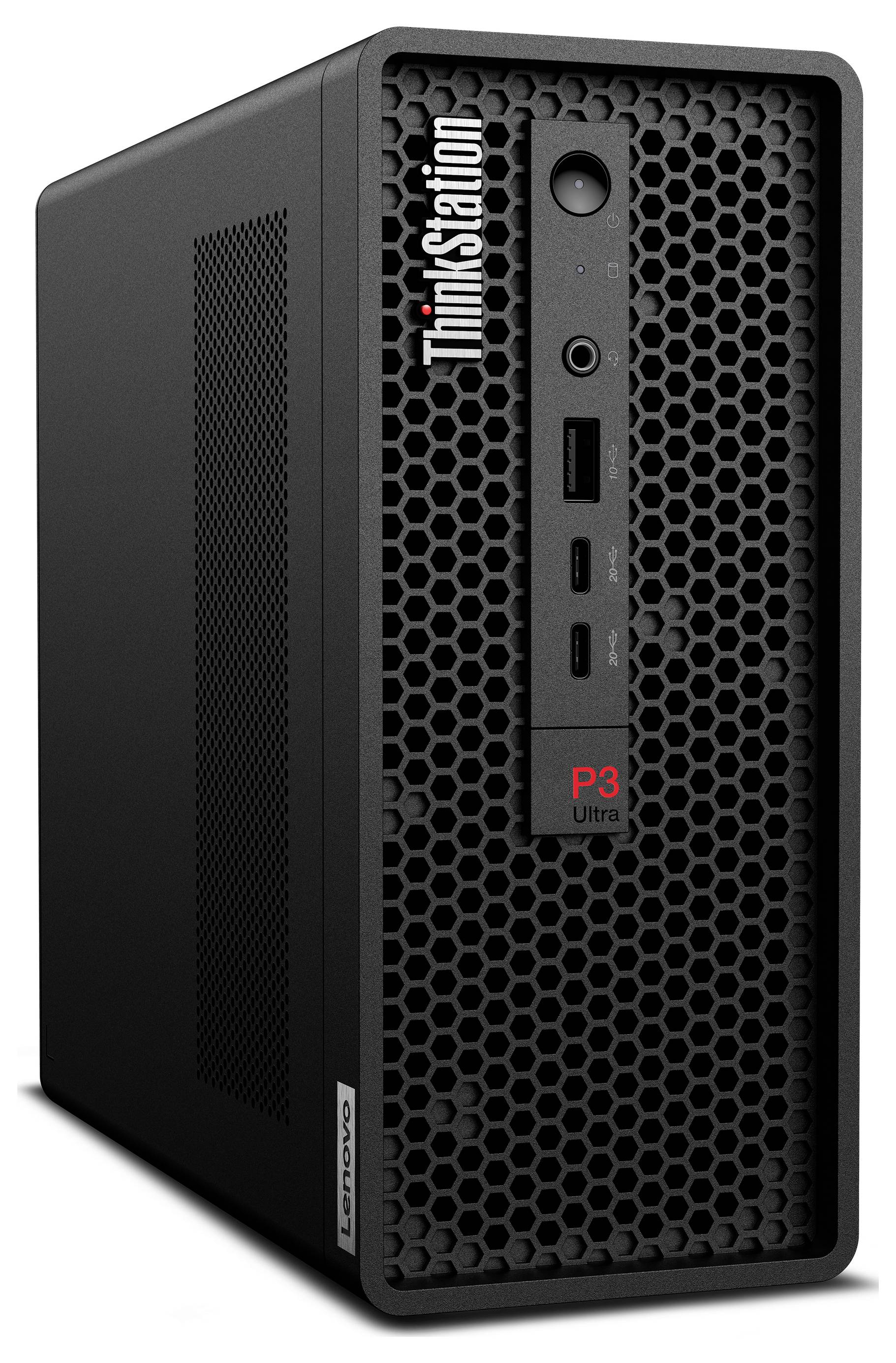

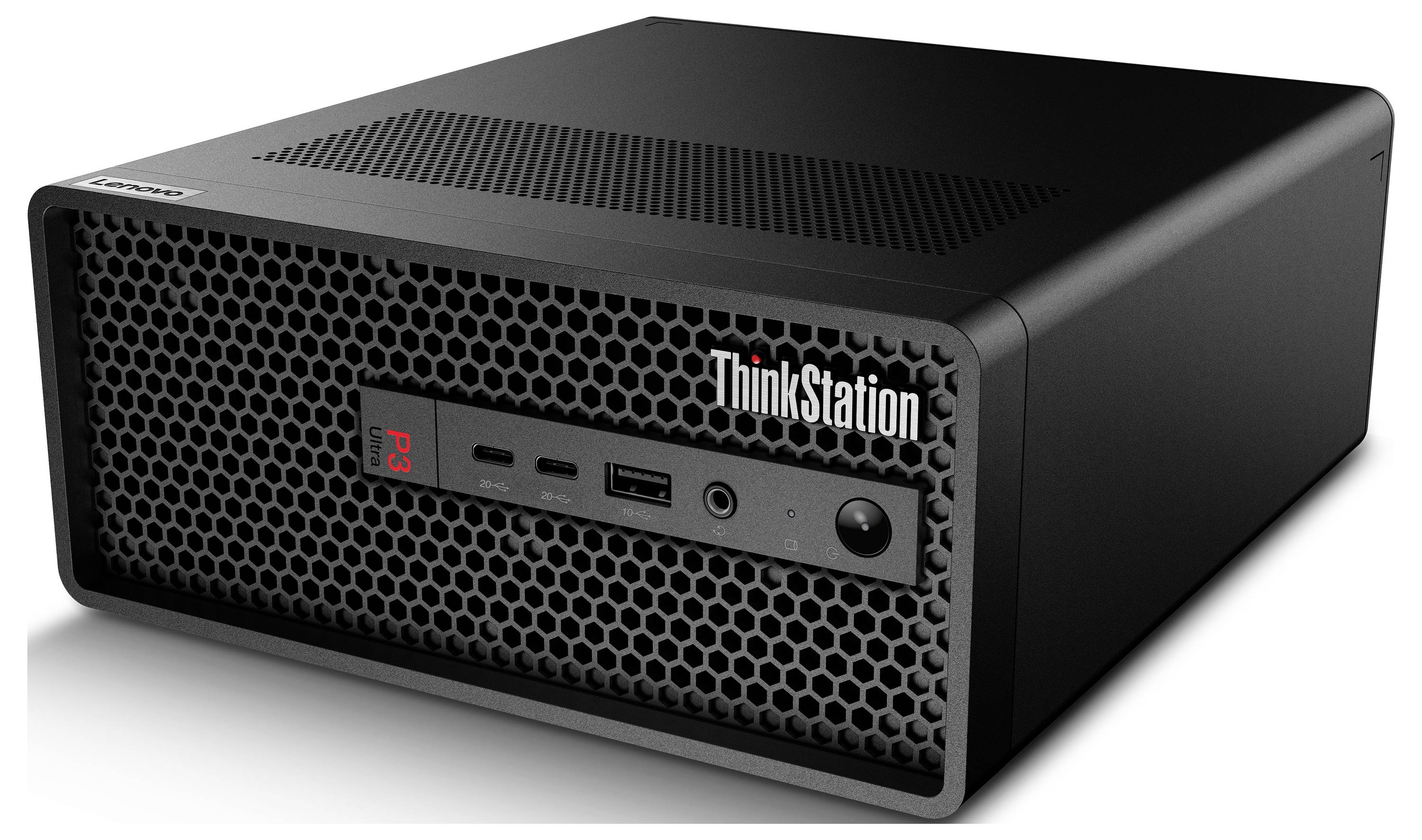

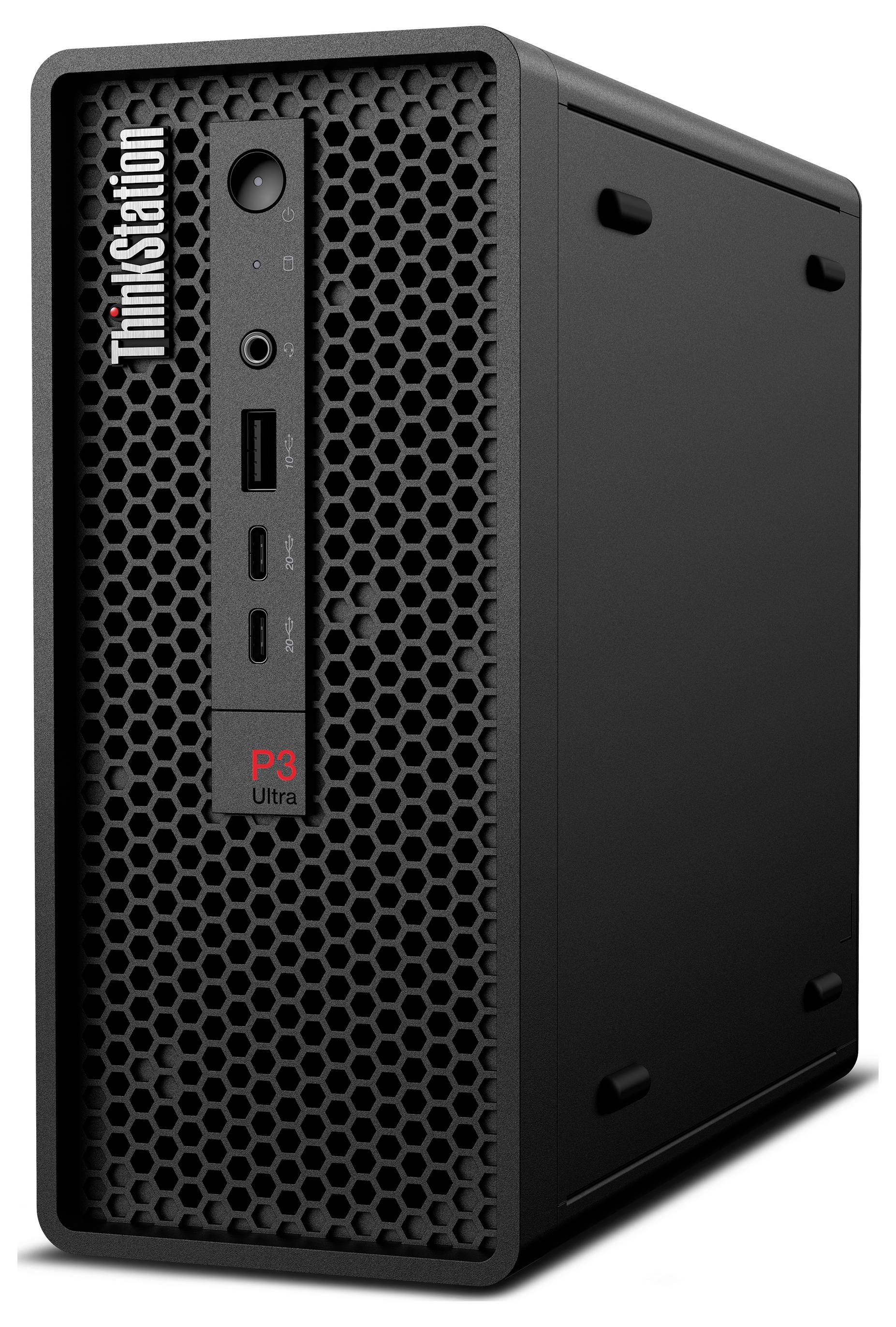

Name: Lenovo Workstation ThinkStation P3 Ultra SFF G2 2.5 cm (1 inch) Intel® Core™ Ultra 9 285 5.6 GHz 16 GB RAM 512 GB SSD In
Brand: Lenovo
SKU: 3754483

Highlights & Details

Lenovo ThinkStation P3 Ultra SFF G2 2.5 cm (1 inch) Workstation

Display: 2.5 cm (1 inch)
Intel® Core™ Ultra 9 285 24 core(s) / max. 5.6 GHz
RAM: 16 GB DDR5 RAM 5600 MHz
512 GB SSD
Intel Intel graphics Nvidia 16 GB GDDR7
Windows® 11 Pro

Pre-contractual information under the EU Data Act

Technical specifications

Intel Core Ultra 9 processor family
Internal memory type DDR5 SDRAM
Memory card slots: 2x SO-DIMM
Optical Drive Type: No.
SSD interface PCI Express 5.0
SSD form factor M.2
Built-in graphics card model: Intel graphics
Intel W880 motherboard chipset
Product type: Workstation
Keyboard included: Yes

Product type: Workstation

Model: ThinkStation P3 Ultra SFF Gen 2

Display (cm): 2.5 cm

Screen size diagonal (inches): 1 inch

CPU series: Intel® Core™ Ultra 9

CPU: Intel® Core™ Ultra 9 285

Processor/type: 285

Processor cores (No.): 24 x

CPU turbo clock speed (max.): 5.6 GHz

No. of processor E cores: 16

No. of processor P cores: 8

: 16 GB

RAM type: DDR5 RAM

Memory clock speed: 5600 MHz

No. of memory slots: 2

RAM / Max. upgrade: 128 GB

Onboard graphics card: Yes

Onboard graphics card (GPU manufacturer): Intel

Onboard graphics card (version): Intel graphics

Dedicated graphics card (GPU manufacturer): Nvidia

Dedicated graphics card: Yes

Dedicated graphics card (memory type): GDDR7

Dedicated graphics card (memory): 16 GB

SSD size (total): 512 GB

SSD 1 type: SSD

SSD: 512 GB

SSD connection: M.2 PCIe NVMe 5.0 x4

HDD capacity (total): 0 GB

Hard drive: 0 GB

HDD 1 type: Flash

Drive: w/o hard drive

Keyboard layout: None (PC-controlled)

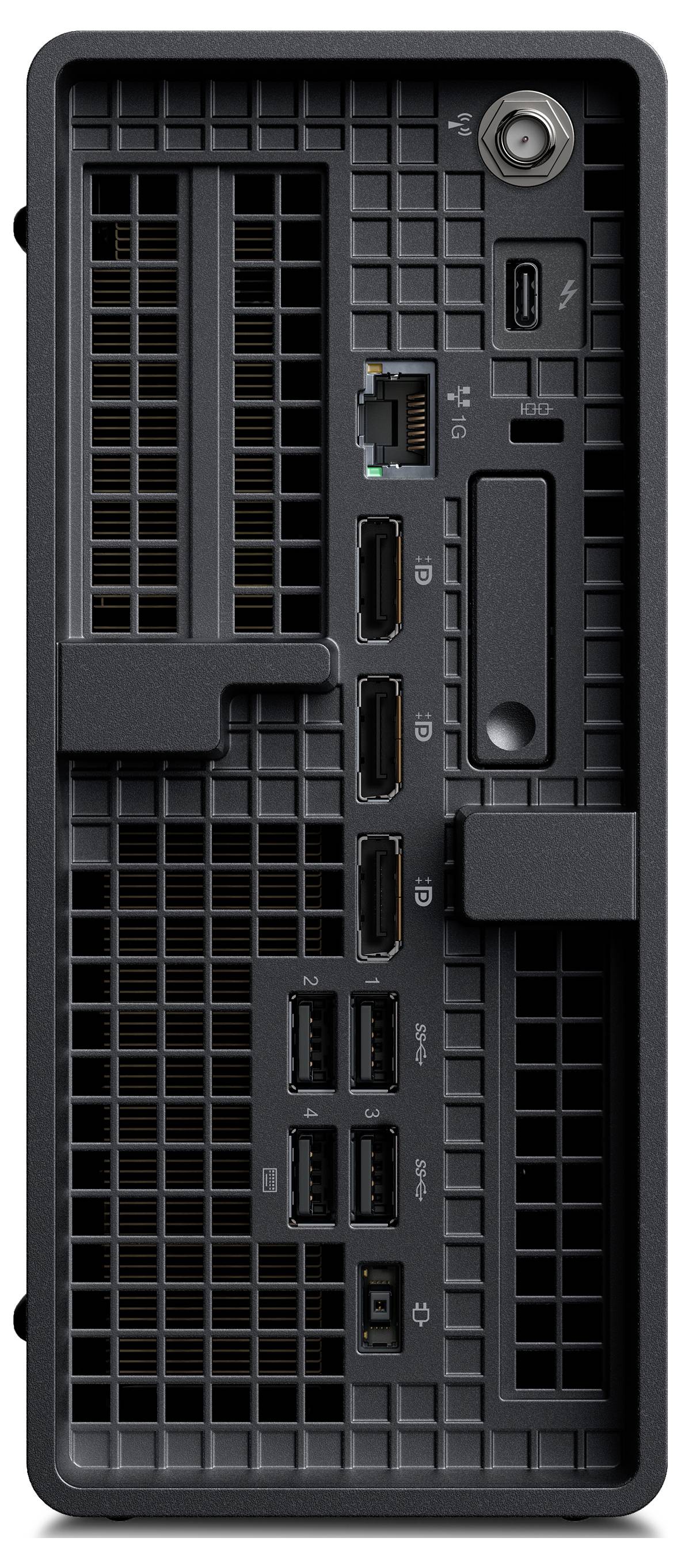

No. of DisplayPort: 3 x

No. of Gigabit LANs: 1 x

No of. USB type A 3.1 /3.2 2nd gen: 5 x

No. of USB 3.0 ports: 2 x

Interfaces: Headphone input

Factory colour: Multicolour

Width: 87 mm

Height: 202 mm

Depth: 223 mm

Weight: 3.6 kg

PSU power: 330 W

Software included: Lenovo AI now

Operating system (Version): Windows® 11 Pro

Display size: - 23 inch

Charging capacity (min.): 170 W

Charging capacity (max.): 330 W

Display: 2.5 cm (1 inch)

Memory capacity: 512 GB

10/100/1000 Mbps ports: 1 x

Wi-Fi: No

UKCA: yes

Ethernet LAN: yes

Cable lock slot: yes

NVMe: yes

Mouse included: yes

Trusted Platform Module (TPM): yes

Number of SSDs installed: 1

Number of discrete graphics cards: 1

Combo headphone/mic port: yes

Documents & Downloads

User & Safety Instructions

User & Safety Instructions 3754483 Lenovo Workstation ThinkStation P3 Ultra SFF G2 2.5 cm (1 inch) Intel® Core™ Ultra 9 285 5.6 GHz 16 GB RAM 512 GB SSD In

Features

Intel core ultra 9 285, 24C (8P + 16E)/24T, Max Turbo up to 5.6GHz, 36MB Intel Smart cache
1x 48GB SODIMM DDR5-5600 Non ECC
1x 512GB SSD M.2 2280 PCIe 5.0x4 NVMe SSD Opal
1x Nvidia RTX PRO 2000 Blackwell 16GB GDDR7
Windows 11 Pro
