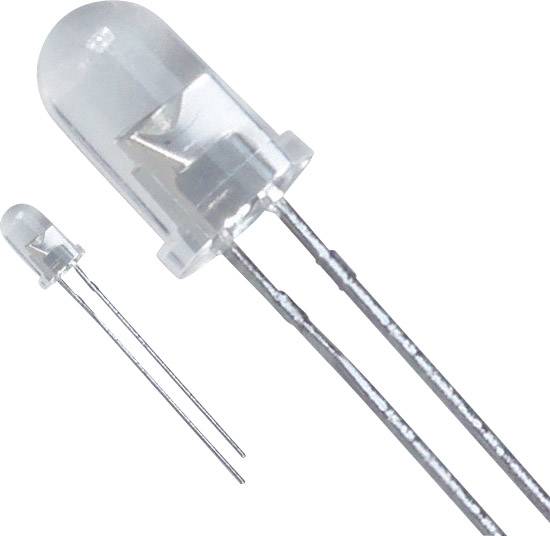

Lite-On LTL2H3KSK LED wired Yellow Circular 5 mm 2.5 cd 15 ° 30 mA 2.05 V
EAN:
Part number:
Item no:
Product type
LED wired
Forward voltage U(F)
2.05 V
Forward current I(F)
30 mA
Casing
5 mm
Type
Radial lead
Datasheet (PDF)
Quantity (Piece(s))
Savings
Package size (plus VAT.)
100
-
€ 0.09
300
11% = € 0.01
€ 0.08
Volume discounts vary depending on the seller
You save € 0.00
Number
Minimum order quantity: 100
Multiple: 100
Total (€ 0.09 / piece)
€ 9.00
plus VAT.
Technical specifications
- Product type
LED wired
- Type
LTL 2H3 ksk
- Factory colour
Yellow
- Forward voltage U(F)
2.05 V
- Forward current I(F)
30 mA
- Casing
5 mm
- Type
Radial lead
- Light intensity I(V)
2.5 cd
- Wavelength
590 nm
- Radiation angle
15°
- Type (LEDs)
Water clear
- Technology
InAlGaP
- Lens type
Circular
- Dim
(L x W x H) 31.7 x 5.9 x 5.45 mm
- Min. temperature
-40 °C
- Max. temperature
+100 °C
- Length
31.7 mm
- Width
5.9 mm
- Height
5.45 mm
- Content
1 pc(s)
Documents & Downloads
Datasheet
Datasheet 1127548 Lite-On LTL2H3KSK LED wired Yellow Circular 5 mm 2.5 cd 15 ° 30 mA 2.05 V
User & Safety Instructions
User & Safety Instructions 1127548 Lite-On LTL2H3KSK LED wired Yellow Circular 5 mm 2.5 cd 15 ° 30 mA 2.05 V
Description
Hints
All standard LED chips require a current-limiting resistor/constant current power source.
