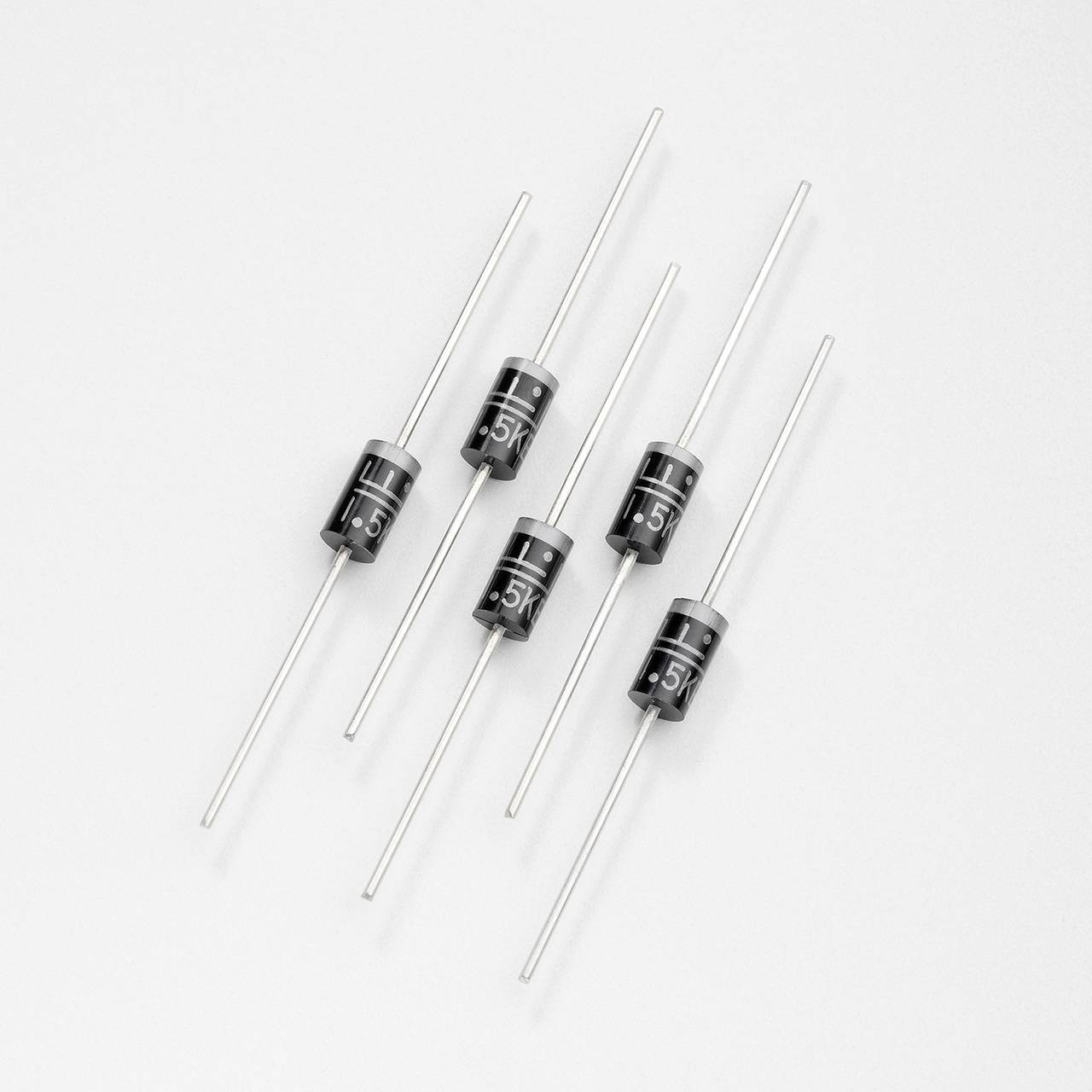

Littelfuse TVS diode 1.5KE22CA DO 201 23.1 V 1500 W Package
EAN:
Part number:
Item no:
Packaging type
Package
Enclosure
DO 201
Reverse voltage U(R)
18.8 V
Terminal voltage U(CL)
30.6 V
Power (max) P(TOT)
1500 W
Quantity (Piece(s))
Savings
Package size (plus VAT.)
1
-
€ 0.44
50
11% = € 0.05
€ 0.39
100
14% = € 0.06
€ 0.38
Volume discounts vary depending on the seller
You save € 0.00
Number
Total (€ 0.44 / piece)
€ 0.44
plus VAT.
Technical specifications
- Max Clamp Voltage (Vc) (V) 30.6 V
- Reverse Standby Voltage (VR) (VSO) 18.8 V
- Watts (W) 1500 W
- Peak Pulse Current (IPP) 10x1000 (A) 49.7 A
- Breakdown voltage (MIN VBR@IT) (V): 20.9 V
- Breaking-down Voltage (VBR@IT) (V): 23.1 V
- IR @VSO( μA) 1 μA
- On-State Current (IT) (mA): 1 mA
- Operating temperature Maximum Celsius: 175 °C
- Bipolar polarity
- DO-201 package
- Packaging type
Package
- Type
1.5KE22CA
- Enclosure
DO 201
- Manufacturer
Littelfuse
- Manuf. code
LIT
- Reverse voltage U(R)
18.8 V
- Breakdown voltage U(BR)
23.1 V
- Terminal voltage U(CL)
30.6 V
- Peak current I(pp)
49.7 A
- Power (max) P(TOT)
1500 W
- Polarity
Bipolar
- Power line protection
Yes
- Operating temperature (max.)
175 °C
- Product type
TVS diode
