Name: LogiLink 19" WALLMOUNT SOHO BOX 12U 540*400, GREY, FLATPACK 19" wall cabinet (W x H x D) 540 x 589 x 400 mm 12 U Grey-wh
Brand: LogiLink
SKU: 1651136

An empty, wall-mounted server cabinet with a glass door and lock, suitable for securely storing network devices.

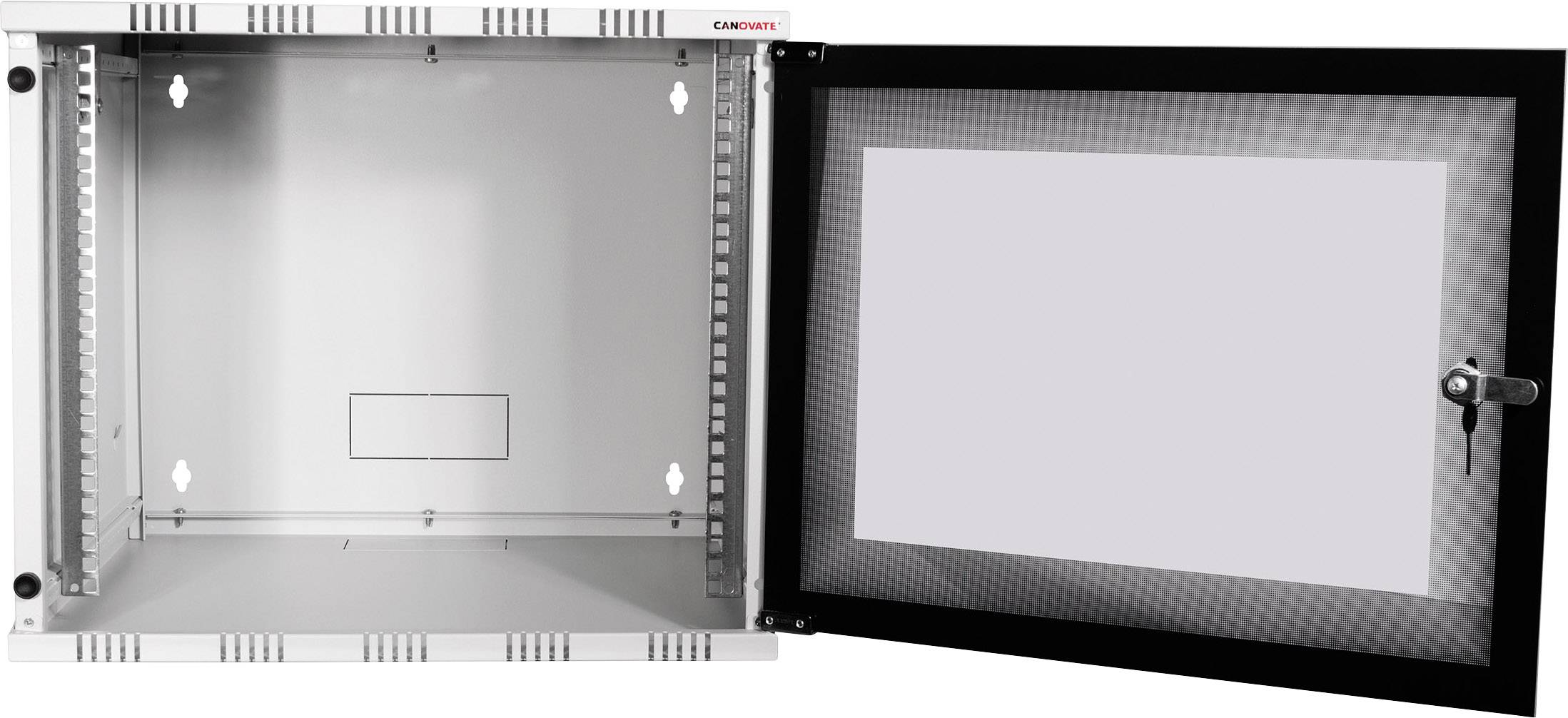

Open metal wall cabinet with a glass door, suitable for storing electronic devices. The internal mounting rails are visible on the left.

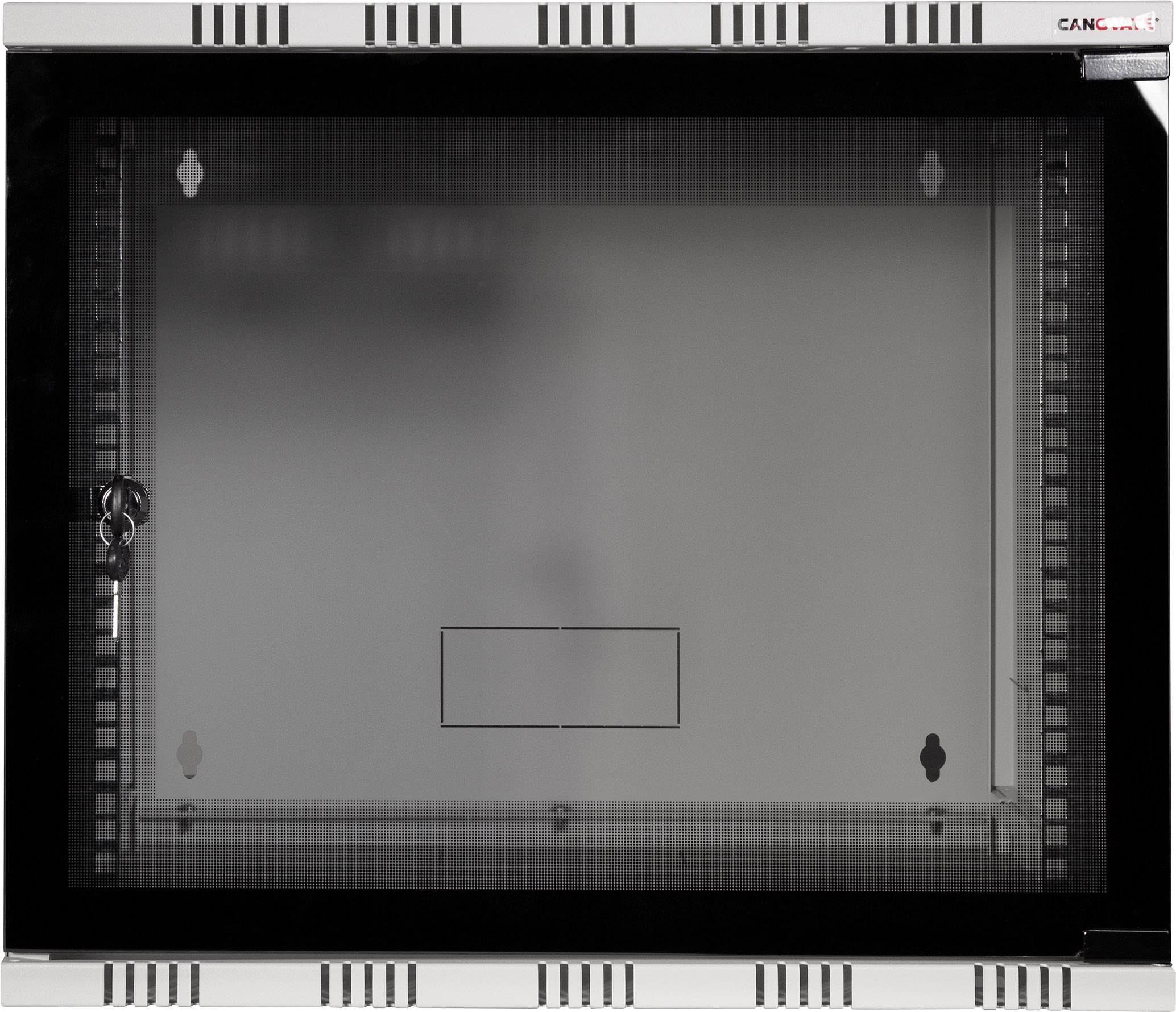

Metal cabinet with glass door and key lock. A small emblem in the top right corner. The door is transparent and shows an empty interior.

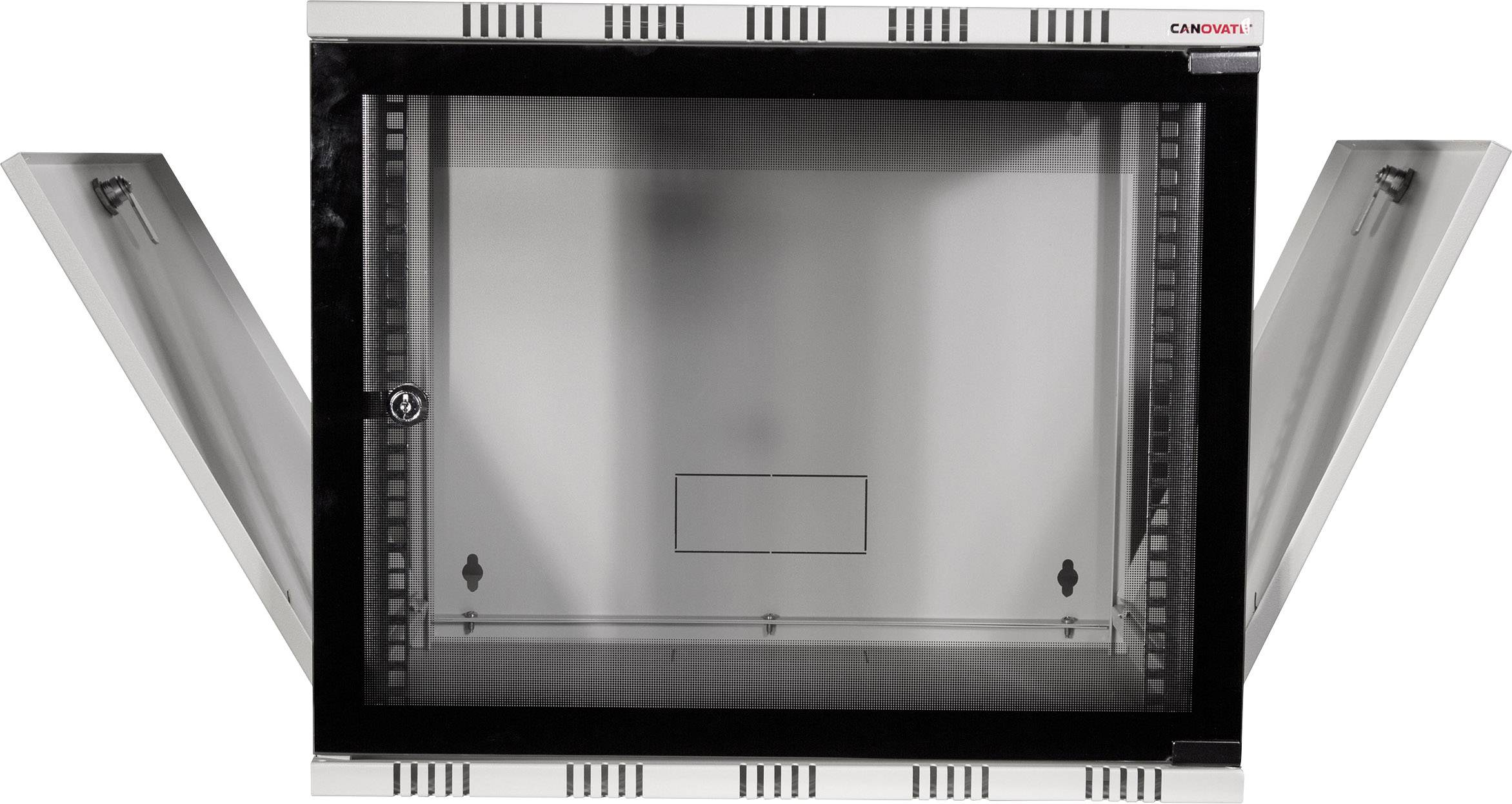

An empty, open server cabinet with a glass door and metal frame, suitable for storing IT equipment, in an office space.

1/4

Unavailable

Sales and shipping:

Conrad ElectronicTerms & Conditions

Report legal concerns

Highlights & Details

LogiLink 19" SOHO wall cabinet 12 HE (400 mm depth), Flat-Pack (unassembled)

Robust steel housing, load capacity up to 50 kg
Door stop can be changed
Removable side panels for easy access
Lockable safety glass door opening angle 180°
Depth-adjustable 483 mm (19") profile rails
Cable inputs in rear wall, roof and ground

Technical specifications

Product type: 19" wall cabinet

Rack unit: 12 U

Width: 540 mm

Height: 589 mm

Depth: 400 mm

Material: Steel

Dim: (W x H x D) 540 x 589 x 400 mm

Weight: 17 kg

Factory colour: Grey-white (RAL 7035)

Rack size: 483 mm (19")

UKCA: not relevant

Documents & Downloads

User & Safety Instructions

User & Safety Instructions 1651136 LogiLink 19" WALLMOUNT SOHO BOX 12U 540*400, GREY, FLATPACK 19" wall cabinet (W x H x D) 540 x 589 x 400 mm 12 U Grey-wh

Description

The elegant wall housing of cano vate is for a demanding data management. It is suitable for SoHo wiring or even for small data centers. This 19" (483 mm) housing has removable side panels for easy access to devices and the wiring. The installation is very easy and quickly. The delivery through the so-called flat-pack (unassembled) saves a lot of transport costs and storage space. Available with various height units, deep and colors.

This text is machine translated.
