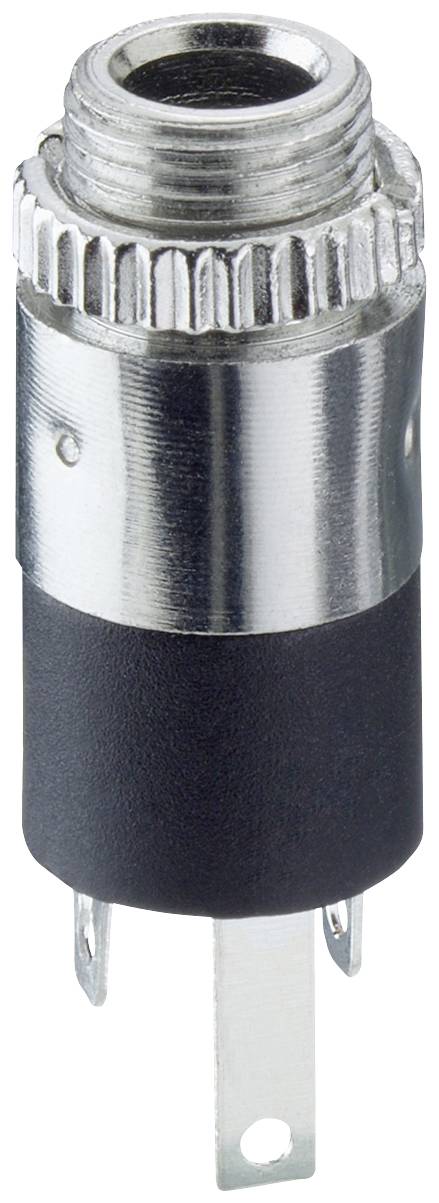

Lumberg 1502 08 Jack socket
EAN:
Part number:
Item no:
Datasheet (PDF)
Quantity (Piece(s))
Savings
Package size (plus VAT.)
1
-
€ 1.92
5
5% = € 0.10
€ 1.82
10
7% = € 0.14
€ 1.78
Volume discounts vary depending on the seller
You save € 0.00
Number
Total (€ 1.92 / piece)
€ 1.92
plus VAT.
14-day return policy included
Technical specifications
- Pins: 3
- Temperature range --20°C/+70°C
- Contact carrier PBT, V-0 acc. To UL94
- Mating cycles 5000
- Insertion force 3–30 N
- Pulling force 3–30 N
- Constant resistance 30 mΩ
- Rated current 1 A
- Rated voltage: 34 V
- Rated surge voltage 500 V/60 s.
- Contact: CuSn/CuZn, silver plated/tin plated
- Housing: CuZn, nickel-plated
- Product type
Jack socket
- Number of pins
3
- Content
1 pc(s)
- Connection
Solder pad
- Nominal current
1 A
- Nominal voltage
34 V
- Contact material
CuSn/CuZn, Ag-/tin-plated
- Case material
CuZn, Ni-plated
- Max. temperature
+70 °C
- Min. temperature
-20 °C
Documents & Downloads
Datasheet
Datasheet 3208108 Lumberg 1502 08 Jack socket
User & Safety Instructions
User & Safety Instructions 3208108 Lumberg 1502 08 Jack socket
Description
Jack panel coupler in accordance with JIS C 6560 JC35J3A, 3.5 mm, 3-pin/stereo, with solder eyes, for PCBs, for mounting on the rear side
