Lupus 12V Unterputz Netzteil 10810 PSU
Datasheet (PDF)
EAN:
Part number:
Item no:
Highlights & Details
12V flush-mounted power supply
- Flush-mounted power supply 12 V DC 1000 mA
- Ideal for installation in protective housing and mounting boxes
- Operating temperature: - 30 to 45 degrees Celsius
- Waterproof according to IP67 standard
- End device plug DC 5.5 x 2.1 mm
Technical specifications
- Product type
PSU
- Weight
350 g
- Width
50 mm
- Height
48 mm
- Length
25 mm
Documents & Downloads
Datasheet
Datasheet 2339831 Lupus 12V Unterputz Netzteil 10810 PSU
User & Safety Instructions
User & Safety Instructions 2339831 Lupus 12V Unterputz Netzteil 10810 PSU
Description

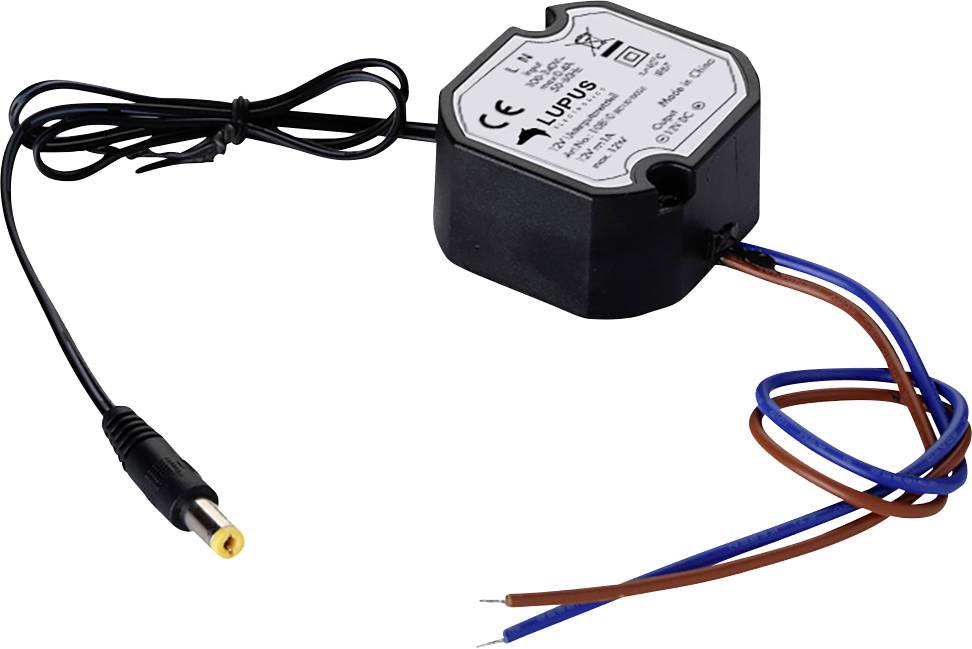

This small and powerful built-in power supply is perfectly suitable for all areas, where for reasons of space or due to the choice of location conventional power supplies have to be dispensed with.
With its small dimensions, it is ideal for flush-mounting installation or use in protective housings or THE lupus mounting boxes. 230V is connected to the upper side and a DC plug for e.g. a 12V camera is located on the lower side.
This text is machine translated.
With its small dimensions, it is ideal for flush-mounting installation or use in protective housings or THE lupus mounting boxes. 230V is connected to the upper side and a DC plug for e.g. a 12V camera is located on the lower side.
This text is machine translated.
Scope of delivery
- lupus 12 V flush-mounted power supply
- User manual.
