Lupus LE 149 HD-1080p Full HDTV 13111 IP-CCTV camera 1920 x 1080 p
Datasheet (PDF)
EAN:
Part number:
Item no:
Highlights & Details

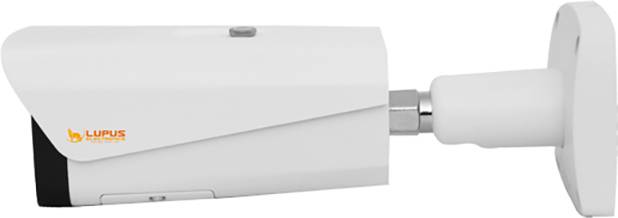

IP-Compact camera 1920 x 1080 p Lupus LE 149 HD-1080p Full HDTV 13111, Outdoors, Indoors
- Night vision range: Maximum 100 meters with smart IR
- 0.005 Lux minimum light conditions
- Remotely controllable motor zoom
- Weatherproof (IP67)
- Cabling via coaxial cable (RG59) up to max. 300 m.
- Recording to the HD digital recorder is time-controlled or when motion is detected
- Plug and Play - HD via the existing CCTV cabling
Technical specifications
- Product type
CCTV camera
- Camera type
Compact camera
- Resolution (max.)
1920 x 1080 p
- Sensor type
CMOS
- Viewing angle
95°
- Signal standard
IP
- Outputs
BNC
- Power supply
PSU
- IR range (max.)
100 m
- Used at
Outdoors
Indoors
IP67
- Dim
(W x H x D) 95 x 273.2 x 95 mm
- Width
95 mm
- Height
273.2 mm
- Depth
95 mm
- Weight
1160 g
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 2339826 Lupus LE 149 HD-1080p Full HDTV 13111 IP-CCTV camera 1920 x 1080 p
User & Safety Instructions
User & Safety Instructions 2339826 Lupus LE 149 HD-1080p Full HDTV 13111 IP-CCTV camera 1920 x 1080 p
Description
The LUPUSNIGHT - LE 149HD enables top picture quality in FullHD (1920x1080 pixels) without compression losses and remote controllable zoom through the new HD video technology. In addition, cable lengths of up to 300 meters (RG59) can be laid in contrast to the conventional HD-SDI Techik.
We have placed special emphasis on the external suitability of this small all-rounder: The integrated IR-LEDs illuminate the environment at night up to max. 100 meters and by the IP67 degree of protection it is protected against even the most adverse environmental influences.
This text is machine translated.
We have placed special emphasis on the external suitability of this small all-rounder: The integrated IR-LEDs illuminate the environment at night up to max. 100 meters and by the IP67 degree of protection it is protected against even the most adverse environmental influences.
This text is machine translated.
Scope of delivery
- LE 149 HD-1080p Full HDTV
- 12 V power supply
- Screws with dowels
- Drill template
- User manual.
