Lupus LE 224 PoE 10224 IP-CCTV camera 3840 x 2160 p
Datasheet (PDF)
EAN:
Part number:
Item no:
Highlights & Details

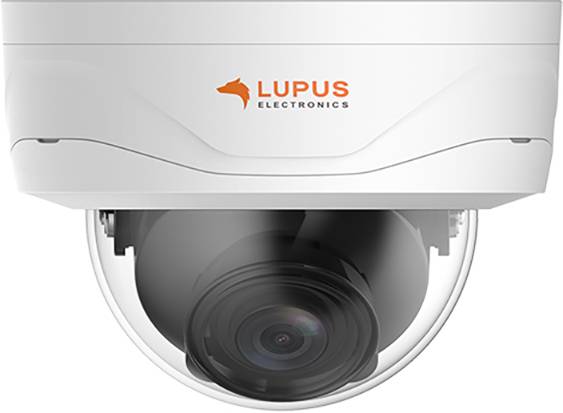

IP-Compact camera 3840 x 2160 p Lupus LE 224 PoE 10224, Outdoors, Indoors
- Outdoor camera with 8 megapixels, max. 3840x2160 pixels with H. 265+ compression
- IR night vision up to 30 meters
- 3.7~11 mm motorized lens (controllable via app and software)
- WDR (120dB), IR cut filter, 3DNR, AWB, AGC and BLC image improvements
- Waterproof according to IP67 standard
- IK10 and PoE-enabled, thus no power connection is necessary
- Memory can be extended up to 128 GB via SD card
Technical specifications
- Product type
CCTV camera
- Camera type
Compact camera
- Resolution (max.)
3840 x 2160 p
- Sensor type
CMOS
- CCTV features
Motorized lens
- Viewing angle
112°
- Vertical viewing angle
60°
- Signal standard
IP
- Outputs
RJ45
- Power supply
PSU
- IR range (max.)
60 m
- Used at
Outdoors
Indoors
IP67
- Dim
(Ø x H) 122 mm x 88.9 mm
- Height
88.9 mm
- (Ø)
122 mm
- Weight
460 g
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 2339842 Lupus LE 224 PoE 10224 IP-CCTV camera 3840 x 2160 p
User & Safety Instructions
User & Safety Instructions 2339842 Lupus LE 224 PoE 10224 IP-CCTV camera 3840 x 2160 p
Description
The lupus LE224 is your unbeatable ally for any project thanks to its robust IK10 certified housing and 8 megapixel resolution (3840x2160Pixel), combined with low installation costs.
With a maximum night vision range of 30 meters, a zoom lens that can be controlled from a distance and the excellent technical equipment such as SD slot, 128dB WDR, H.265 etc., THE LUPUS-LE22X series is a practical solution for every conceivable requirement profile. Together with the highly competitive pricing of all new LUPUS models, IP camera projects can be made more cost-effective than ever before.
This text is machine translated.
With a maximum night vision range of 30 meters, a zoom lens that can be controlled from a distance and the excellent technical equipment such as SD slot, 128dB WDR, H.265 etc., THE LUPUS-LE22X series is a practical solution for every conceivable requirement profile. Together with the highly competitive pricing of all new LUPUS models, IP camera projects can be made more cost-effective than ever before.
This text is machine translated.
Scope of delivery
- LE 224 PoE
- Power supply (12 V, 1A)
- SmartVision software
- User manual.
Accessories
(*All information is plus legal VAT)The necessary accessories are required to use the article as described.
