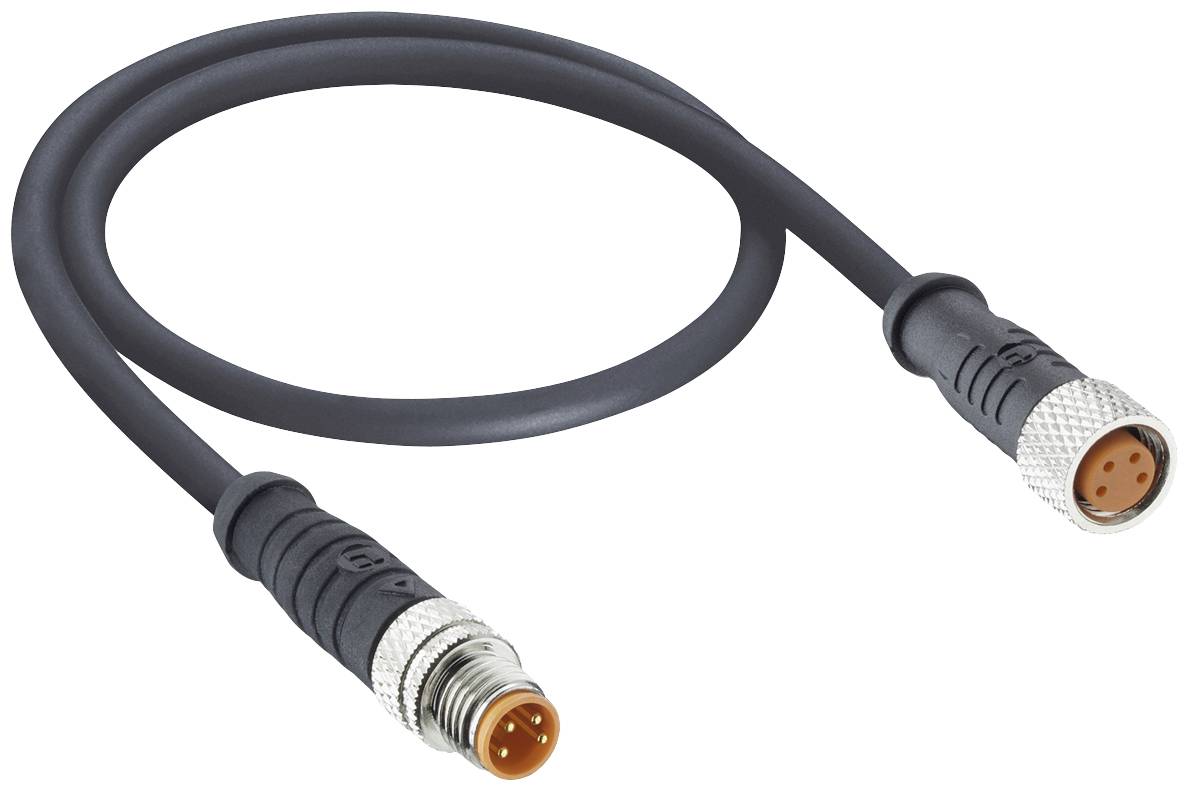

Image similar
Lutronic 0810 0800 03 001 2m Sensor/actuator cable M8 Plug, straight, Socket, straight 2 m No. of pins (RJ): 3 1 pc(s)
Product type
Sensor/actuator cable
Connector type
Plug, straight
Socket, straight
Connector standard
Sensor connector
Connection side A
M8 plug, straight
Connection side B
M8 socket, straight
Datasheet (PDF)
EAN:
Part number:
Item no:
Highlights & Details
Actuator-/sensor cable 0810 0800 03 001 2m
- Actuator/sensor cable with molded plug connectors
- Cable end 1:
- M8-Plug
- straight
- A-coded
- IP67
- Cable end 2:
- M8-Coupling
- straight
- A-coded
- IP67
- Cable:
- PVC
- Black
- This text is machine translated.
Technical specifications
- Plug-in force: ≤ 23 N *1
- Pulling force: ≤ 23 N *2
- Continuous resistance ≤ 10 mΩ
- Dimensioning surge voltage: 1.5 kV
- Material contact carrier: TPU GF, HB according to UL94
- Mating cycles ≥ 100
- Type
0810 0800 ... 0...
- Product type
Sensor/actuator cable
- Connector type
Plug, straight
Socket, straight
- Connector standard
Sensor connector
- Connection side A
M8 plug, straight
- Connection side B
M8 socket, straight
- No. of pins
3
- Cable length
2 m
- Jacket material
PVC
- Nominal voltage
50 V AC
60 V DC
- Nominal current
4 A
- Nominal current - rounded value
4 A
- Thread type connection side
M8
- Coding
A
- Contact material
CuZn
- Contact surface
Gold plated
IP67
- Min. temperature
-25 °C
- Max. temperature
+80 °C
- Manufacturer part #
0810 0800 03 001 2m
- Content
1 pc(s)
- RoHS-compliant
Yes
