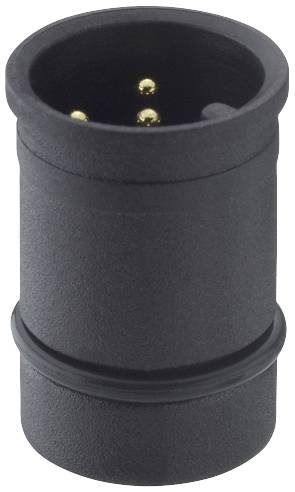

Image similar
Lutronic 1239 04 T0CB Sensor/actuator built-in connector M12 Plug, mount No. of pins (RJ): 4 1 pc(s)
Product type
Sensor/actuator built-in connector
Connector type
Plug, mount
Connector standard
Sensor connector
No. of pins
4
Nominal voltage
250 V DC/AC
Datasheet (PDF)
EAN:
Part number:
Item no:
Highlights & Details
Built-in Connectors 1239 04 TCB
- M12 plug insert
- A-coded
- IP67
- With solder tags
- This text is machine translated.
Our service for you
Technical specifications
- Plug-in force: ≤ 10 N *1
- Pulling force: ≤ 15 N *2
- Continuous resistance ≤ 5 mΩ
- Dimensioning surge voltage: 2000 V
- Material contact carrier: PA
- Mating cycles ≥ 100
- Type
1239 ... T0CB
- Product type
Sensor/actuator built-in connector
- Connector type
Plug, mount
- Connector standard
Sensor connector
- No. of pins
4
- Nominal voltage
250 V DC/AC
- Nominal current
4 A
- Nominal current - rounded value
4 A
- Connection
Solder bucket
- Thread type connection side
M12
- Thread type (wiring and installation)
M12
- Coding
A
- Contact material
CuZn
- Contact surface
Gold plated
IP67
- Features
A-coded
- Min. temperature
-25 °C
- Max. temperature
+80 °C
- Manufacturer part #
1239 04 T0CB
- Content
1 pc(s)
- RoHS-compliant
Yes
