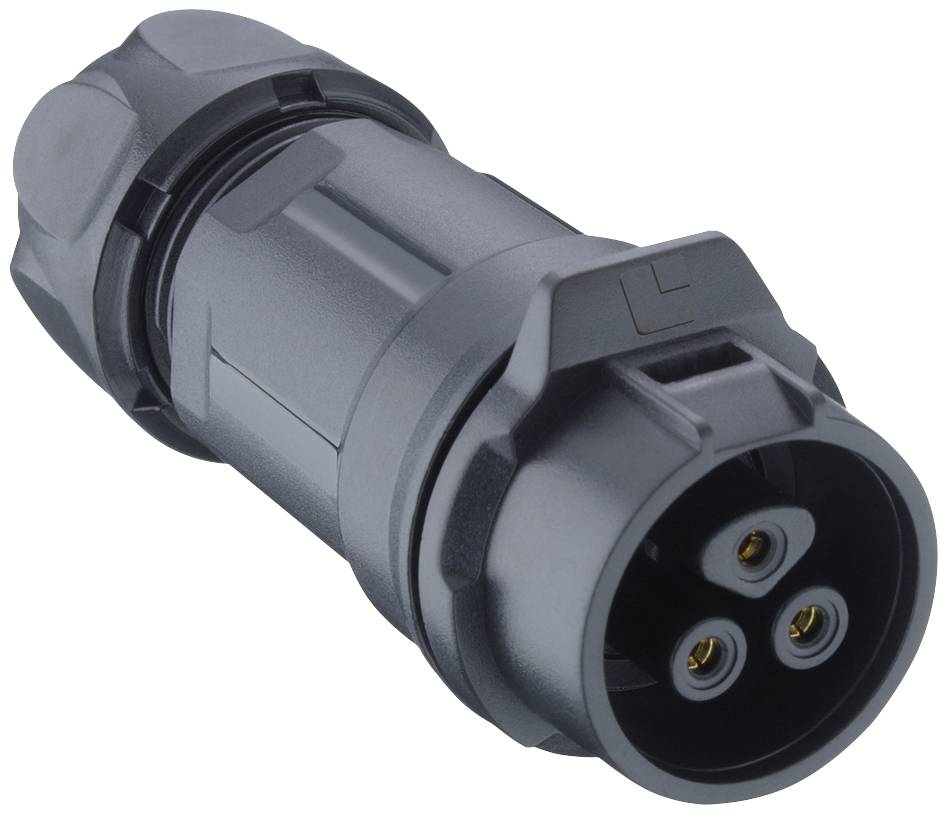

Image similar
Lutronic 2440 07 T09CB A DIN connector Socket, straight 1 pc(s)
Product type
DIN connector
Connector type
Socket, straight
Connection
Soldering
Content
1 pc(s)
Nominal current - rounded value
5 A
Datasheet (PDF)
EAN:
Part number:
Item no:
Highlights & Details
Plug connector 2440 07 T09CB A
- Quick lock coupling
- IP67
- Size 16
- Straight type
- With plastic housing and solder connections
- This text is machine translated.
Our service for you
Technical specifications
- Plug-in force ≤ 90 N
- Pull force ≤ 40 N
- Cross-section AWG 22-20
- Continuous resistance ≤ 5.0 mΩ
- Rated surge voltage 1500 V AC
- Material contact carrier: PBT, V-0 according to UL94
- Material housing PBT, V-0 according to UL94
- Mating cycles 1700
- Type
2440 ... T09CB A
- Product type
DIN connector
- Connector type
Socket, straight
- Connection
Soldering
- Content
1 pc(s)
- Max. temperature
+80 °C
- Nominal current
5 A
- Min. temperature
-40 °C
- Nominal current - rounded value
5 A
- Nominal voltage
250 V
- Contact material
CuSn
- Cable Ø (max.)
9 mm
- Cable Ø up to
3 mm
- Manufacturer part #
2440 07 T09CB A
- Cable Ø range
3 - 9 mm
- max. cross section
0.75 mm²
- Min. cross section
0.34 mm²
- Cross-section range
0.34 - 0.75 mm²
- RoHS-compliant
Yes
IP67
