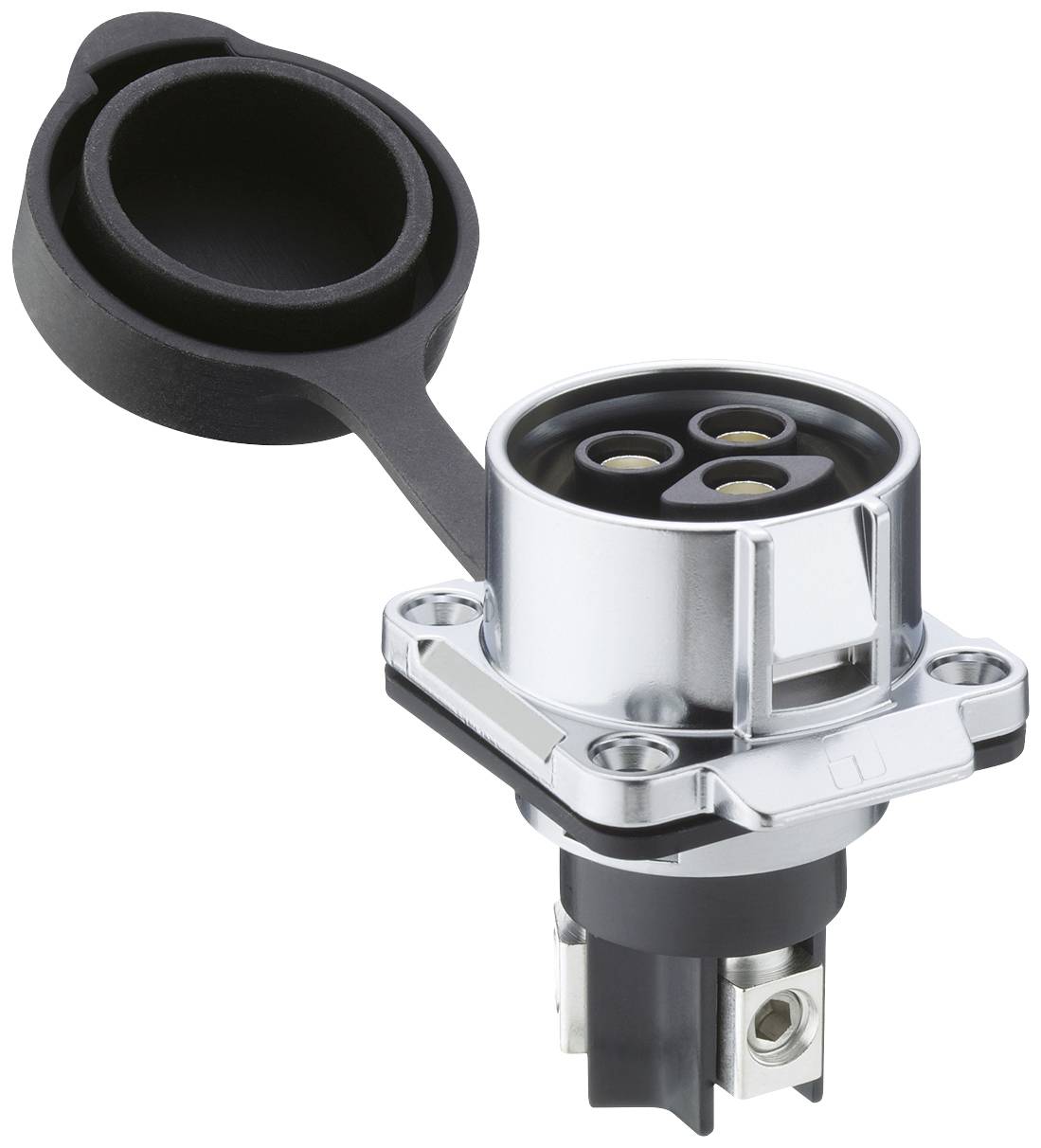

Lutronic 2820 03 TF1CR DIN connector Socket, straight 1 pc(s)
Product type
DIN connector
Connector type
Socket, straight
Connection
Soldering
Content
1 pc(s)
Nominal current - rounded value
50 A
Datasheet (PDF)
EAN:
Part number:
Item no:
Highlights & Details
Built-in plug connector 2820 03 TF1CR
- Quicklock flange mounting coupling
- IP67
- Size 28
- Straight type
- With metal housing
- Screw terminal connections (8-pin with solder connections) and protective cap (IP65)
- This text is machine translated.
Our service for you
Technical specifications
- Plug-in force ≤ 130 N
- Pull force ≤ 120 N
- Cross-section AWG 14-6
- Continuous resistance ≤ 5 mΩ
- Rated surge voltage ≤ 2500 V
- Material contact carrier: PBT, V-0 according to UL94
- Material housing: Zn alloy, chrome plated
- Mating cycles 1700
- Type
2820 ... TF1C...
- Product type
DIN connector
- Connector type
Socket, straight
- Connection
Soldering
- Content
1 pc(s)
- Max. temperature
+80 °C
- Nominal current
50 A
- Min. temperature
-40 °C
- Nominal current - rounded value
50 A
- Nominal voltage
500 V AC
- Contact material
CuZn
- Manufacturer part #
2820 03 TF1CR
- max. cross section
16.0 mm²
- Min. cross section
2.5 mm²
- Cross-section range
2.5 - 16.0 mm²
- RoHS-compliant
Yes
IP67
IP65
Documents & Downloads
Datasheet
Datasheet 3210345 Lutronic 2820 03 TF1CR DIN connector Socket, straight 1 pc(s)
