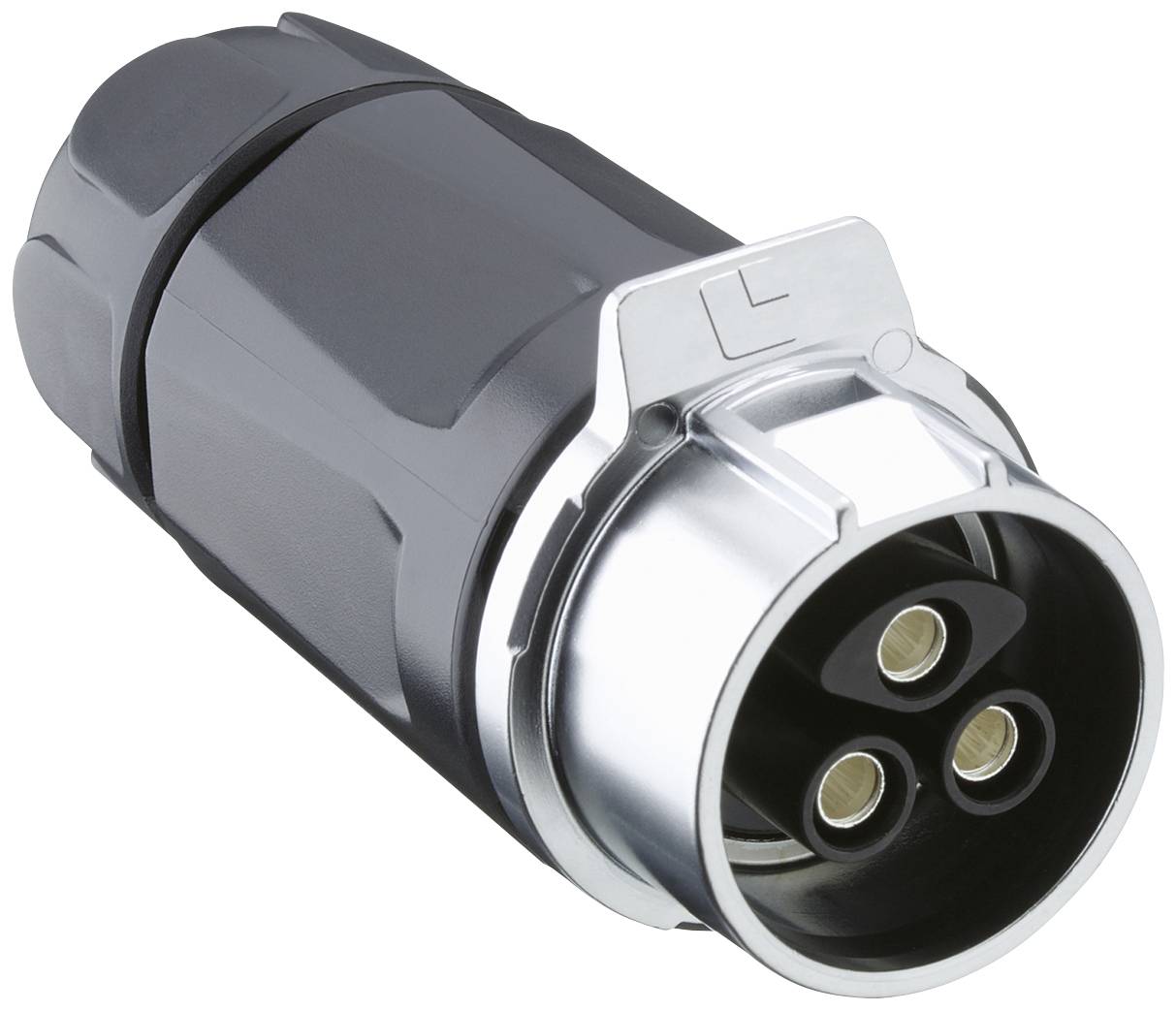

Image similar
Lutronic 2840 03 T20CR A DIN connector Socket, straight 1 pc(s)
Product type
DIN connector
Connector type
Socket, straight
Connection
Screw terminal
Content
1 pc(s)
Nominal current - rounded value
50 A
Datasheet (PDF)
EAN:
Part number:
Item no:
Highlights & Details
Connector 2840 03 T20CR A
- Quick lock coupling
- IP67
- Size 28
- Straight type
- With plastic housing and screw terminal connections
- This text is machine translated.
Our service for you
Technical specifications
- Plug-in force ≤ 90 N
- Pull force ≤ 40 N
- Cross-section AWG 14-6
- Continuous resistance ≤ 5 mΩ
- Rated surge voltage ≤ 2500 V
- Material contact carrier: PBT, V-0 according to UL94
- Material housing PBT, V-0 according to UL94
- Mating cycles 1700
- Type
2840 ... T20C... A
- Product type
DIN connector
- Connector type
Socket, straight
- Connection
Screw terminal
- Content
1 pc(s)
- Max. temperature
+80 °C
- Nominal current
50 A
- Min. temperature
-40 °C
- Nominal current - rounded value
50 A
- Nominal voltage
500 V AC
- Contact material
CuZn
- Cable Ø (max.)
20.5 mm
- Cable Ø up to
17 mm
- Manufacturer part #
2840 03 T20CR A
- Cable Ø range
17 - 20.5 mm
- max. cross section
16.0 mm²
- Min. cross section
2.5 mm²
- Cross-section range
2.5 - 16.0 mm²
- RoHS-compliant
Yes
IP67
