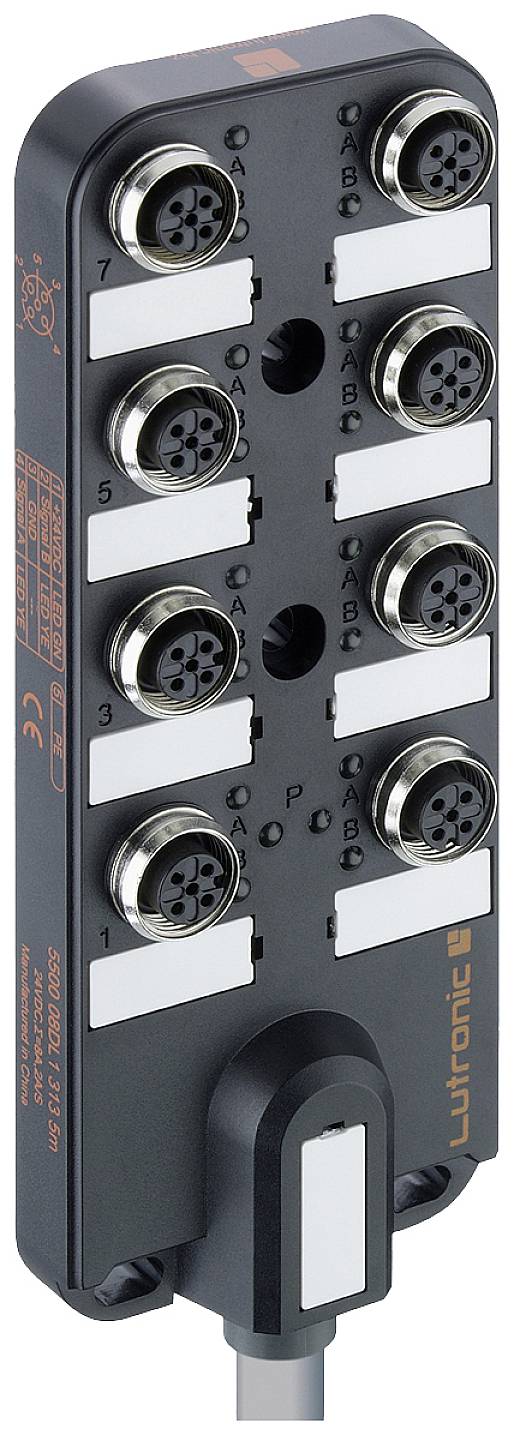

Image similar
Lutronic 5500 08DL1 3... 5500 08DL1 313 10m Sensor & actuator box (passive) M12 splitter + steel thread 1 pc(s) Piece
Packaging type
Piece
Product type
Sensor & actuator box (passive)
No. of signal spaces
5
No. of splitters
8-way
Configuration
Double
Datasheet (PDF)
EAN:
Part number:
Item no:
Highlights & Details
Passive actuator/sensor distributor M12
- Passive M12 distributor8-wayDouble signalWith LEDsIP67Central connection:CablePURGrey
- This text is machine translated.
Technical specifications
- No. of pins 8 x 5Resistance: ≤ 5 mΩMaterial contact carrier: PA, V-2 according to UL94Material contact: CuZn, nickel plated and gold platedResistance: Good resistance to chemicals and oils. Resistance to aggressive media must be checked in individual cases.NOMINAL VOLTAGE 10-30 V DC (24 V DC)
- Packaging type
Piece
- Product type
Sensor & actuator box (passive)
- No. of signal spaces
5
- Configuration
Double
- Type
5500 08DL1 3...
- No. of splitters
8-way
- Status indicator
LED
- Connection
M12 socket
IP67
- Max. power rating per slot
2 A
- Max. temperature
+80 °C
- Min. temperature
-40 °C
- Connector type (distribution boxes)
M12 socket
- Case material
ABS
- Total no. of pins
40
- Manufacturer part #
5500 08DL1 313 10m
- Content
1 pc(s)
- Number of pins
40
- RoHS-compliant
Yes
- Power rating (total)
8 A
