Luxonis Development board MBS-ENTB-81
EAN:
Part number:
Item no:
Sales and shipping:
Conrad ElectronicTerms & Conditions
Total (€ 635.00 / piece)
€ 635.00
incl. VAT
Only available for business customers
14-day return policy includedHighlights & Details

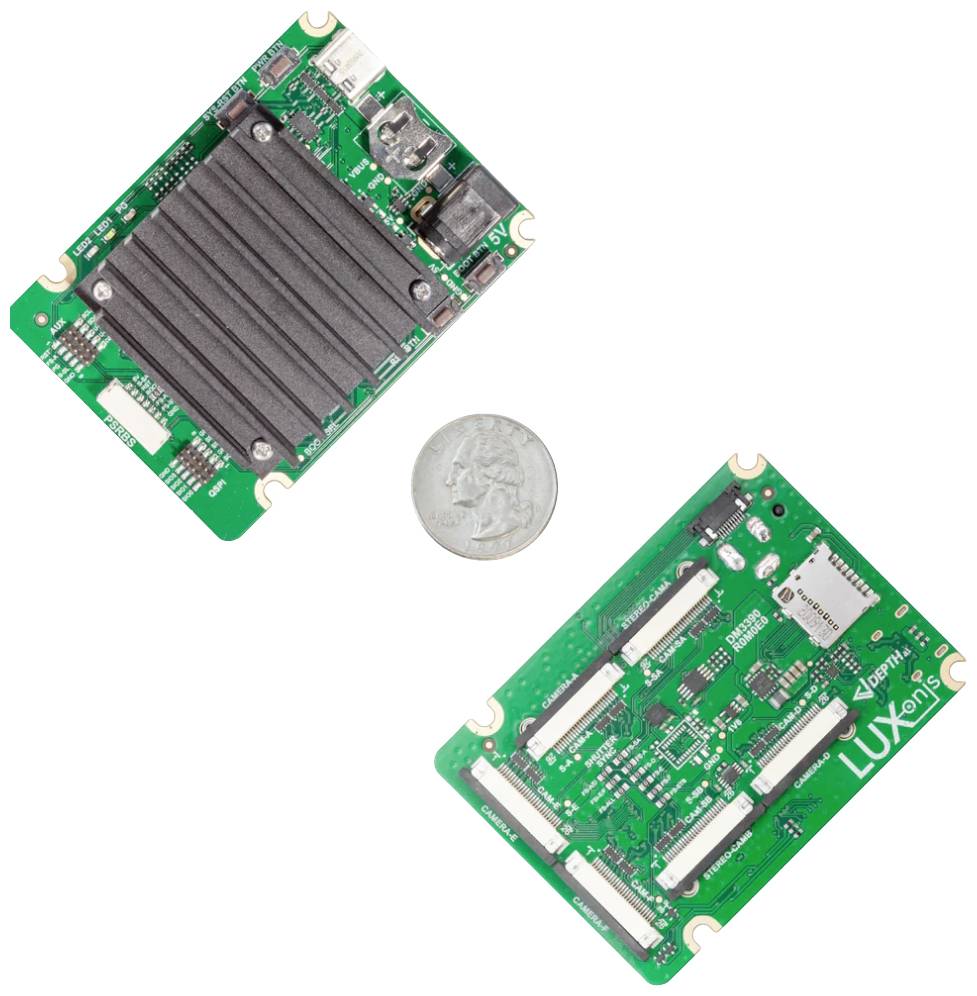

LUXONIS OAK-FFC-6P
- LUXONIS OAK-FFC-6P

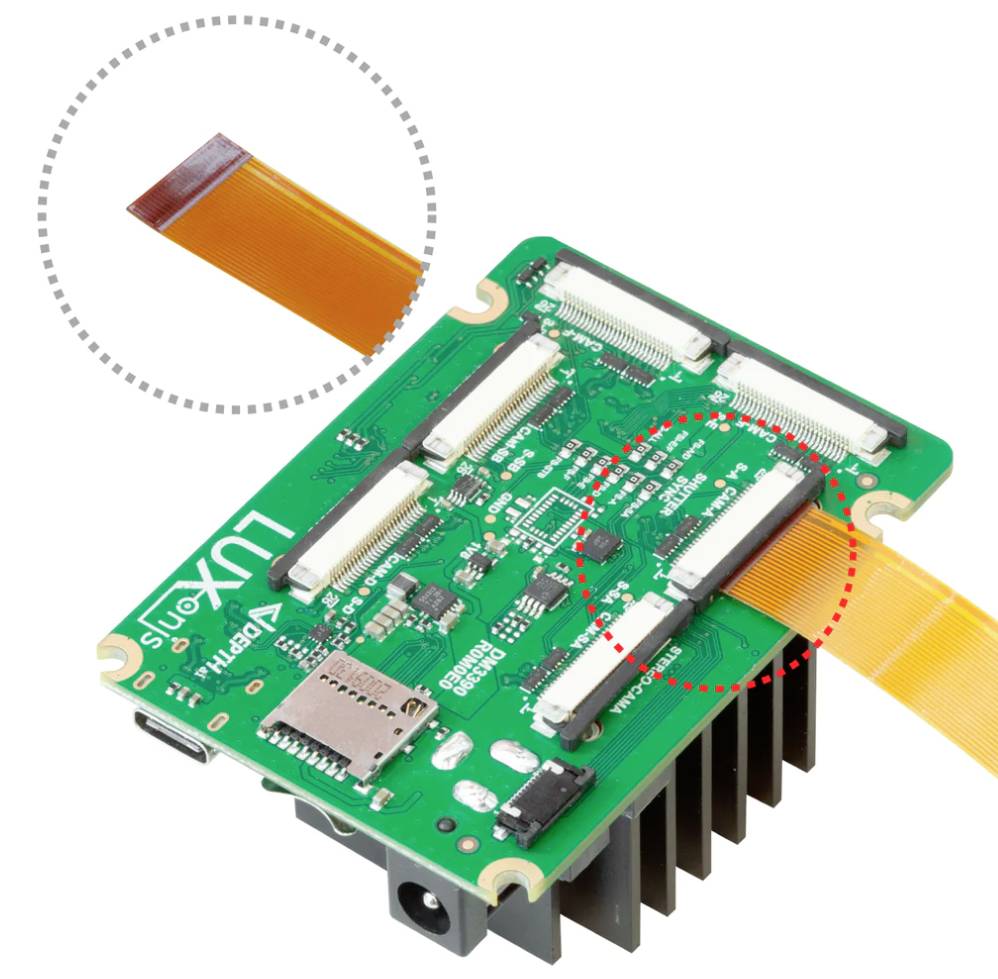

- Connection option for up to 6 x FFC cameras
- Improved ruggedness of the FFC connectors
- ESD resistant
- Ability to work with ArduCam cameras only with one adapter cable
- Standardized pin assignment
Technical specifications
- Product type
Development board
- Manufacturer part #
MBS-ENTB-81
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 3204933 Luxonis Development board MBS-ENTB-81
Description

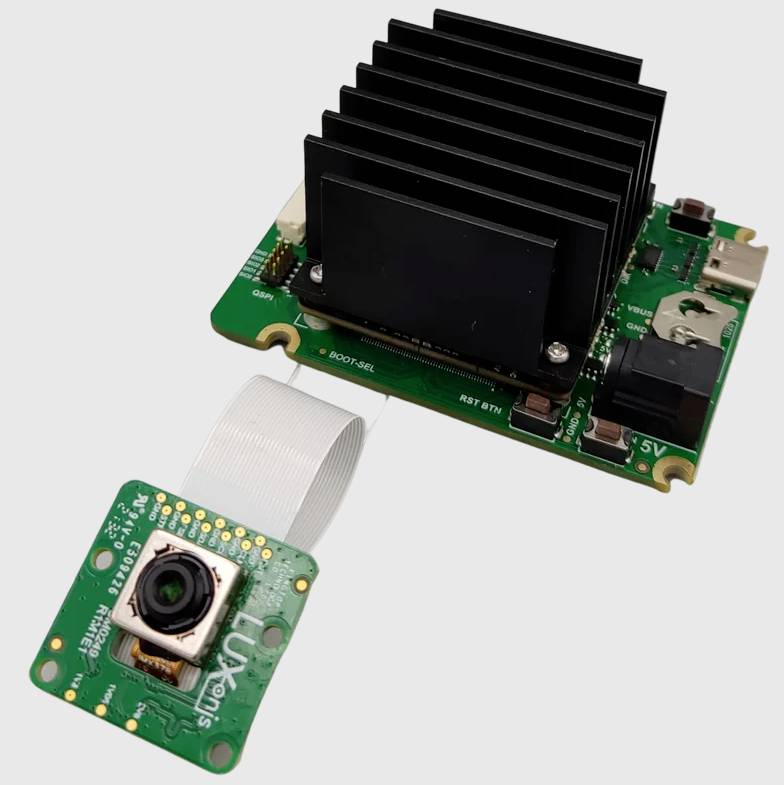

The OAK-FFC-6P uses the OAK-SOM MAX. This includes the new Robotics Vision 3 with a Quad-Core ARM CPU. Up to six 2-lane MIPI camera modules can be connected. It is therefore perfect for a quick prototyping with different stereo baslines, field of view and image sensor permutations.
This text is machine translated.
This text is machine translated.
Features
- USB-C port: Supports USB2 and USB3 protocols (5Gbps/10Gbps)
- 5V-current input via barrel jack
- BNO086 IMU single-chip sensor: 9 axes and integrated sensor fusion
- 3.0 TOPS for AI
- CODING: H.264, H.265, MJPEG - 4K/75FPS, 4K/60FP
- Imaging: ISP, max. 6 cameras, 500MP/s HDR, 3A
- Computer Vision: Warp/Dewarp, resize, cropping via ImageManip nodes, edge detection, feature tracking
- Stereo depth perception with filtering, post-processing, RGB depth matching and high configurability
- Object tracking: 2D and 3D tracking
Scope of delivery
- OAK-FFC 6P ASSEMBLY
- Flexible flat cable, 15 cm (6pc)
- Power-supply mit international adapters
- Cable USB-CA-1m
