Luxonis FFC interface MBS-SES-266
EAN:
Part number:
Item no:
Sales and shipping:
Conrad ElectronicTerms & Conditions
Total (€ 349.00 / piece)
€ 349.00
incl. VAT
Only available for business customers
14-day return policy includedTechnical specifications
- 2x 2-lane MIPI channels
- 1x 4-lane MIPI channels
- Pass-through for standard RPi Model B GPIO header
- Level shifter reset (BCM GPIO26)
- 5 V Power input via barrel jack or GPIO header
- USB 3.1 1st Gen 1 type C
- 5 V fan/aux header
- Signed files produced with Altium designer 20
- Product type
FFC interface
- Manufacturer part #
MBS-SES-266
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 3089860 Luxonis FFC interface MBS-SES-266
Description

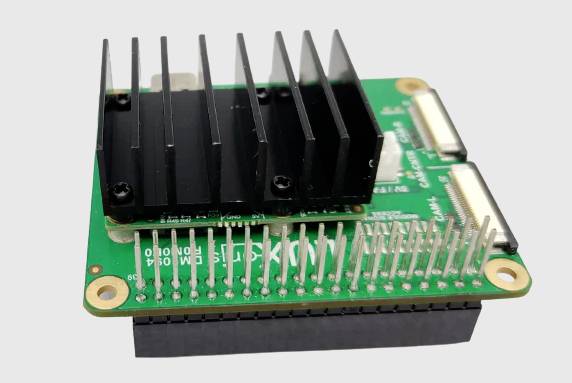

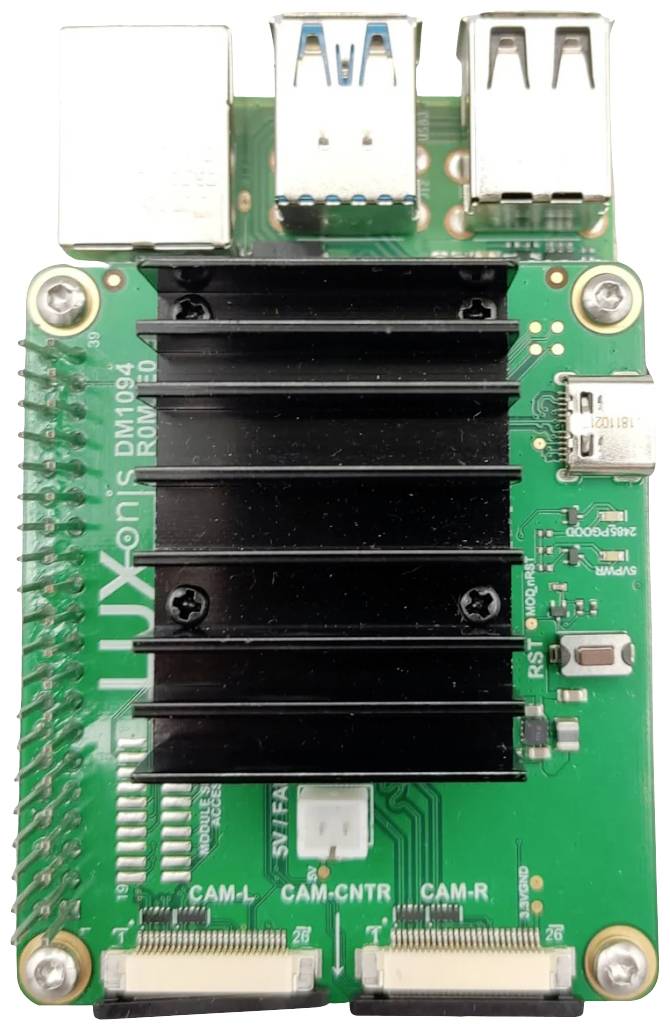

The OAK-FFC RPi Hat has three FFC interfaces that allow the connection of two mono cameras and one RGB camera.
Features
4 TOPS computing power (1.4 TOPS for AI)
Runs every AI model
CODING: H.264, H.265, MJPEG - 4K/30FPS, 1080/60FPS
Computer Vision: Warp/Dewarp, resize, cropping via ImageManip nodes, edge detection, feature tracking. You can also perform custom CV functions
Stereo depth perception with filtering, post-processing, RGB depth matching and high configurability
Object tracking: 2D and 3D tracking with the ObjectTracker node
This text is machine translated.
Features
4 TOPS computing power (1.4 TOPS for AI)
Runs every AI model
CODING: H.264, H.265, MJPEG - 4K/30FPS, 1080/60FPS
Computer Vision: Warp/Dewarp, resize, cropping via ImageManip nodes, edge detection, feature tracking. You can also perform custom CV functions
Stereo depth perception with filtering, post-processing, RGB depth matching and high configurability
Object tracking: 2D and 3D tracking with the ObjectTracker node
This text is machine translated.
Features

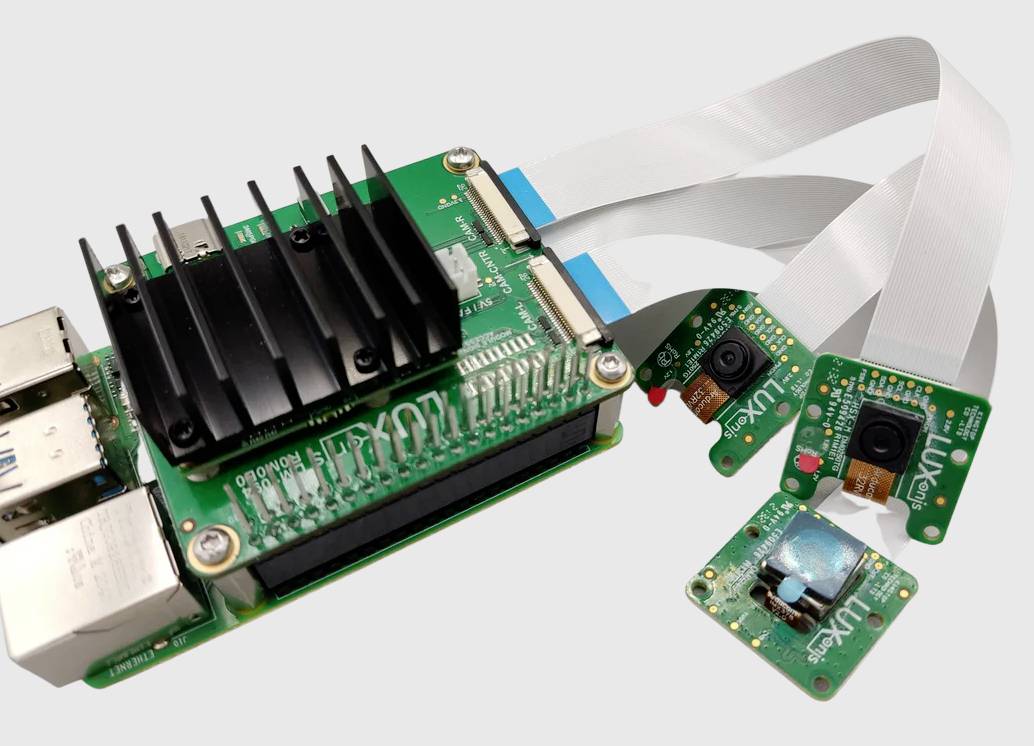

- 3x FFC interface (allows you to connect 2x mono cameras and 1x RGB camera)
- 2x 2-lane and 1x 4-lane MIPI channels
- 5V Fan/Aux header
- 5V Power input
Scope of delivery
- OAK-1 Lite camera
- Cleaning cloth
