MAAS Elektronik 3298 CRT MICRON CB radio
EAN:
Part number:
Item no:
Number
Total (€ 113.44 / piece)
€
Only 10 Piece(s) available
Highlights & Details
CRT Micron Amateur mobile radio Duoband VHF/UHF
- Compact amateur Duoband mobile phone device
- Colored TFT display
- Output power 5/15 and 25 Watt switchable
Technical specifications
- Features
12 V
Microphone jack
Scan mode
2-channel monitoring
- Transfer type
Radio
- Frequency ranges
Frequency range TX (transmitter) 144-146 / 430-440 MHz
Frequency range RX (receiver) 144-146 / 430-440 MHz
- Channels
200
- Width
122 mm
- Height
35 mm
- Depth
165 mm
- Weight
480 g
- Dim
(W x H x D) 122 x 35 x 165 mm
- Product type
CB radio
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 1848895 MAAS Elektronik 3298 CRT MICRON CB radio
Description
CRT-Micron is a very compact amateur radio with all important functions. The color TFT display and the very compact design are particularly striking. The CRT Micron U/V offers three switchable output power (5/15/25 Watt) in the VHF and UHF range. Operation is performed via the left and right function keys next to the display.
This text is machine translated.
This text is machine translated.
Features
- FM (TX/RX) MODE
- Channel grid 2.5 / 5 / 6.25 / 10 / 12.5 / 20 / 25 / 30 / 50 kHz
- Memory channels 200
- Channel spacing 12.5, 20 and 25 kHz switchable
- Illuminated buttons
- Easy to read TFT display (multi-mode) with display frequency, reception signal, output power, operating voltage, function displays and much more.
- Operating mode FM (wide and narrow switchable)
- Simultaneous operation of VHF/UHF, UHF/VHF, UHF/UHF or VHF/VHF possible
- Switchable ringtone frequencies 1000 Hz/1450 Hz/1750 Hz/2100 Hz
- Switchable relay storage +/- with selectable differential frequency
- CTCSS and DCS de- and encoder, with 52 CTCSS and 1024 DCS tones
- DTMF transmission function
- Dual-channel monitoring (dual watch)
- Transmission time limit can be set/switched off
- CTCSS and DCS search function
- Search ( Scan)
- Reverse Function
- Programmable via optional PC software/USB cable (not required)
- Western microphone connection
- Antenna connection PL-259 socket
- Power supply 13.8 V DC (max. 10 - 12 A)
Scope of delivery
- Includes DTMF hand microphone with loudspeaker, band display and programmable function keys
- Microphone holder
- DC cable
- User manual.
Hints
Before using ham radio devices you need to apply for an amateur radio licence (granted by your government).
Frequently Bought Together
(*All information is plus legal VAT) This article
MAAS Elektronik 3298 CRT MICRON CB radio
Conrad Electronic
€ 113.44*
Wittenberg Antennen Poly-103358 BNC test lead 10 m Black
Conrad Electronic
€ 14.28*
-80%
Albrecht Mounting brackets Montagebügel AE6490/91CT 75496
Conrad Electronic
€ 18.48
€ 3.77*

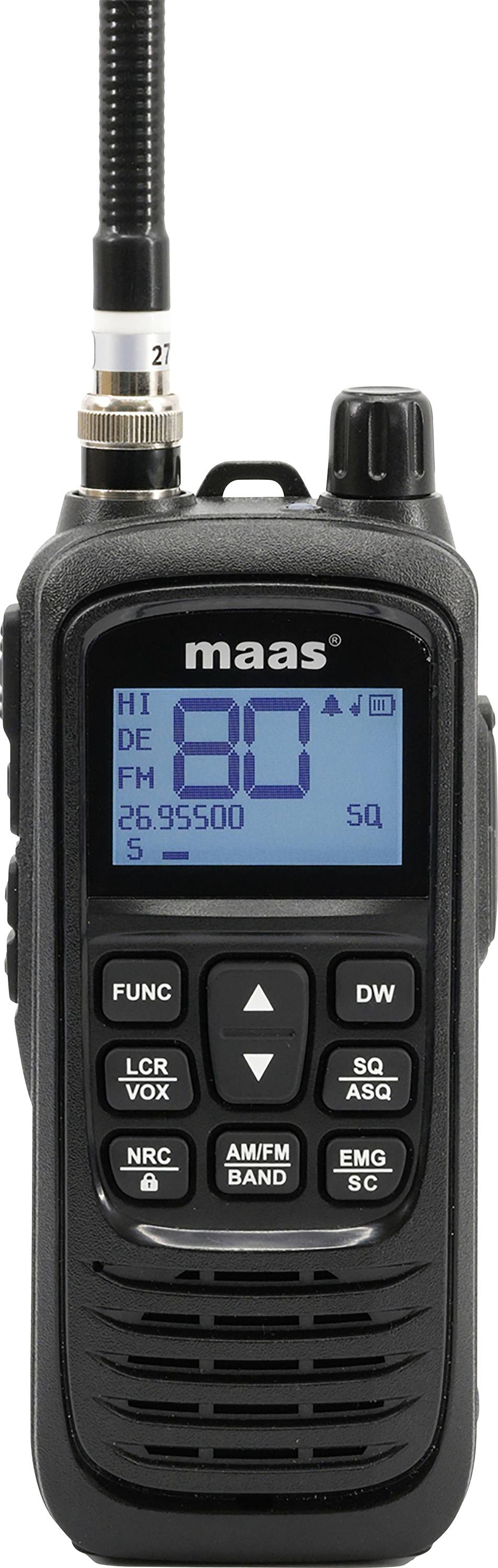

MAAS Elektronik KCB-H-1000 3081 CB handheld radio transceiver
