Name: Magswitch 8100075 MagSwitch MagWheel 600 - 8100075 #####Haltemagnet
Brand: Magswitch
SKU: 3476876

Highlights & Details

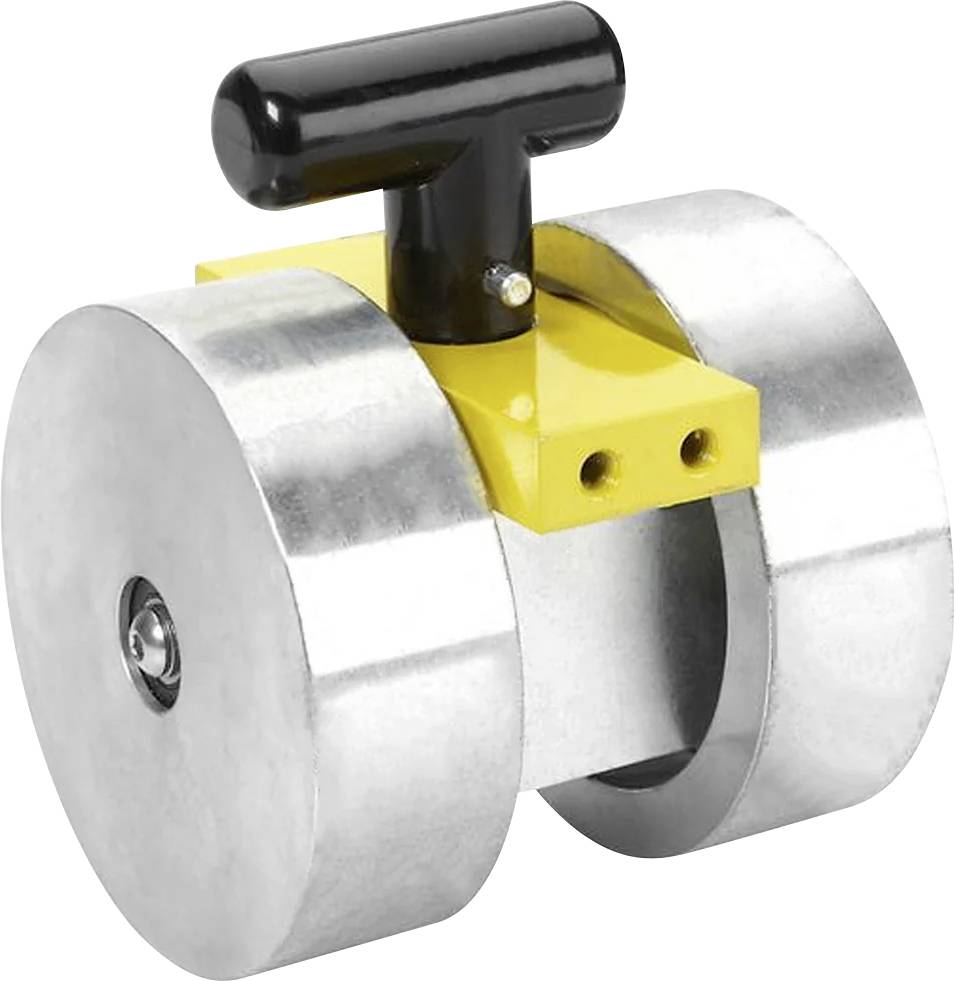

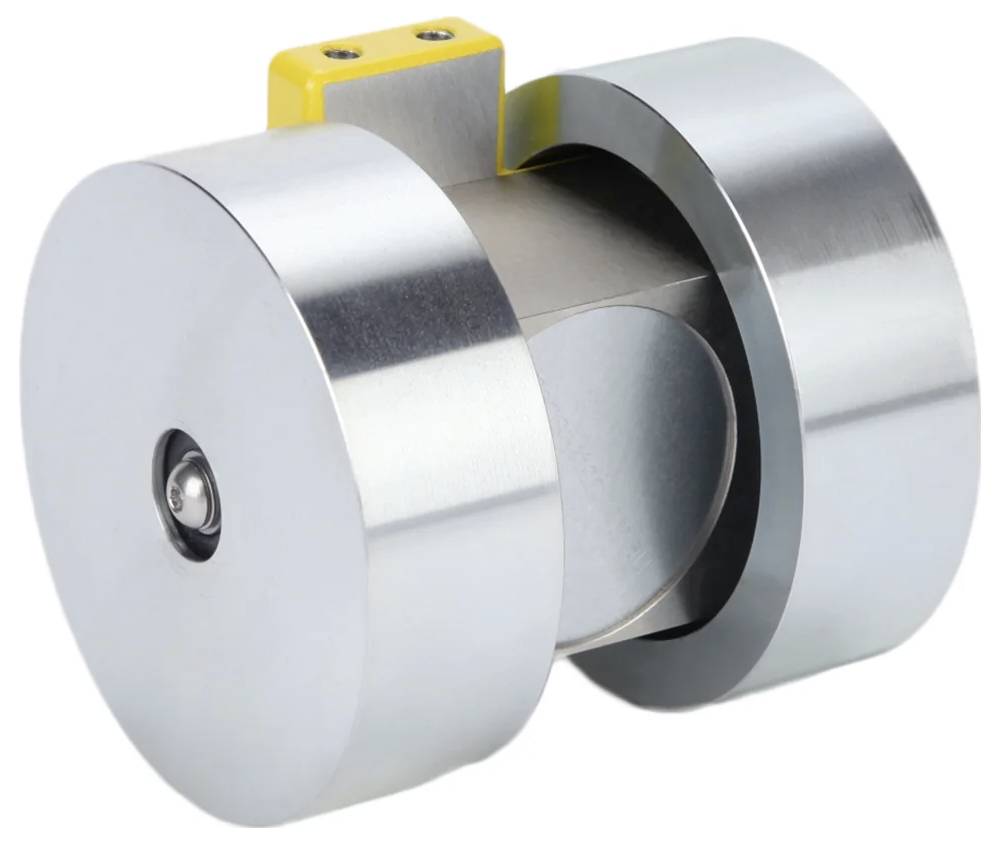

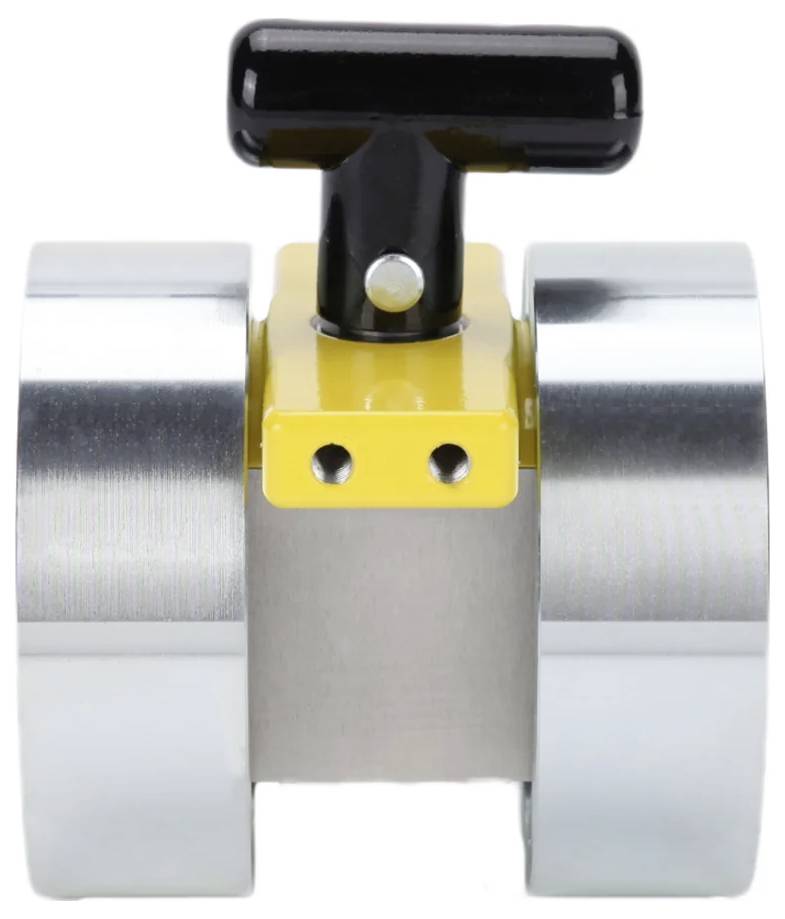

MagSwitch MagWheel 600 - 8100075

1275.3 N Holding force, on/off switch, compact, versatile

Our service for you

Technical specifications

Product weight: 6.6 lbs / 3 kg
Dimensions 4 x 3.6 x 4.8 mm (101.6 x 91.44 x 121.9 in)
Magnetic base area 101.1 x 90 mm
Max Breakaway - 292 kg

Product type: #####Haltemagnet

Content: 1 pc(s)

Documents & Downloads

User & Safety Instructions

User & Safety Instructions 3476876 Magswitch 8100075 MagSwitch MagWheel 600 - 8100075 #####Haltemagnet

Description

Powerful connection for drive units on any ferrous surface for flat, vertical or reverse movement. The 130 kg magnetic holding force can be switched on and off by turning the button. Applications include positioning and guidance, sheet metal feeding, pipe handling, assembly and manufacturing, and numerous OEM automation and device applications. FEATURES AND ADVANTAGES: The magnet can be switched on and off completely. The magnet remains clean. It does not need a power source. Fixes to flat and round steel surfaces. Does not damage. Compact and user-friendly. Can be equipped with drive units for mobile applications. SPECIFICATIONS Max. Breakaway force: 292 lbs / 132.4 kg Product weight: 6.6 lbs / 3 kg Dimensions: 4 x 3.6 x 4.8 inches / 101.6 x 91.44 x 121.9 mm Magnet pole base: 101.1 mm x 90 mm.

This text is machine translated.
