Name: Magswitch 81101565 Quicklox Trouser Plate - 81101565, Dust Collection System #####Schlauchplatte
Brand: Magswitch
SKU: 3476905

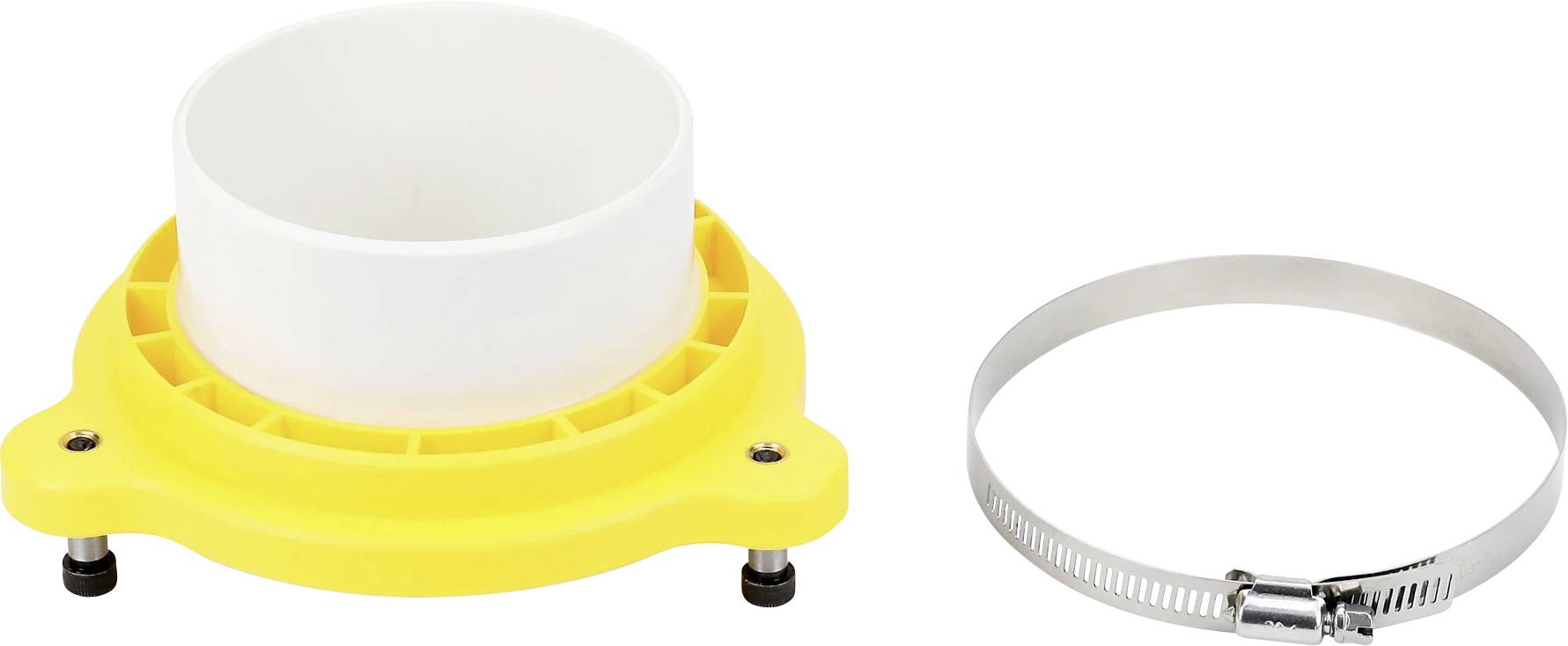

A plastic flange and metal hose clamp for dust collection system attachment.

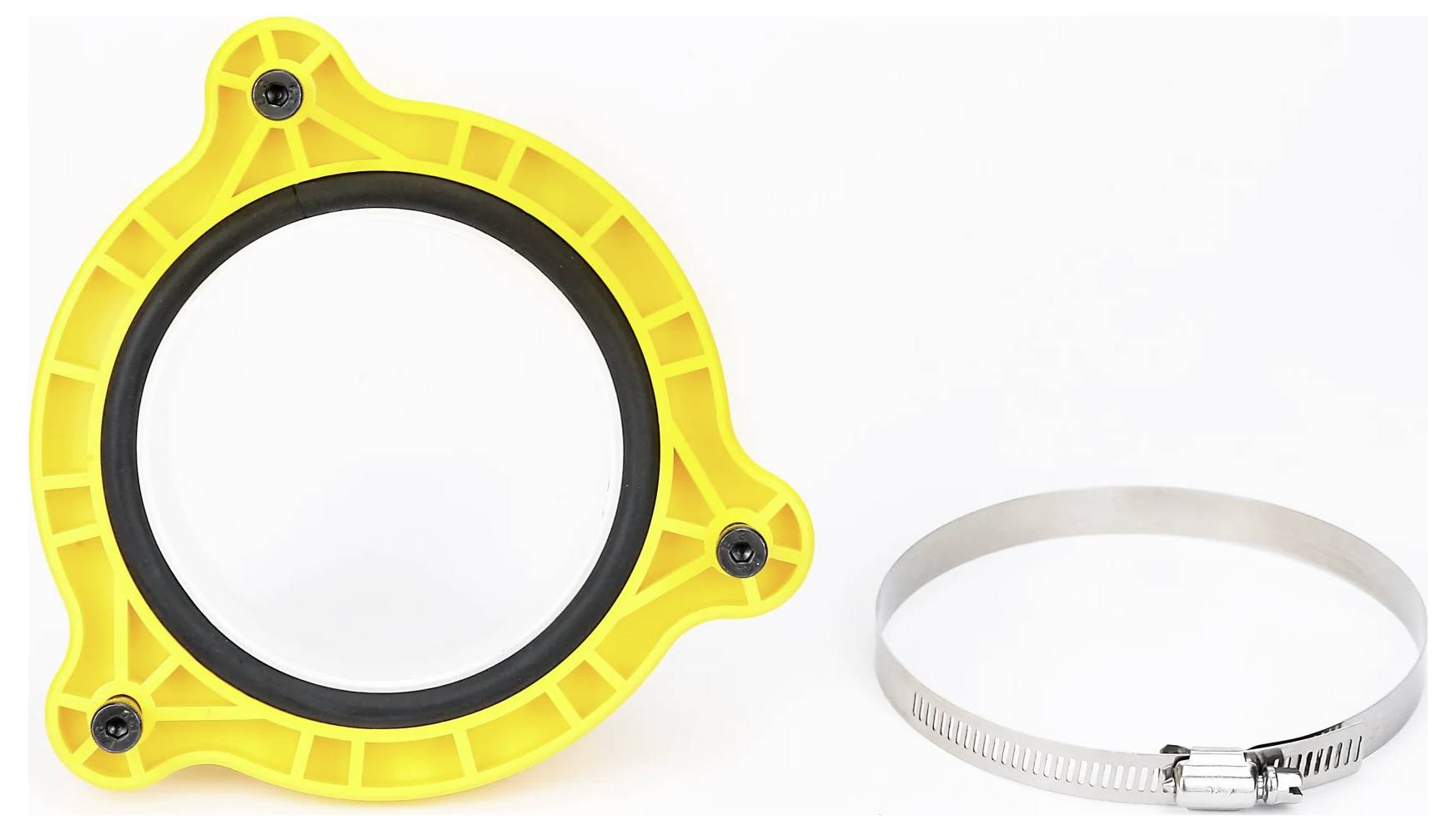

A yellow round plastic clamp and a metal hose clamp are placed against a white background, showcasing different clamping tools.

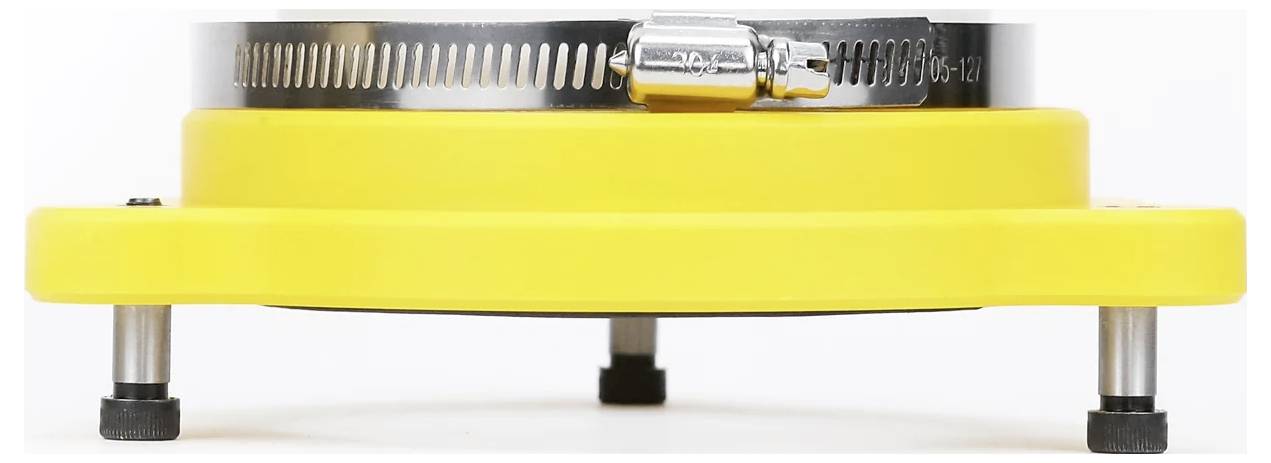

A close-up of a yellow instrument with adjustable metal fittings and screws, possibly for leveling or stability on surfaces.

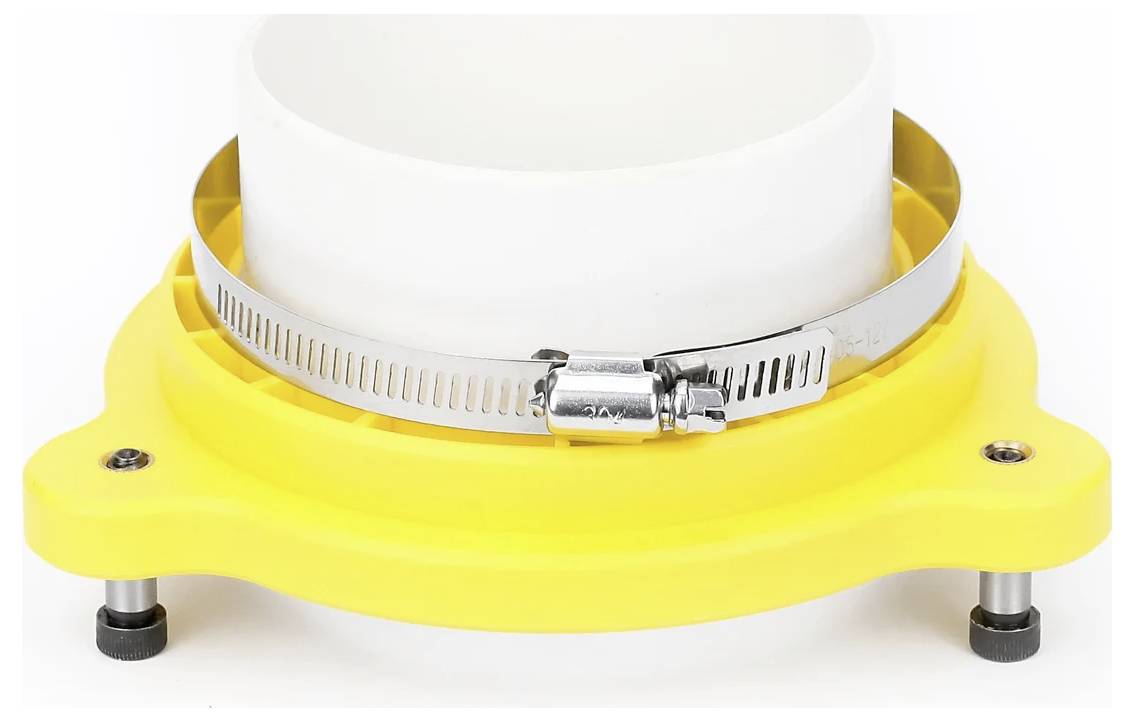

A yellow plastic structure with a metal clamp secures a white cylindrical object.

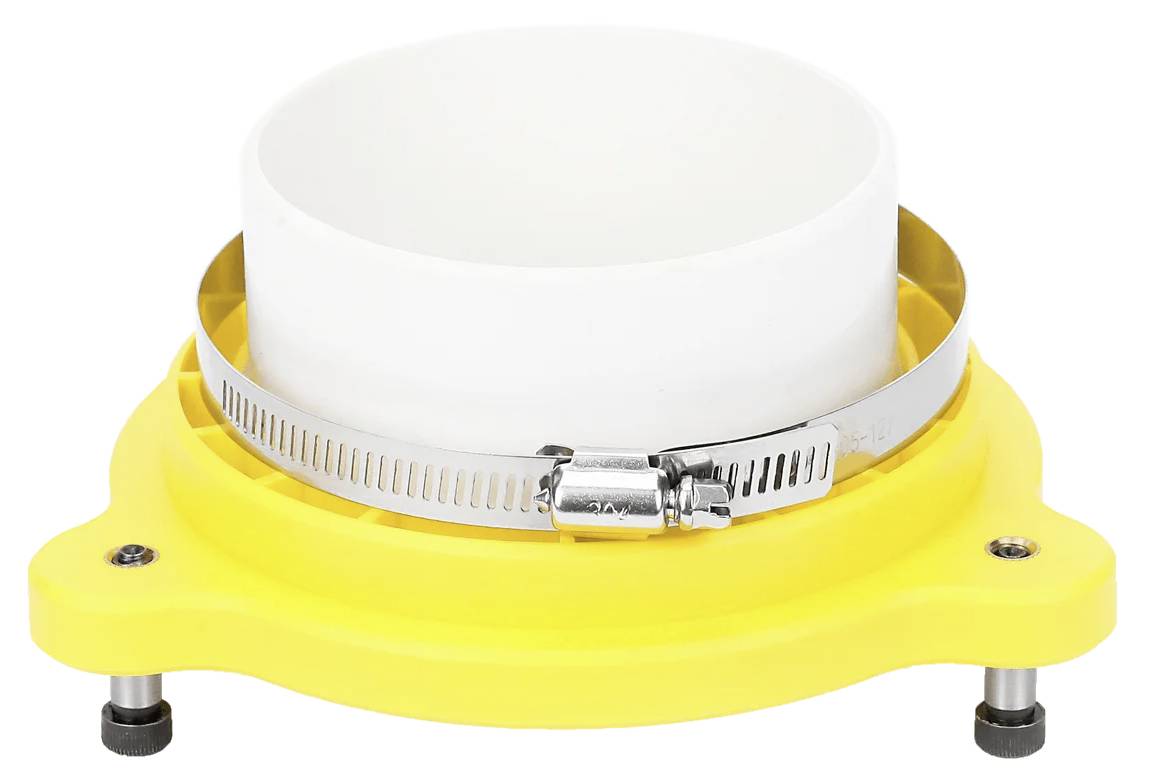

A yellow leveling mount with a metal band, used for securing pipes in place, featuring adjustable feet for stability on various surfaces.

1/5

EAN:

Part number:

Item no:

Unavailable

Sales and shipping:

Conrad ElectronicTerms & Conditions

Report legal concerns

Highlights & Details

Quicklox Trouser Plate - 81101565, Dust Collection System

Quick-release system, efficient dust management, snap-on/snap-off design, compatible with one PS exhaust systems.

Our service for you

Technical specifications

Total height 3.22 inches/81.8 mm
Total width 6.41 mm
Total length: 6.33 mm.

Product type: #####Schlauchplatte

Dim: (L x W x H) 6.33 x 6.41 x 81.8 mm

Length: 6.33 mm

Content: 1 pc(s)

Width: 6.41 mm

Height: 81.8 mm

Documents & Downloads

User & Safety Instructions

User & Safety Instructions 3476905 Magswitch 81101565 Quicklox Trouser Plate - 81101565, Dust Collection System #####Schlauchplatte

Description

The Quicklox Trouser Plate is the counterpart to the Tool Plate and has been specially designed to connect the suction hose to the Quicklox system. It enables quick tool changes and ensures that the suction system always works with maximum efficiency – without the laborious manual mounting of the hose. Made of high quality materials, it offers durability and reliability. A closed-cell poly foam seal protects the hose and prevents air leakage. The snap lock system provides a simple rotation and insertion movement for a secure and tangible connection. Tool-free operation enables fast change and minimizes downtime in the workflow. Total height is 81.8 mm (3.22 inches), total width is 162.9 mm (6.41 inches), and total length is 160.8 mm (6.33 inches).

This text is machine translated.
