Max Hauri 173110 19 inch Server rack cabinet power strip 1 U T23 socket Black
Datasheet (PDF)
EAN:
Part number:
Item no:
Technical specifications
- Colour, black
- Cross-section 1.50 mm2
- HAR. Name: H05VV-F.
- Current: 16.00 A
- Voltage 230 volt
- Net weight: 0.85 kg
- Number of slots: 8
- Socket type 23 (T23)
- Additional function: 19"; 1HE; 90° socket arrangement; mounting angles; connectable; without increased protection against accidental contact
- Feed: Type 23 (T23)
- Cable length 3.0 m
- Material: Aluminium
- Power: 3680.00 W
- Length: 443.0 mm
- Width 44.0 mm
- Height: 45.0 mm
- L+N+PE pin number (3-pin)
- Product type
Server rack cabinet power strip
- Suitable for server rack cabinet (inch)
19 inch
- Rack unit
1 U
- Socket type
T23 socket
- Outlets
8
- Voltage (max.)
230 V
- Dim
(L x W x H) 443 x 44 x 45 mm
- Amperage
16 A
3680 W
- Cable length
3.00 m
- Material
Aluminium
- Content
1 pc(s)
- Factory colour
Black
- Width
44 mm
- Height
45 mm
- Length
443 mm
Documents & Downloads
Datasheet
Datasheet 3396980 Max Hauri 173110 19 inch Server rack cabinet power strip 1 U T23 socket Black
User & Safety Instructions
User & Safety Instructions 3396980 Max Hauri 173110 19 inch Server rack cabinet power strip 1 U T23 socket Black
Description
PDU 19" 8x type 23 90° black 1HE/additional function: Mounting angle / material: Aluminium / feed line: Type 23 H05VV-F3G1,5 3M can be connected black

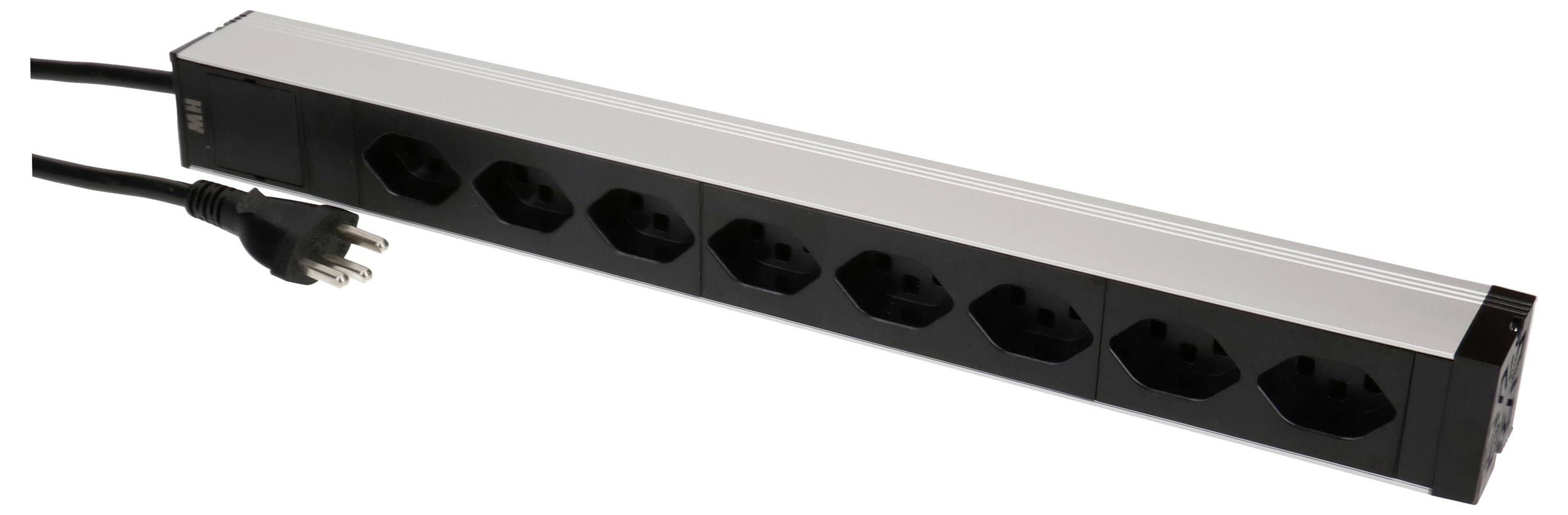

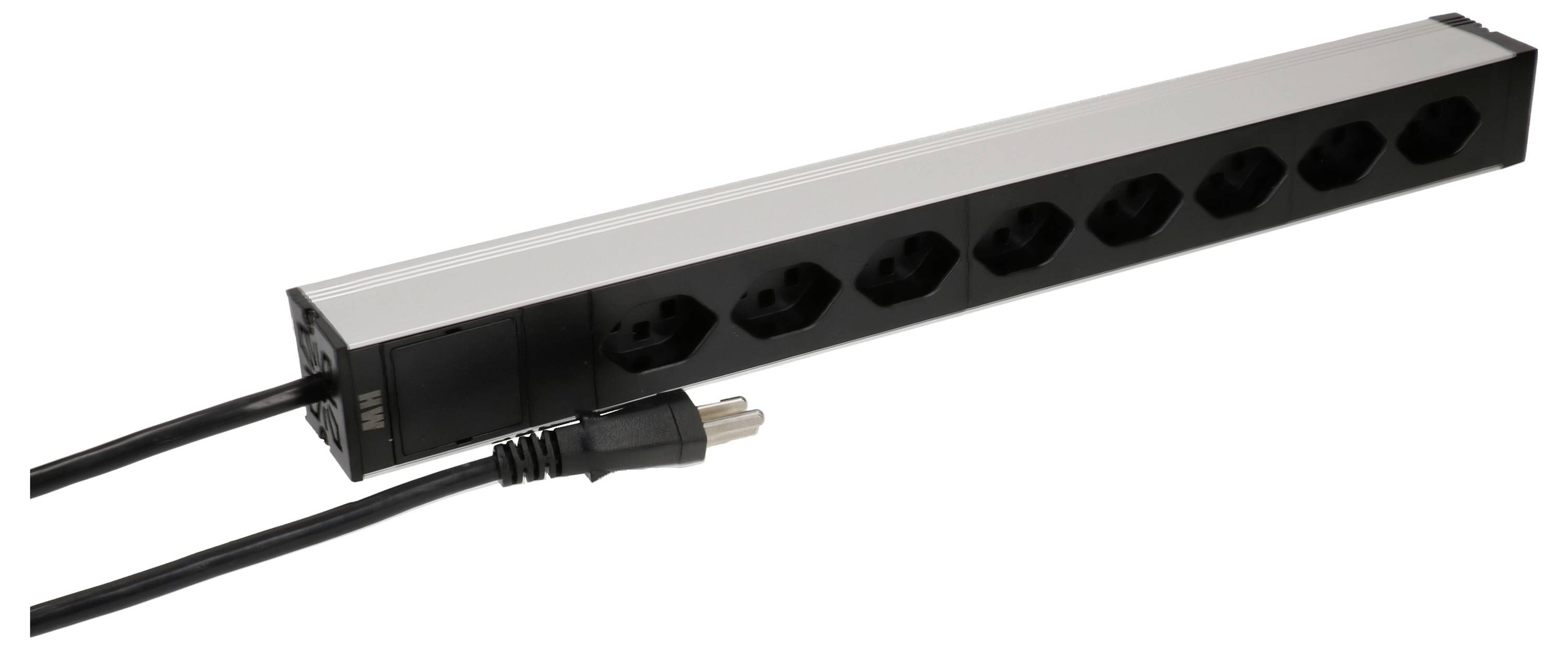

This black 19" power strip is the ideal solution to power devices in the server cabinet, for which it offers eight type 23 slots. The holder is secured using the two supplied mounting brackets, which can be mounted in angle steps of 15° as well as forwards or backwards. The feed cable with a length of 3 meters is equipped with a type 23 plug.
• Safe power supply in the server cabinet
• Up to eight devices can be connected
• Type 23 sockets for power consumption up to 16 A.
• Quick and easy mounting using mounting brackets
• Inclined or offset mounting possible
This text is machine translated.
This black 19" power strip is the ideal solution to power devices in the server cabinet, for which it offers eight type 23 slots. The holder is secured using the two supplied mounting brackets, which can be mounted in angle steps of 15° as well as forwards or backwards. The feed cable with a length of 3 meters is equipped with a type 23 plug.
• Safe power supply in the server cabinet
• Up to eight devices can be connected
• Type 23 sockets for power consumption up to 16 A.
• Quick and easy mounting using mounting brackets
• Inclined or offset mounting possible
