Name: Max Hauri 173185 Cable winder 15.00 m T13 plug
Brand: Max Hauri
SKU: 3396988

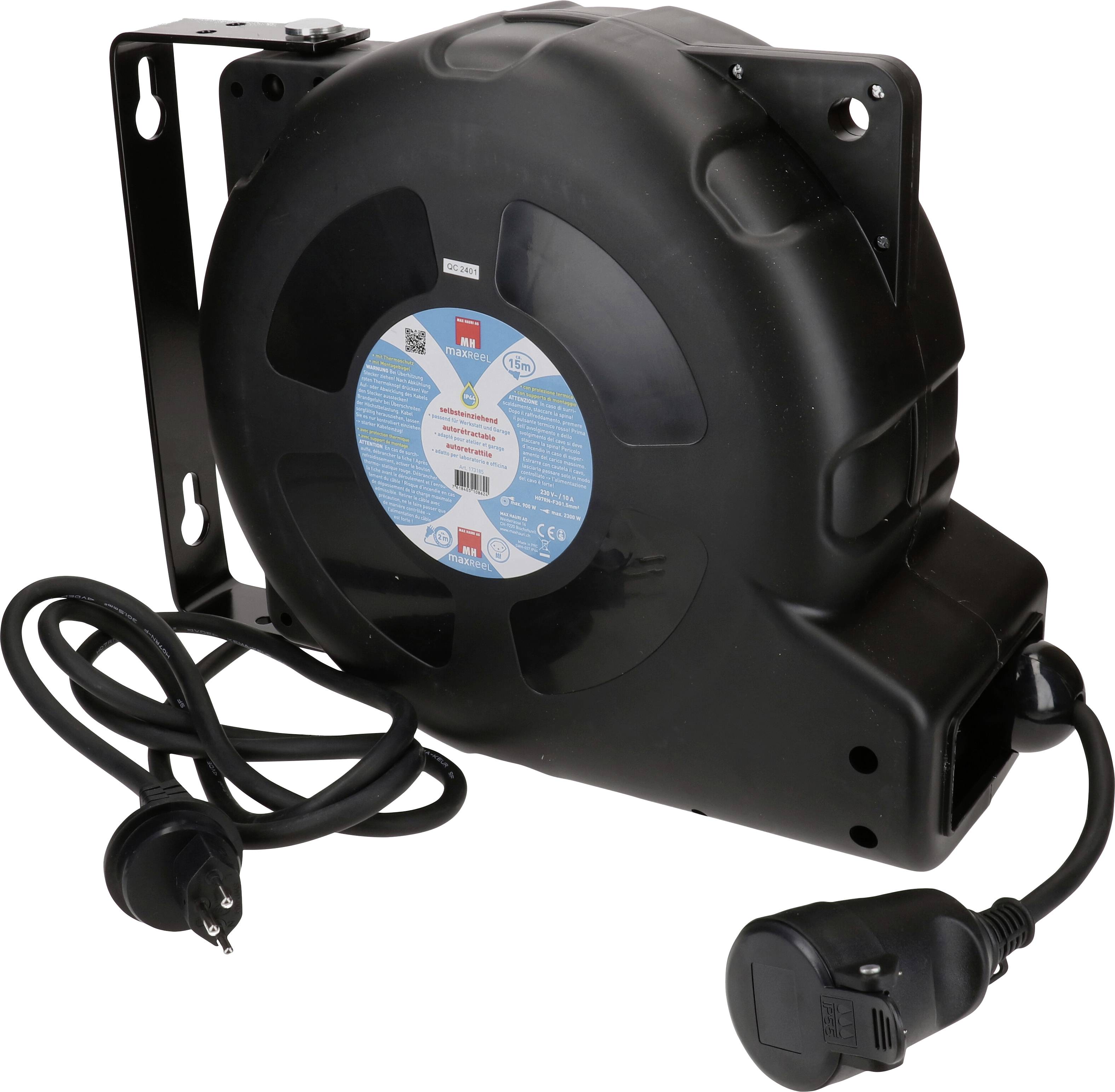

Automatic cable reel in black housing, mountable, with power cable and socket extension. Ideal for workshops.

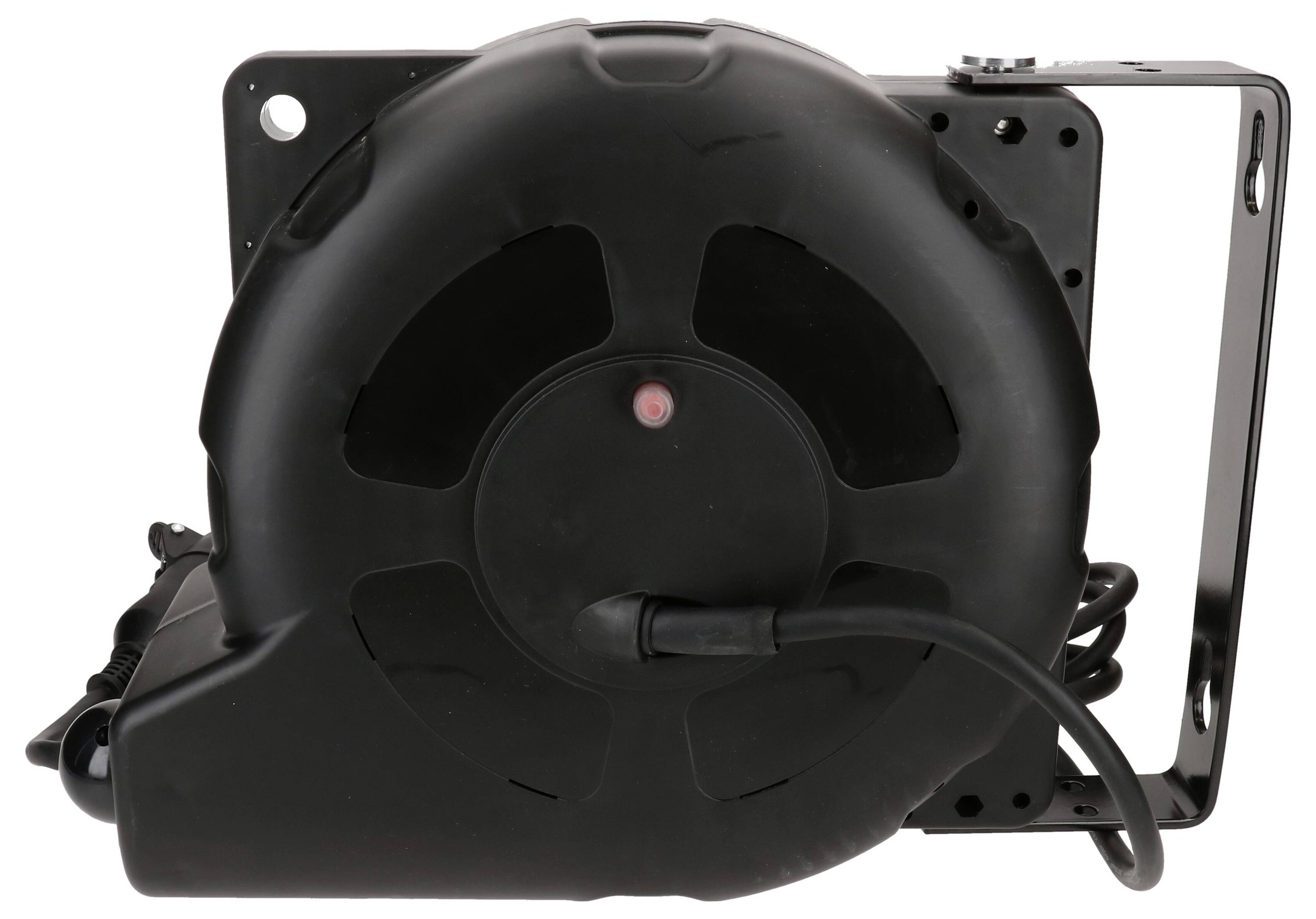

A black plastic housing unit with cable and circular structure, mounted on a metal frame.

1/2

Datasheet (PDF)

Unavailable

Sales and shipping:

Conrad ElectronicTerms & Conditions

Report legal concerns

Technical specifications

Colour, black
Cross-section 1.50 mm2
HAR. Name: H07RN-F
Cable properties: Medium mechanical protection; for use in dry rooms
Current: 10.00 A
Voltage 230 volt
Net weight: 8.35 kg
Number of slots: 1
Socket type 13 (T13) IP55
Additional function: Cable rewind
Cable length 15.0 m
Power: 2300.00 W
Protection type (IP) IP44
Length: 420.0 mm
Width 150.0 mm
Height: 300.0 mm
Plug type 13 (T13) IP55
Power rolled up 900 W

Product type: Cable winder

Cable length: 15.00 m

Type A: T13 plug

Type B: T13 socket

Outlets: 1

Cable standard: H07RN-F 3G 1,5 mm²

Used at: Indoors

Material: Rubber

Factory colour: Black

Nominal input voltage: 230 V

Nominal current (details): 10 A

Power rating: 2300 W

Load capacity (wound/unwound): 900 W

Type: Cable rewind

Weight: 8.35 kg

: IP44

Documents & Downloads

Datasheet

Datasheet 3396988 Max Hauri 173185 Cable winder 15.00 m T13 plug

User & Safety Instructions

User & Safety Instructions 3396988 Max Hauri 173185 Cable winder 15.00 m T13 plug

Description

Automatic cable roll black IP44 / voltage: 230V / current: 10A / cable retraction, increased contact protection, thermal protection, cable lock approx. 40cm steps / cable: H07RN-F3G1.5, 15m, black, with socket: IP55 type 13 / supply: H07RN-F3G1.5, 2m, black, with plug: IP55 type 13

This REELY cable reel supplies a device with power. The protection class IP44 comprises protection against the penetration of smallest, solid foreign objects (IP4X) and against all-sided water spray (IPX4) with the hinged lid closed. Even after years of outdoor exposure the cable does not become brittle, since it is resistant to UV-rays, oil as well as acids. The cable is automatically wound up after use. This effectively prevents accidents caused by cables lying around. The integrated bracket for wall mounting allows the cable reel to be fixed firmly to a wall or a cabinet. A thermal protection is integrated in the cable reel to protect against overheating.

• Guaranteed protection against the ingress of solid foreign objects and all-sided water (IP44)
• Resistant cable to UV rays, oil and acids
• Space saving and quick to use
• No cables lying around
• Simple and secure mounting
• High security
