Name: MEAN WELL DETN01L-12 DC/DC converter (module) 42 mA 1 W No. of outputs: 2 x Content 1 pc(s)
Brand: MEAN WELL
SKU: 2143560
Availability: InStock

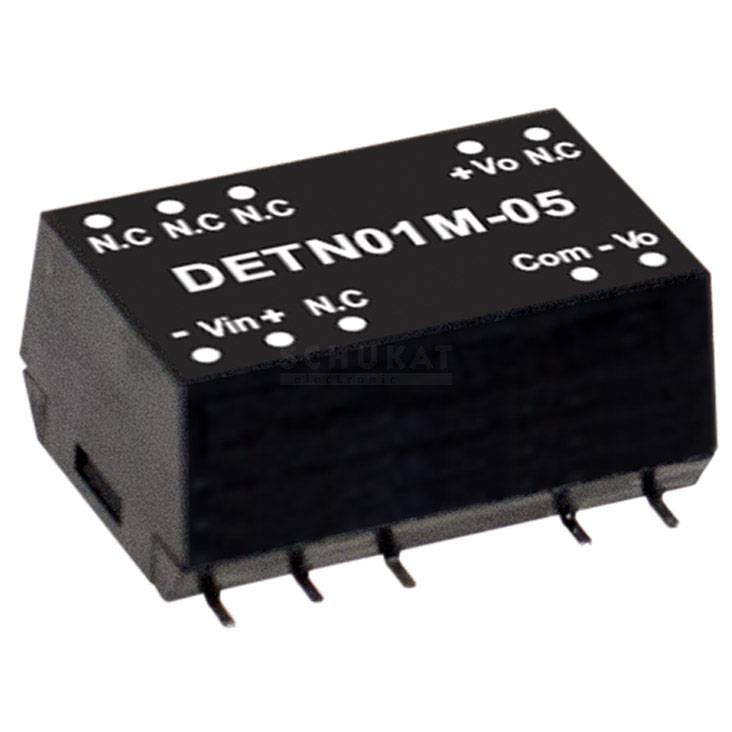

A black electronic component with the inscription 'DET01M-05' and various connection points for a circuit.

Datasheet (PDF)

Fast track dispatch on Thu 15 Oct

2 Piece(s)

Sales and shipping:

Conrad ElectronicTerms & Conditions

Number

Piece(s)

Total (€ 5.99 / piece)

€ 5.99

incl. VAT

Only 2 Piece(s) available

14-day return policy included

Report legal concerns

Highlights & Details

MEANWELL SMD DC/DC converter modules series DETN01 SMD Case Dual Output Input voltage ratio: 1:1 Power: 1 W

In the SMD housing
For direct PCB mounting
Input/output insulation 3000 V DC
According to EN 55032 Class B transmitted without additional components
Efficiency up to 83%
Circuit breaker
Low Cost

Technical specifications

Product type: DC/DC converter (module)

Type: DETN01L-12

Min. input voltage: 4.5 V DC

Input voltage (max.): 5.5 V DC

No. of outputs: 2 x

Max. output current: 42 mA

Output current (max.) - rounded: 42 mA

Efficiency (max.): 78 %

: 1 W

Insulation voltage: 3000 V DC

Connection: Pins

PSU features: DC-to-DC converter

Operating temperature (min.): -40 °C

Operating temperature (max.): +90 °C

Dim: (L x W x H) 15.24 x 10.9 x 7.1 mm

Height: 7.1 mm

Length: 15.24 mm

Width: 10.9 mm

Output voltage (max.): 12 V DC
-12 V DC

Output current (min.): 4.2 mA

Weight: 1.2 g

Content: 1 pc(s)

Compliance & Certifications

Certified by EU Garan

Variants(All information include VAT, plus shipping costs)

Input voltage (max.)

Output current (max.) - rounded

Min. input voltage

MEAN WELL DETN01L-12 DC/DC converter (module) 42 mA 1 W No. of outputs: 2 x Content 1 pc(s)

Item no:2143560

Fast track dispatch on Thu 15 Oct

2 Piece(s)Conrad Electronic

This article

5.5 V DC

42 mA

4.5 V DC

Piece(s)

Minimum order quantity: 1

Multiple: 1

€ 5.99^*

MEAN WELL DETN01L-05 DC/DC converter (module) 100 mA 1 W No. of outputs: 2 x Content 1 pc(s)

Item no:2143559

Fast track dispatch on Thu 15 Oct

2 Piece(s)Conrad Electronic

5.5 V DC

100 mA

4.5 V DC

Piece(s)

Minimum order quantity: 1

Multiple: 1

€ 5.99^*

MEAN WELL DETN01L-15 DC/DC converter (module) 34 mA 1 W No. of outputs: 2 x Content 1 pc(s)

Item no:2143660

Fast track dispatch on Thu 15 Oct

48 Piece(s)Conrad Electronic

5.5 V DC

34 mA

4.5 V DC

Piece(s)

Minimum order quantity: 1

Multiple: 1

€ 5.99^*

MEAN WELL DETN01M-05 DC/DC converter (module) 100 mA 1 W No. of outputs: 2 x Content 1 pc(s)

Item no:2143347

Dispatches on Fri 16 Oct

5 Piece(s)Conrad Electronic

13.2 V DC

100 mA

10.8 V DC

Piece(s)

Minimum order quantity: 1

Multiple: 1

€ 6.49^*

MEAN WELL DETN01M-12 DC/DC converter (module) 42 mA 1 W No. of outputs: 2 x Content 1 pc(s)

Item no:2143338

Fast track dispatch on Thu 15 Oct

1 Piece(s)Conrad Electronic

13.2 V DC

42 mA

10.8 V DC

Piece(s)

Minimum order quantity: 1

Multiple: 1

€ 5.99^*

MEAN WELL DETN01M-15 DC/DC converter (module) 34 mA 1 W No. of outputs: 2 x Content 1 pc(s)

Item no:2143355

Fast track dispatch on Thu 15 Oct

27 Piece(s)Conrad Electronic

13.2 V DC

34 mA

10.8 V DC

Piece(s)

Minimum order quantity: 1

Multiple: 1

€ 5.99^*

MEAN WELL DETN01N-05 DC/DC converter (module) 100 mA 1 W No. of outputs: 2 x Content 1 pc(s)

Item no:2143353

Fast track dispatch on Thu 15 Oct

1 Piece(s)Conrad Electronic

26.4 V DC

100 mA

21.6 V DC

Piece(s)

Minimum order quantity: 1

Multiple: 1

€ 5.99^*

MEAN WELL DETN01N-12 DC/DC converter (module) 42 mA 1 W No. of outputs: 2 x Content 1 pc(s)

Item no:2143488

Fast track dispatch on Thu 15 Oct

1 Piece(s)Conrad Electronic

26.4 V DC

42 mA

21.6 V DC

Piece(s)

Minimum order quantity: 1

Multiple: 1

€ 5.99^*

MEAN WELL DETN01N-15 DC/DC converter (module) 34 mA 1 W No. of outputs: 2 x Content 1 pc(s)

Item no:2143449

Fast track dispatch on Thu 15 Oct

1 Piece(s)Conrad Electronic

26.4 V DC

34 mA

21.6 V DC

Piece(s)

Minimum order quantity: 1

Multiple: 1

€ 5.99^*

Documents & Downloads

Datasheet

Datasheet 2143560 MEAN WELL DETN01L-12 DC/DC converter (module) 42 mA 1 W No. of outputs: 2 x Content 1 pc(s)

User & Safety Instructions

User & Safety Instructions 2143560 MEAN WELL DETN01L-12 DC/DC converter (module) 42 mA 1 W No. of outputs: 2 x Content 1 pc(s)

Warranty Terms

Warranty Terms 2143560 MEAN WELL DETN01L-12 DC/DC converter (module) 42 mA 1 W No. of outputs: 2 x Content 1 pc(s)

Description

MEAN CORRUGATED has its program of converters the unregulated 1W SMD DC/DC converter with Dual Output DETN01. In comparison to the converters of the last generation DET01, the new series of DETN01 a larger operating temperature range (-40 to +90 °C) and a higher degree of efficiency (up to 83%). In addition, the pin assignment for the new series DETN01 identical to the original DET01 converters, so that a redesign of the circuit board layouts is necessary in order to use the new converter. Suitable applications include IoT, electronics, telecommunications, networking, industrial control and distributed power architectures.
