Name: MEAN WELL DKM10A-05 DC/DC converter (module) 1 A 10 W No. of outputs: 2 x Content 1 pc(s)
Brand: MEAN WELL
SKU: 2143568
Availability: InStock

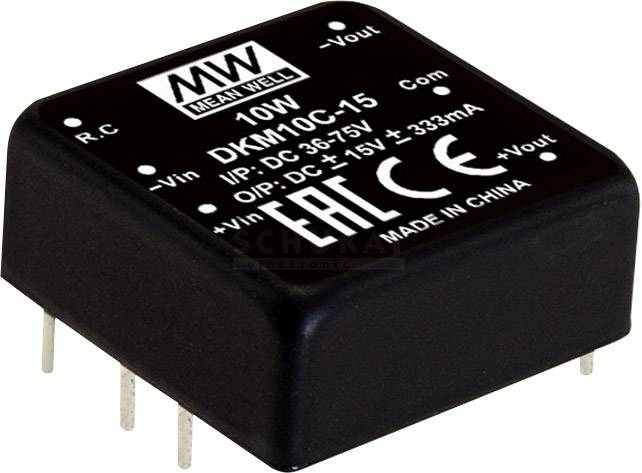

A rectangular electrical component with a black casing and silver pins, labelled with 'MW', 'DKM10C-15', '10W', 'EAC', 'CE'.

Datasheet (PDF)

Fast track dispatch on Wed 21 Oct

2 Piece(s)

Sales and shipping:

Conrad ElectronicTerms & Conditions

Number

Piece(s)

Total (€ 22.99 / piece)

€ 22.99

incl. VAT

Only 2 Piece(s) available

14-day return policy included

Report legal concerns

Highlights & Details

MEANWELL DC/DC converter module series DKM10 1"x1" Case dual output input voltage ratio: 2:1 Power: 10W regulated

In the DIP 1 x 1 inch housing
2:1 input voltage range
No minimum load required
Input/output insulation 1500 V DC
Protection: short circuit (continuously), overload, over voltage, input voltage
According to EN 55032 Class A transmitted without additional components
Remote control on/Aus-Steuerung and trim mouse gear (±10%)
Efficiency up to 90%

Technical specifications

Product type: DC/DC converter (module)

Type: DKM10A-05

Min. input voltage: 4.5 V DC

Input voltage (max.): 5.5 V DC

No. of outputs: 2 x

Max. output current: 1 A

Output current (max.) - rounded: 1 A

Efficiency (max.): 85 %

: 10 W

Insulation voltage: 1500 V DC

Connection: Pins

PSU features: DC-to-DC converter

Operating temperature (min.): -40 °C

Operating temperature (max.): +85 °C

Dim: (L x W x H) 25.4 x 25.4 x 10.2 mm

Height: 10.2 mm

Length: 25.4 mm

Width: 25.4 mm

Output voltage (max.): 5 V DC
-5 V DC

Weight: 18 g

Content: 1 pc(s)

Compliance & Certifications

Certified by EU Garan

Variants(All information include VAT, plus shipping costs)

Input voltage (max.)

Output current (max.) - rounded

Output voltage (max.)

Min. input voltage

MEAN WELL DKM10A-05 DC/DC converter (module) 1 A 10 W No. of outputs: 2 x Content 1 pc(s)

Item no:2143568

Fast track dispatch on Wed 21 Oct

2 Piece(s)Conrad Electronic

This article

5.5 V DC

1 A

5 V DC

4.5 V DC

Piece(s)

Minimum order quantity: 1

Multiple: 1

€ 22.99^*

MEAN WELL DKM10A-12 DC/DC converter (module) 416 mA 10 W No. of outputs: 2 x Content 1 pc(s)

Item no:2143493

Dispatches on Thu 22 Oct

3 Piece(s)Conrad Electronic

18 V DC

416 mA

12 V DC

9 V DC

Piece(s)

Minimum order quantity: 1

Multiple: 1

€ 23.99^*

MEAN WELL DKM10A-15 DC/DC converter (module) 333 mA 10 W No. of outputs: 2 x Content 1 pc(s)

Item no:2143435

Dispatches on Thu 22 Oct

37 Piece(s)Conrad Electronic

18 V DC

333 mA

15 V DC

9 V DC

Piece(s)

Minimum order quantity: 1

Multiple: 1

€ 27.99^*

MEAN WELL DKM10B-05 DC/DC converter (module) 1 A 10 W No. of outputs: 2 x Content 1 pc(s)

Item no:2143494

Fast track dispatch on Wed 21 Oct

2 Piece(s)Conrad Electronic

36 V DC

1 A

5 V DC

18 V DC

Piece(s)

Minimum order quantity: 1

Multiple: 1

€ 25.99^*

MEAN WELL DKM10B-15 DC/DC converter (module) 333 mA 10 W No. of outputs: 2 x Content 1 pc(s)

Item no:2143570

Fast track dispatch on Wed 21 Oct

1 Piece(s)Conrad Electronic

5.5 V DC

333 mA

15 V DC

4.5 V DC

Piece(s)

Minimum order quantity: 1

Multiple: 1

€ 22.99^*

MEAN WELL DKM10C-05 DC/DC converter (module) 1 A 10 W No. of outputs: 2 x Content 1 pc(s)

Item no:2143336

Fast track dispatch on Wed 21 Oct

1 Piece(s)Conrad Electronic

75 V DC

1 A

5 V DC

36 V DC

Piece(s)

Minimum order quantity: 1

Multiple: 1

€ 22.99^*

MEAN WELL DKM10C-12 DC/DC converter (module) 416 mA 10 W No. of outputs: 2 x Content 1 pc(s)

Item no:2143451

Fast track dispatch on Wed 21 Oct

1 Piece(s)Conrad Electronic

75 V DC

416 mA

12 V DC

36 V DC

Piece(s)

Minimum order quantity: 1

Multiple: 1

€ 22.99^*

MEAN WELL DKM10C-15 DC/DC converter (module) 333 mA 10 W No. of outputs: 2 x Content 1 pc(s)

Item no:2143495

Fast track dispatch on Wed 21 Oct

1 Piece(s)Conrad Electronic

75 V DC

333 mA

15 V DC

36 V DC

Piece(s)

Minimum order quantity: 1

Multiple: 1

€ 22.99^*

MEAN WELL DKM10E-05 DC/DC converter (module) 1 A 10 W No. of outputs: 2 x Content 1 pc(s)

Item no:2143669

Dispatches on Thu 22 Oct

5 Piece(s)Conrad Electronic

9 V DC

1 A

5 V DC

4.7 V DC

Piece(s)

Minimum order quantity: 1

Multiple: 1

€ 29.99^*

MEAN WELL DKM10E-12 DC/DC converter (module) 416 mA 10 W No. of outputs: 2 x Content 1 pc(s)

Item no:2143571

Dispatches on Thu 22 Oct

1 Piece(s)Conrad Electronic

18 V DC

416 mA

12 V DC

4.75 V DC

Piece(s)

Minimum order quantity: 1

Multiple: 1

€ 24.99^*

Documents & Downloads

Datasheet

Datasheet 2143568 MEAN WELL DKM10A-05 DC/DC converter (module) 1 A 10 W No. of outputs: 2 x Content 1 pc(s)

User & Safety Instructions

User & Safety Instructions 2143568 MEAN WELL DKM10A-05 DC/DC converter (module) 1 A 10 W No. of outputs: 2 x Content 1 pc(s)

Warranty Terms

Warranty Terms 2143568 MEAN WELL DKM10A-05 DC/DC converter (module) 1 A 10 W No. of outputs: 2 x Content 1 pc(s)

Description

With the new series DKM029 10 offers mean corrugated converter modules with high power density in a 1 x 1 inch miniature housing in the power range of 10 W with dual output. The DC/DC converter have an industry standard pin assignment, a wide input voltage range of 2:1, a very wide operating temperature range from -40 to +85 °C, as well as over 1500 VDC I/O insulation. Suitable applications include IoT, electronics, telecommunications, networking, industrial control and distributed power architecture, etc.
