Name: MEAN WELL DLC03A-15 DC/DC converter (module) 100 mA 3 W No. of outputs: 2 x Content 1 pc(s)
Brand: MEAN WELL
SKU: 2143663
Availability: InStock

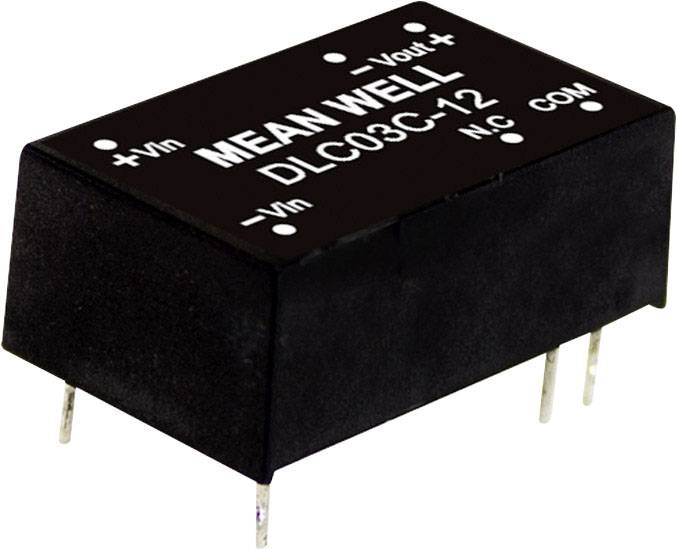

A black DC-DC converter with the label 'Mean Well DLC03C-12', showing Vin, Vout, N.C. and COM pins.

Datasheet (PDF)

Fast track dispatch on Wed 21 Oct

1 Piece(s)

Sales and shipping:

Conrad ElectronicTerms & Conditions

Number

Piece(s)

Total (€ 10.99 / piece)

€ 10.99

incl. VAT

Only 1 Piece(s) available

14-day return policy included

Report legal concerns

Highlights & Details

MEANWELL DC/DC converter modules DLC series 03 DIP/DIL 16 Case Dual Output Input voltage ratio: 2:1 Power 3 W regulated

In DIP16/DIL 16 casing
2:1 input voltage range
No minimum load required
Input/output insulation 1500 V DC
Protection: short circuit (continuously), overload, input voltage
According to EN 55032 Class B transmitted without additional components
Efficiency up to 82%

Technical specifications

Product type: DC/DC converter (module)

Type: DLC03A-15

Min. input voltage: 9 V DC

Input voltage (max.): 18 V DC

No. of outputs: 2 x

Max. output current: 100 mA

Output current (max.) - rounded: 100 mA

Efficiency (max.): 81 %

: 3 W

Insulation voltage: 1500 V DC

Connection: Pins

PSU features: DC-to-DC converter

Operating temperature (min.): -40 °C

Operating temperature (max.): +85 °C

Dim: (L x W x H) 22.1 x 13.8 x 8.55 mm

Height: 8.55 mm

Length: 22.1 mm

Width: 13.8 mm

Output voltage (max.): 15 V DC
-15 V DC

Weight: 4.5 g

Content: 1 pc(s)

Compliance & Certifications

Certified by EU Garan

Variants(All information include VAT, plus shipping costs)

Input voltage (max.)

Output current (max.) - rounded

Output voltage (max.)

Min. input voltage

MEAN WELL DLC03A-15 DC/DC converter (module) 100 mA 3 W No. of outputs: 2 x Content 1 pc(s)

Item no:2143663

Fast track dispatch on Wed 21 Oct

1 Piece(s)Conrad Electronic

This article

18 V DC

100 mA

15 V DC

9 V DC

Piece(s)

Minimum order quantity: 1

Multiple: 1

€ 10.99^*

MEAN WELL DLC03A-05 DC/DC converter (module) 300 mA 3 W No. of outputs: 2 x Content 1 pc(s)

Item no:2143406

Dispatches on Thu 22 Oct

3 Piece(s)Conrad Electronic

18 V DC

300 mA

5 V DC

9 V DC

Piece(s)

Minimum order quantity: 1

Multiple: 1

€ 10.99^*

MEAN WELL DLC03A-12 DC/DC converter (module) 125 mA 3 W No. of outputs: 2 x Content 1 pc(s)

Item no:2143450

Dispatches on Fri, 29 Jan 2027

Conrad Electronic

18 V DC

125 mA

12 V DC

9 V DC

Piece(s)

Minimum order quantity: 1

Multiple: 1

€ 11.99^*

MEAN WELL DLC03B-05 DC/DC converter (module) 300 mA 3 W No. of outputs: 2 x Content 1 pc(s)

Item no:2143397

Dispatches on Thu 22 Oct

5 Piece(s)Conrad Electronic

36 V DC

300 mA

5 V DC

18 V DC

Piece(s)

Minimum order quantity: 1

Multiple: 1

€ 13.99^*

MEAN WELL DLC03B-12 DC/DC converter (module) 125 mA 3 W No. of outputs: 2 x Content 1 pc(s)

Item no:2143664

Fast track dispatch on Wed 21 Oct

3 Piece(s)Conrad Electronic

36 V DC

125 mA

12 V DC

18 V DC

Piece(s)

Minimum order quantity: 1

Multiple: 1

€ 10.99^*

MEAN WELL DLC03B-15 DC/DC converter (module) 100 mA 3 W No. of outputs: 2 x Content 1 pc(s)

Item no:2143665

Dispatches on Thu 22 Oct

116 Piece(s)Conrad Electronic

36 V DC

100 mA

15 V DC

18 V DC

Piece(s)

Minimum order quantity: 1

Multiple: 1

€ 11.99^*

MEAN WELL DLC03C-05 DC/DC converter (module) 300 mA 3 W No. of outputs: 2 x Content 1 pc(s)

Item no:2143666

Fast track dispatch on Wed 21 Oct

1 Piece(s)Conrad Electronic

75 V DC

300 mA

5 V DC

36 V DC

Piece(s)

Minimum order quantity: 1

Multiple: 1

€ 10.99^*

MEAN WELL DLC03C-12 DC/DC converter (module) 15 V DC 125 mA 3 W No. of outputs: 2 x Content 1 pc(s)

Item no:2143565

Dispatches on Thu 22 Oct

11 Piece(s)Conrad Electronic

36 V DC

125 mA

12 V DC

9 V DC

Piece(s)

Minimum order quantity: 1

Multiple: 1

€ 11.99^*

MEAN WELL DLC03C-15 DC/DC converter (module) 100 mA 3 W No. of outputs: 2 x Content 1 pc(s)

Item no:2143667

Dispatches on Thu 22 Oct

59 Piece(s)Conrad Electronic

75 V DC

100 mA

15 V DC

36 V DC

Piece(s)

Minimum order quantity: 1

Multiple: 1

€ 12.99^*

Documents & Downloads

Datasheet

Datasheet 2143663 MEAN WELL DLC03A-15 DC/DC converter (module) 100 mA 3 W No. of outputs: 2 x Content 1 pc(s)

User & Safety Instructions

User & Safety Instructions 2143663 MEAN WELL DLC03A-15 DC/DC converter (module) 100 mA 3 W No. of outputs: 2 x Content 1 pc(s)

Warranty Terms

Warranty Terms 2143663 MEAN WELL DLC03A-15 DC/DC converter (module) 100 mA 3 W No. of outputs: 2 x Content 1 pc(s)

Description

MEAN CORRUGATED expands its range of 3 W DC/DC converters with dual output to the DLC series 03 in the DIP16 casing. In addition to a wide input range of 2:1 and an extremely wide operating temperature range from -40 to +90 °C, it is with 1500 V DC I/O insulation. Suitable applications include IoT, electronics, telecommunications, networking, industrial control and distributed power architecture.
