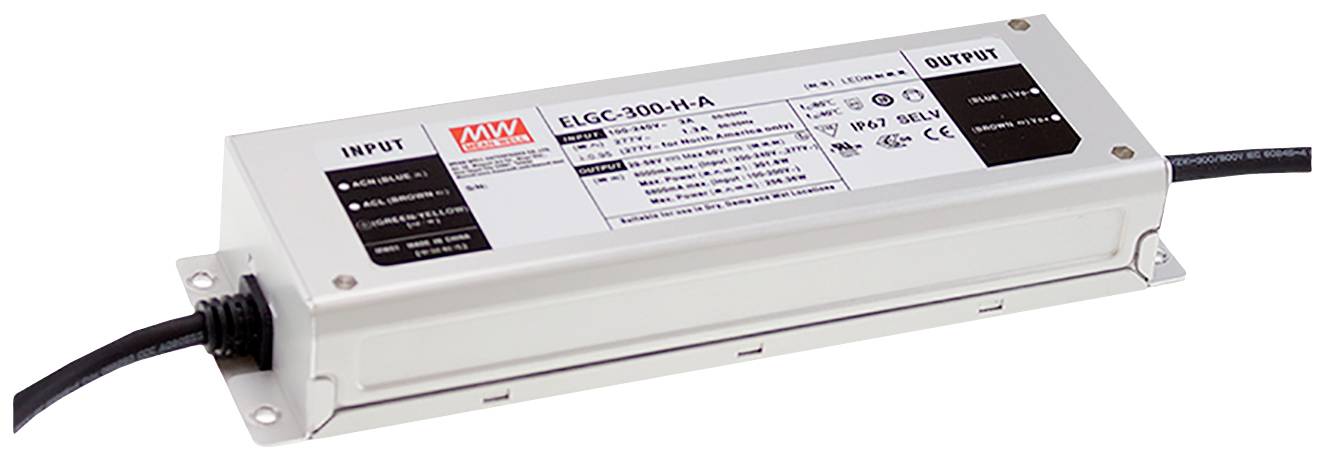

MEAN WELL ELGC-300-L-ADA LED driver 301 W 116 - 232 V 1 pc(s)
EAN:
Part number:
Item no:
Datasheet (PDF)
Highlights & Details
ELGC-300-L-ADA
- 116 - 232 V
Technical specifications
- Connection type, input: Stranded wireInput current 1.6 AEfficiency level 94.5 %Leakage current, max. 0.75 mASwitch-on current, max. 45 A
- Product type
LED driver
- Dim
(L x W x H) 246 x 77 x 39.50 mm
- Output voltage (max.)
232 V
- Output voltage (min.)
116 V
- Connection
Braid
- Max. power
301 W
- No. of outputs
1 x
- Input voltage (max.)
305 V AC
431 V DC
- Min. input voltage
100 V AC
142 V DC
- Weight
1450 g
- Power range
301 W (max)
- Width
77 mm
- Height
39.50 mm
- Length
246 mm
- Max. temperature
+85 °C
- Min. temperature
-40 °C
- UKCA
yes
Compliance & Certifications
Certified by EU Garan
Documents & Downloads
Datasheet
Datasheet 2749270 MEAN WELL ELGC-300-L-ADA LED driver 301 W 116 - 232 V 1 pc(s)
User & Safety Instructions
User & Safety Instructions 2749270 MEAN WELL ELGC-300-L-ADA LED driver 301 W 116 - 232 V 1 pc(s)
Warranty Terms
Warranty Terms 2749270 MEAN WELL ELGC-300-L-ADA LED driver 301 W 116 - 232 V 1 pc(s)
Description
Features
- Application: LightingHousing: Closed metal
- This text is machine translated.
Hints
Caution!
Make sure you pick an LED driver/transformer that comes with the appropriate power rating.
Choose a driver/transformer that supplies approx. 30 pecent more watttage, as the current consumption (i.e. amperage) of the LEDs is key, and not the power rating of the LED provided by the LED manufacturer.
Keep in mind that the switch-on surge tend to be much higher.
