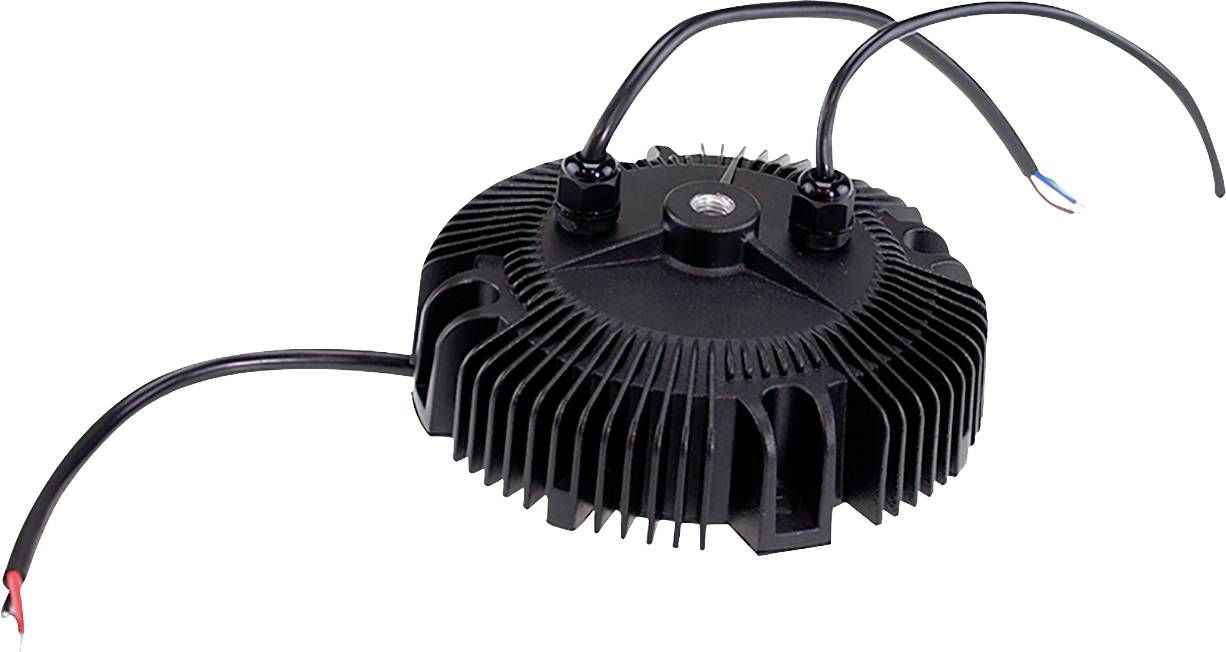

MEAN WELL HBGC-300-H-ADA LED driver 301.6 W 29 - 58 V 1 pc(s)
EAN:
Part number:
Item no:
Datasheet (PDF)
Highlights & Details
HBGC-300-H-ADA
- 29 - 58 V
Technical specifications
- Connection type, input: Stranded wireInput current 1.6 AEfficiency 92.5 %Leakage current, max. 0.75 mASwitch-on current, max. 45 A
- Product type
LED driver
- Dim
(L x W x H) 191.50 x 191.50 x 69 mm
- Output voltage (max.)
58 V
- Output voltage (min.)
29 V
- Connection
Braid
- Max. power
301.6 W
- No. of outputs
1 x
- Input voltage (max.)
305 V AC
431 V DC
- Min. input voltage
90 V AC
127 V DC
- Weight
2200 g
- Power range
301.6 W (max)
- Width
191.50 mm
- Height
69 mm
- Length
191.50 mm
- Max. temperature
+80 °C
- Min. temperature
-40 °C
Compliance & Certifications
Certified by EU Garan
Documents & Downloads
Datasheet
Datasheet 2749272 MEAN WELL HBGC-300-H-ADA LED driver 301.6 W 29 - 58 V 1 pc(s)
User & Safety Instructions
User & Safety Instructions 2749272 MEAN WELL HBGC-300-H-ADA LED driver 301.6 W 29 - 58 V 1 pc(s)
Warranty Terms
Warranty Terms 2749272 MEAN WELL HBGC-300-H-ADA LED driver 301.6 W 29 - 58 V 1 pc(s)
Description
Features
- Application: LightingHousing: Closed metal
- This text is machine translated.
Hints
Caution!
Make sure you pick an LED driver/transformer that comes with the appropriate power rating.
Choose a driver/transformer that supplies approx. 30 pecent more watttage, as the current consumption (i.e. amperage) of the LEDs is key, and not the power rating of the LED provided by the LED manufacturer.
Keep in mind that the switch-on surge tend to be much higher.
