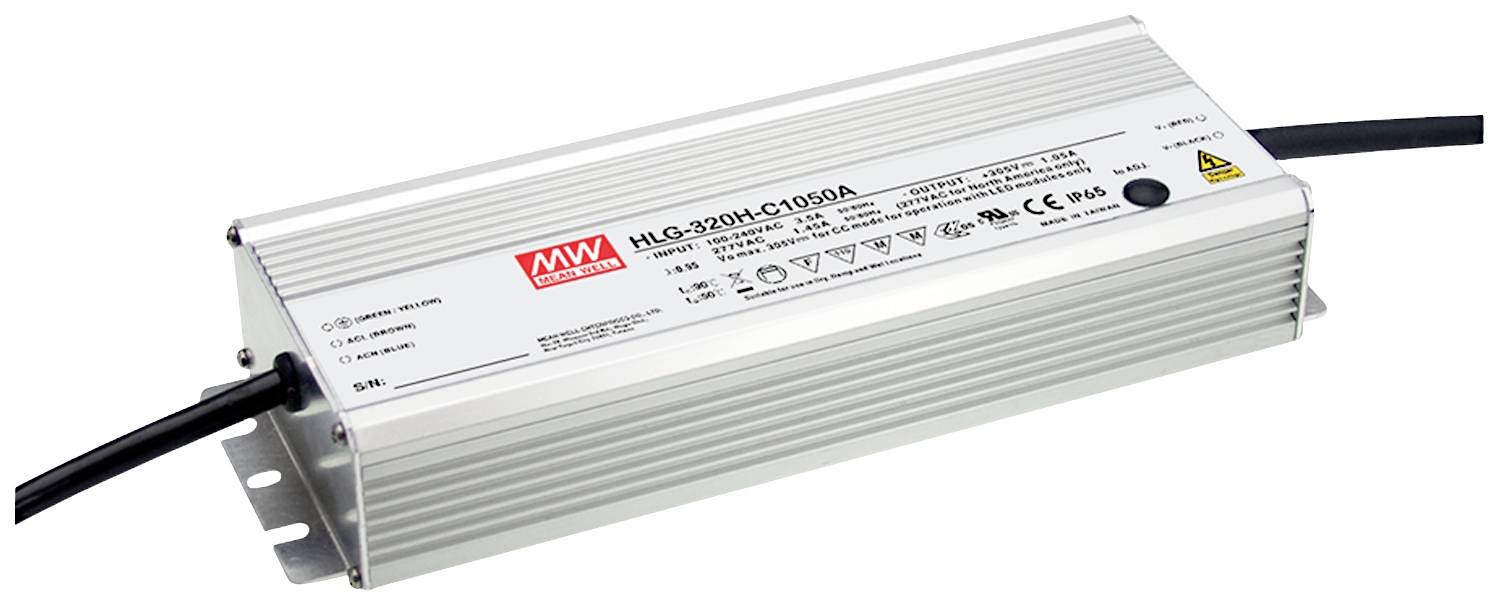

MEAN WELL LED driver Constant current 319.20 W 2.10 A 76 - 152 V dimmable 1 pc(s)
EAN:
Part number:
Item no:
Datasheet (PDF)
Highlights & Details
MEANWELL HLG-320H-C IP65/IP67 ALU-SNT
- Constant current
- 76 - 152 V
- 2.10 A
Technical specifications
- Product type
LED driver
- Type
Constant current
- Dim
(L x W x H) 252 x 90 x 43.80 mm
- Output voltage (max.)
152 V
- Output voltage (min.)
76 V
- Test mark
UL 8750,EN 61347-1,EN 61347-2-13,IEC 61347-1,IEC 61347-2-13
- Max. output current
2.10 A
- Output current (max.) - rounded
2.1 A
- Protection class
I
- LED driver features
dimmable
IP67
- Connection
Braid
- Max. power
319.20 W
- No. of outputs
1 x
- Input voltage (max.)
305 V AC
- Min. input voltage
90 V AC
- Weight
1880 g
- Power range
319.20 W (max)
- Width
90 mm
- Height
43.80 mm
- Length
252 mm
- Operating temperature (max.)
+85 °C
- Operating temperature (min.)
-40 °C
Compliance & Certifications
Certified by EU Garan
Documents & Downloads
Datasheet
Datasheet 3018530 MEAN WELL LED driver Constant current 319.20 W 2.10 A 76 - 152 V dimmable 1 pc(s)
User & Safety Instructions
User & Safety Instructions 3018530 MEAN WELL LED driver Constant current 319.20 W 2.10 A 76 - 152 V dimmable 1 pc(s)
Warranty Terms
Warranty Terms 3018530 MEAN WELL LED driver Constant current 319.20 W 2.10 A 76 - 152 V dimmable 1 pc(s)
Description
Hints
Caution!
Make sure you pick an LED driver/transformer that comes with the appropriate power rating.
Choose a driver/transformer that supplies approx. 30 pecent more watttage, as the current consumption (i.e. amperage) of the LEDs is key, and not the power rating of the LED provided by the LED manufacturer.
Keep in mind that the switch-on surge tend to be much higher.
