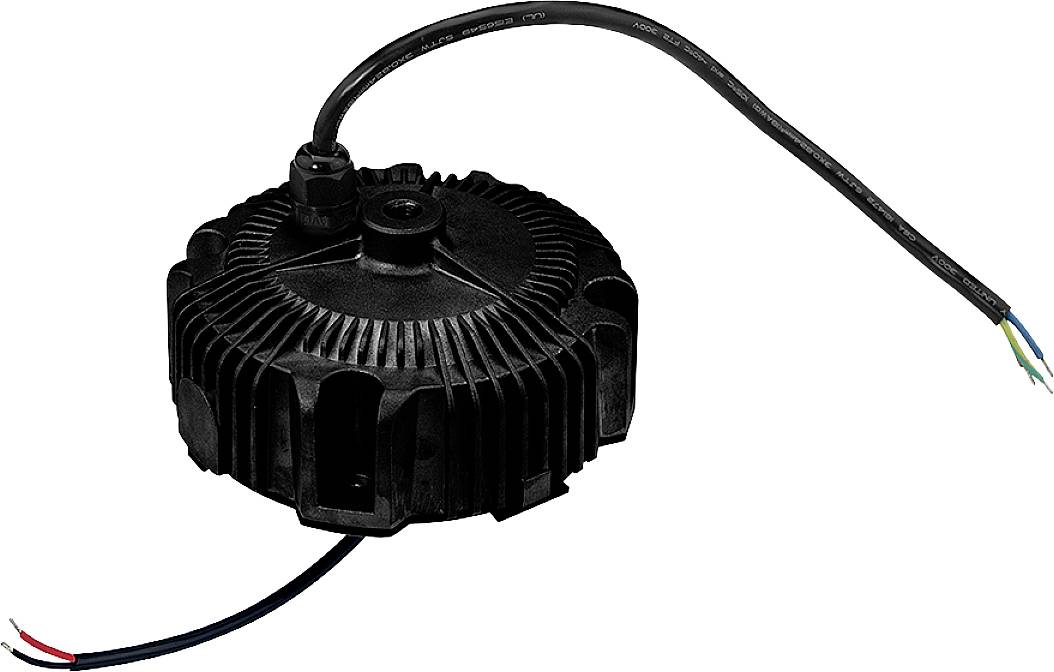

Image similar
MEAN WELL LED driver Constant voltage, Constant current 198 W 1.98 - 3.3 A 36 - 60 V DC Outdoor, PFC circuit, adjustable
EAN:
Part number:
Item no:
Datasheet (PDF)
Highlights & Details
MEANWELL LED switched-mode power supply series HBG-200 Metal Case (round) IP65 Single Output CV+CC Power: 200W for LED indoor and industrial lamps
- Constant voltage, Constant current
- 36 - 60 V DC
- 1.98 - 3.3 A
Technical specifications
- Product type
LED driver
- Type
Constant voltage
Constant current
- Dim
(L x W x H) 132 x 132 x 66.5 mm
- Factory colour
Black (anodised)
- Output voltage (max.)
60 V DC
- Output voltage (min.)
36 V DC
- Test mark
SELV, UL, EAC, CB
- Max. output current
3.3 A
- Output current (max.) - rounded
3.3 A
- Operating voltage
230 V AC
115 V AC
- Protection class
I
- LED driver features
Outdoor
PFC circuit
adjustable
Overvoltage
Surge protection
not dimmable
IP65
- Connection
Open end cable
- Max. power
198 W
- No. of outputs
1 x
- Output current (min.)
1.98 A
- Input voltage (max.)
305 V AC
431 V DC
- Min. input voltage
90 V AC
127 V DC
- Weight
1530 g
- Power range
198 W (max)
- Type
Pulsed
- Width
132 mm
- Height
66.5 mm
- Length
132 mm
- Max. temperature
+85 °C
- Min. temperature
-40 °C
- UKCA
yes
Compliance & Certifications
Certified by EU Garan
Documents & Downloads
Datasheet
Datasheet 2246161 MEAN WELL LED driver Constant voltage, Constant current 198 W 1.98 - 3.3 A 36 - 60 V DC Outdoor, PFC circuit, adjustable
User & Safety Instructions
User & Safety Instructions 2246161 MEAN WELL LED driver Constant voltage, Constant current 198 W 1.98 - 3.3 A 36 - 60 V DC Outdoor, PFC circuit, adjustable
Warranty Terms
Warranty Terms 2246161 MEAN WELL LED driver Constant voltage, Constant current 198 W 1.98 - 3.3 A 36 - 60 V DC Outdoor, PFC circuit, adjustable
Description
Features
- Adjustable via internal potentiometer
- Independant operating device
- Round design, cast aluminum housing, IP65
- Universal input
- Overload protection through current limitation, auto recovery
- Protected against short circuit, overload, overvoltage
- Built-in PFC circuit
- for LED and lighting applications
Hints
Caution!
Make sure you pick an LED driver/transformer that comes with the appropriate power rating.
Choose a driver/transformer that supplies approx. 30 pecent more watttage, as the current consumption (i.e. amperage) of the LEDs is key, and not the power rating of the LED provided by the LED manufacturer.
Keep in mind that the switch-on surge tend to be much higher.
