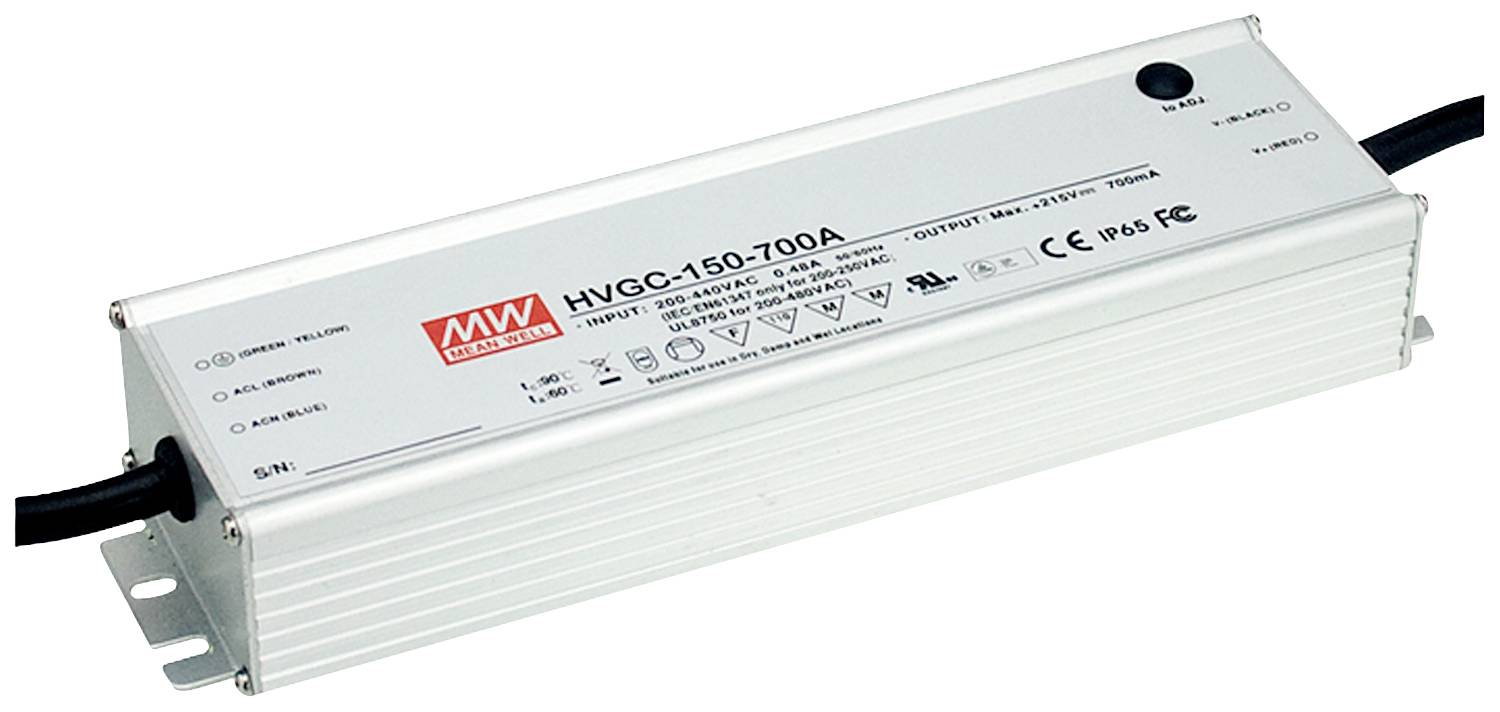

Image similar
MEAN WELL LED transformer 149.8 W 1.4 A 12 - 107 V dimmable 1 pc(s)
EAN:
Part number:
Item no:
Datasheet (PDF)
Highlights & Details
SNT IP67 149.8W 12-107V/1400mA CC dim.
- 12 - 107 V
- 1.4 A
Technical specifications
- Product type
LED transformer
- Dim
(L x W x H) 245 x 68 x 38.8 mm
- Output voltage (max.)
107 V
- Output voltage (min.)
12 V
- Test mark
TÜV; MM-Zeichen; FCC
- Max. output current
1.4 A
- Output current (max.) - rounded
1.4 A
- Protection class
I
- LED driver features
dimmable
IP67
- Connection
Braid
- Max. power
149.8 W
- No. of outputs
1 x
- Input voltage (max.)
747 V DC
528 V AC
- Min. input voltage
254 V DC
180 V AC
- Weight
1240 g
- Power range
149.8 W (max)
- Width
68 mm
- Height
38.8 mm
- Length
245 mm
- Max. temperature
+80 °C
- Min. temperature
-40 °C
Compliance & Certifications
Certified by EU Garan
Documents & Downloads
Datasheet
Datasheet 2900713 MEAN WELL LED transformer 149.8 W 1.4 A 12 - 107 V dimmable 1 pc(s)
User & Safety Instructions
User & Safety Instructions 2900713 MEAN WELL LED transformer 149.8 W 1.4 A 12 - 107 V dimmable 1 pc(s)
Warranty Terms
Warranty Terms 2900713 MEAN WELL LED transformer 149.8 W 1.4 A 12 - 107 V dimmable 1 pc(s)
Description
Hints
Caution!
Make sure you pick an LED driver/transformer that comes with the appropriate power rating.
Choose a driver/transformer that supplies approx. 30 pecent more watttage, as the current consumption (i.e. amperage) of the LEDs is key, and not the power rating of the LED provided by the LED manufacturer.
Keep in mind that the switch-on surge tend to be much higher.
