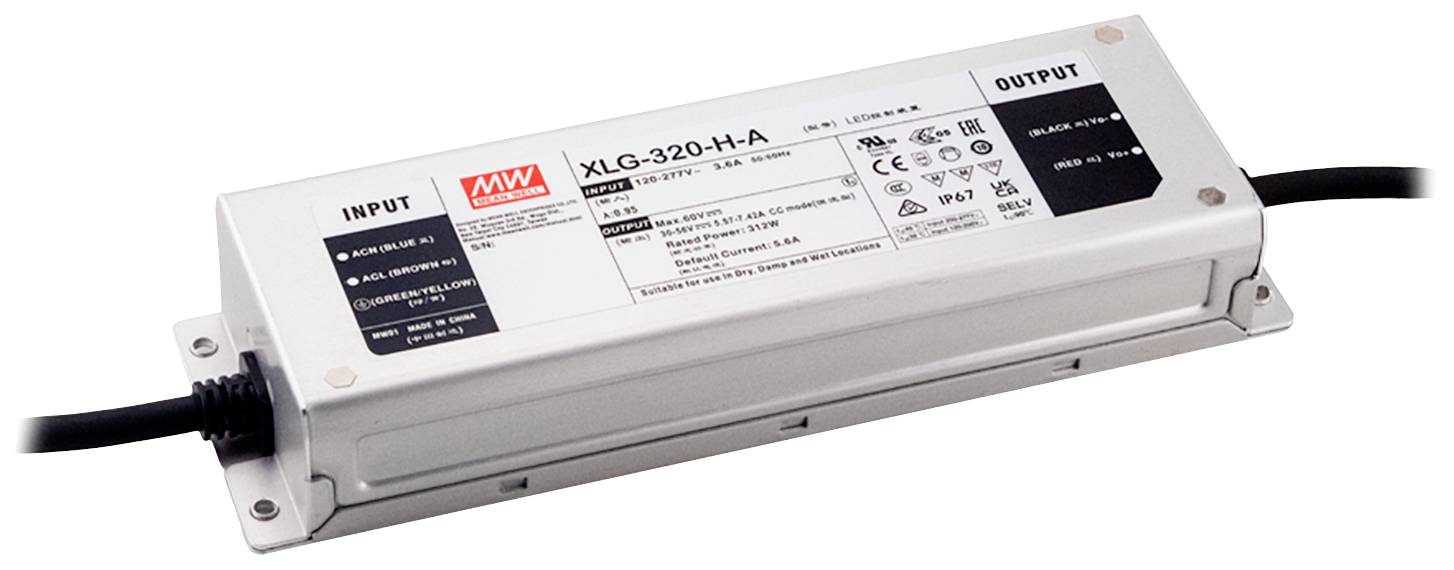

Image similar
MEAN WELL LED transformer 312 W 2.8 A 30 - 56 V not dimmable 1 pc(s)
EAN:
Part number:
Item no:
Datasheet (PDF)
Highlights & Details
LED-SNT 312W 30-56V 55.7-5.6A CP
- 30 - 56 V
- 2.8 A
Technical specifications
- Product type
LED transformer
- Dim
(L x W x H) 246 x 77 x 39.5 mm
- Output voltage (max.)
56 V
- Output voltage (min.)
30 V
- Test mark
SELV
- Protection class
I
- LED driver features
not dimmable
IP67
- Connection
Braid
- Max. power
312 W
- No. of outputs
1 x
- Output current (min.)
2.8 A
- Input voltage (max.)
431 V DC
305 V AC
- Min. input voltage
142 V DC
100 V AC
- Weight
1450 g
- Power range
312 W (max)
- Width
77 mm
- Height
39.5 mm
- Length
246 mm
- Max. temperature
+85 °C
- Min. temperature
-40 °C
Compliance & Certifications
Certified by EU Garan
Documents & Downloads
Datasheet
Datasheet 2900658 MEAN WELL LED transformer 312 W 2.8 A 30 - 56 V not dimmable 1 pc(s)
User & Safety Instructions
User & Safety Instructions 2900658 MEAN WELL LED transformer 312 W 2.8 A 30 - 56 V not dimmable 1 pc(s)
Warranty Terms
Warranty Terms 2900658 MEAN WELL LED transformer 312 W 2.8 A 30 - 56 V not dimmable 1 pc(s)
Description
Hints
Caution!
Make sure you pick an LED driver/transformer that comes with the appropriate power rating.
Choose a driver/transformer that supplies approx. 30 pecent more watttage, as the current consumption (i.e. amperage) of the LEDs is key, and not the power rating of the LED provided by the LED manufacturer.
Keep in mind that the switch-on surge tend to be much higher.
