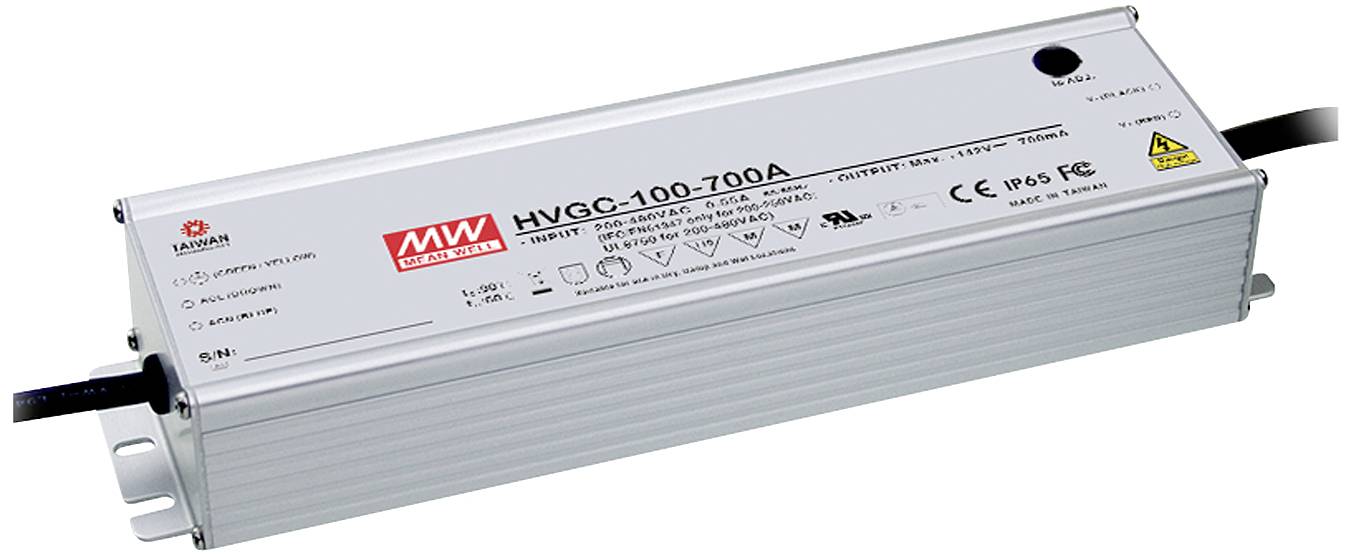

Image similar
MEAN WELL LED transformer 99.75 W 350 mA 29 - 285 V dimmable 1 pc(s)
EAN:
Part number:
Item no:
Datasheet (PDF)
Highlights & Details
SNT IP67 99.75W 29-285V/350mA cc DIMM.
- 29 - 285 V
- 350 mA
Technical specifications
- Product type
LED transformer
- Dim
(L x W x H) 236 x 68 x 38.8 mm
- Output voltage (max.)
285 V
- Output voltage (min.)
29 V
- Test mark
TÜV; MM-Zeichen; FCC
- Max. output current
350 mA
- Output current (max.) - rounded
350 mA
- Protection class
I
- LED driver features
dimmable
IP67
- Connection
Braid
- Max. power
99.75 W
- No. of outputs
1 x
- Input voltage (max.)
747 V DC
528 V AC
- Min. input voltage
254 V DC
180 V AC
- Weight
1180 g
- Power range
99.75 W (max)
- Width
68 mm
- Height
38.8 mm
- Length
236 mm
- Max. temperature
+90 °C
- Min. temperature
-40 °C
Compliance & Certifications
Certified by EU Garan
Documents & Downloads
Datasheet
Datasheet 2900703 MEAN WELL LED transformer 99.75 W 350 mA 29 - 285 V dimmable 1 pc(s)
User & Safety Instructions
User & Safety Instructions 2900703 MEAN WELL LED transformer 99.75 W 350 mA 29 - 285 V dimmable 1 pc(s)
Warranty Terms
Warranty Terms 2900703 MEAN WELL LED transformer 99.75 W 350 mA 29 - 285 V dimmable 1 pc(s)
Description
Hints
Caution!
Make sure you pick an LED driver/transformer that comes with the appropriate power rating.
Choose a driver/transformer that supplies approx. 30 pecent more watttage, as the current consumption (i.e. amperage) of the LEDs is key, and not the power rating of the LED provided by the LED manufacturer.
Keep in mind that the switch-on surge tend to be much higher.
