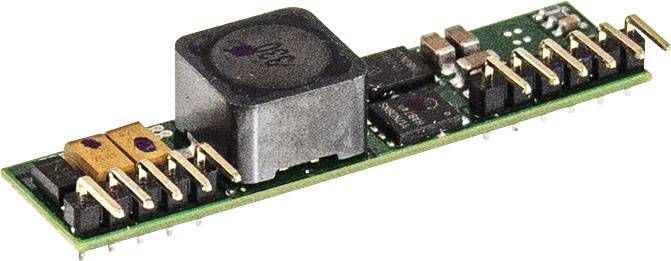

MEAN WELL NID35-12 DC/DC converter 2.9 A 34.8 W No. of outputs: 1 x Content 1 pc(s)
EAN:
Part number:
Item no:
Datasheet (PDF)
Quantity (Piece(s))
Savings
Package size (plus VAT.)
1
-
€ 10.92
3
6% = € 0.61
€ 10.31
Volume discounts vary depending on the seller
You save € 0.00
Number
Total (€ 10.92 / piece)
€ 10.92
plus VAT.
Only 7 Piece(s) available
Highlights & Details
Meanwell DC/DC converter series NID35 Open-frame Single Output Non-Isolated Power: 35W
- Open type (open frame)
- Wide input voltage range
- High efficiency up to 96%
- Switching the output voltage on and off via remote signal
- For direct PCB mounting
- Protected against short circuit, overload, overvoltage
- Cooling by free air convection
- Meets the EN55032 ClassA without additional components
- This text is machine translated.
Technical specifications
- Product type
DC/DC converter
- Type
NID35-12
- Min. input voltage
20 V DC
- Input voltage (max.)
53 V DC
- No. of outputs
1 x
- Max. output current
2.9 A
- Output current (max.) - rounded
2.9 A
- Efficiency (max.)
95 %
34.8 W
- Connection
Pins
- PSU features
DC-to-DC converter
- Operating temperature (min.)
-30 °C
- Operating temperature (max.)
+85 °C
- Dim
(L x W x H) 50.8 x 13 x 11 mm
- Height
11 mm
- Length
50.8 mm
- Width
13 mm
- Output voltage (max.)
12 V DC
- Weight
9 g
- Content
1 pc(s)
Documents & Downloads
Datasheet
Datasheet 2176638 MEAN WELL NID35-12 DC/DC converter 2.9 A 34.8 W No. of outputs: 1 x Content 1 pc(s)
User & Safety Instructions
User & Safety Instructions 2176638 MEAN WELL NID35-12 DC/DC converter 2.9 A 34.8 W No. of outputs: 1 x Content 1 pc(s)
Warranty Terms
Warranty Terms 2176638 MEAN WELL NID35-12 DC/DC converter 2.9 A 34.8 W No. of outputs: 1 x Content 1 pc(s)
Description
Features
- Open type (open frame)
- Wide input voltage range
- High efficiency up to 96%
- Switching the output voltage on and off via remote signal
- For direct PCB mounting
- Protected against short circuit, overload, overvoltage
- Cooling by free air convection
- Meets the EN55032 ClassA without additional components
